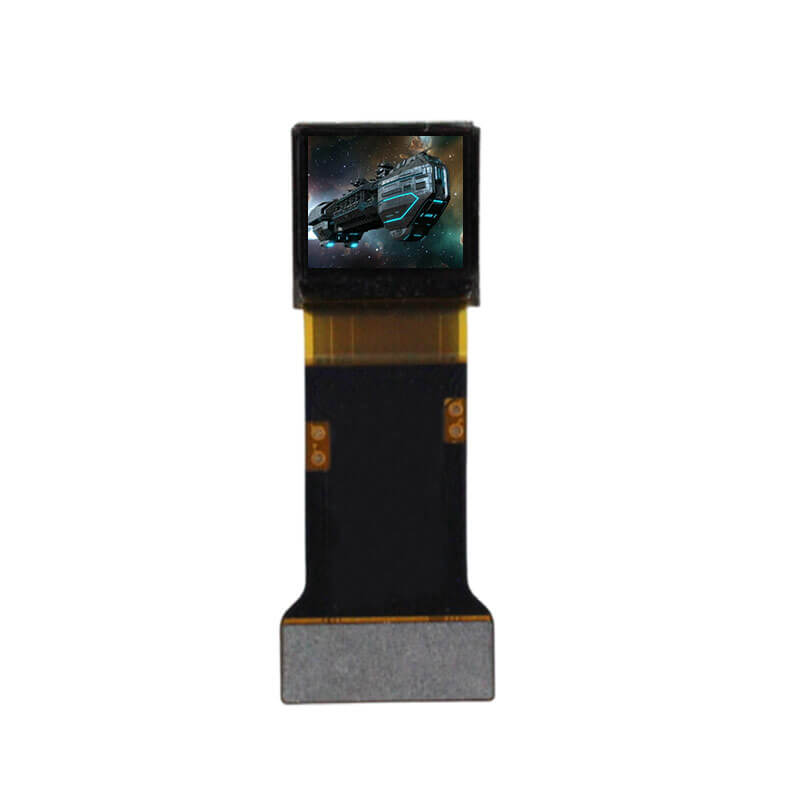

SY050WGM01 0.5 Inch Micro OLED Display 1600×1200 MIPI 1000nits High Brightness OLED Display For EVF AR Red Dot Sight Display Solutions Overview

SY050WGM01 is a 0.50 inch diagonal Si-OLED display panel , it self emiting, without touch screen. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -40 ~ 80°C . It's general features are summarized in the following: DCI-P3, sRGB, 120Hz, Landscape / Portrait, Ultra High Brightness, 8/10 bit.

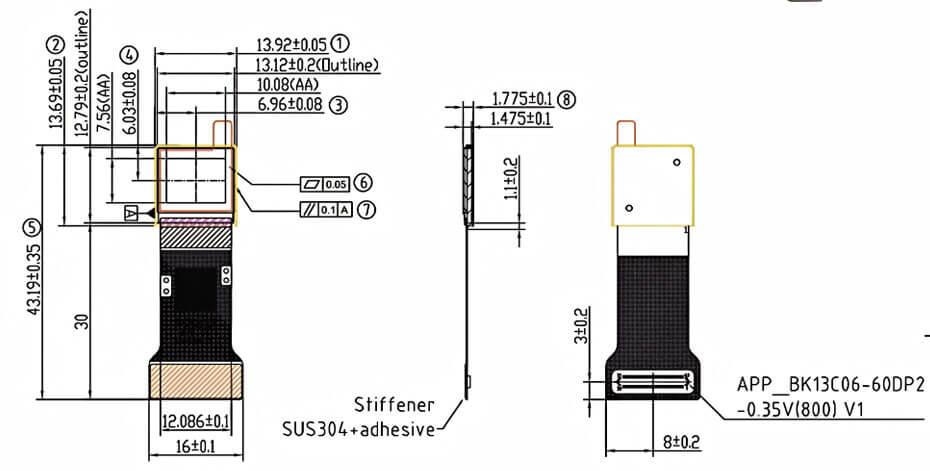

SY050WGM01 0.5 Inch Micro OLED Display 1600×1200 MIPI 1000nits High Brightness OLED Display For EVF AR Red Dot Sight Display Solutions Drawing

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
