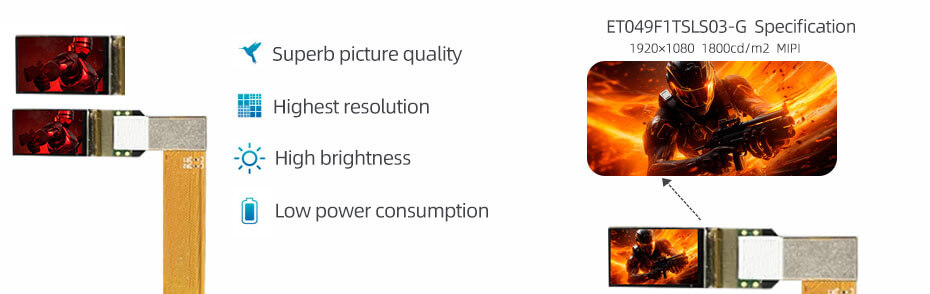

0.49 Inch Micro OLED Display 1920×1080 MIPI 1800nits High Brightness OLED Display With Type-c Driver Board For EVF AR Red Dot Sight Display Solutions Overview

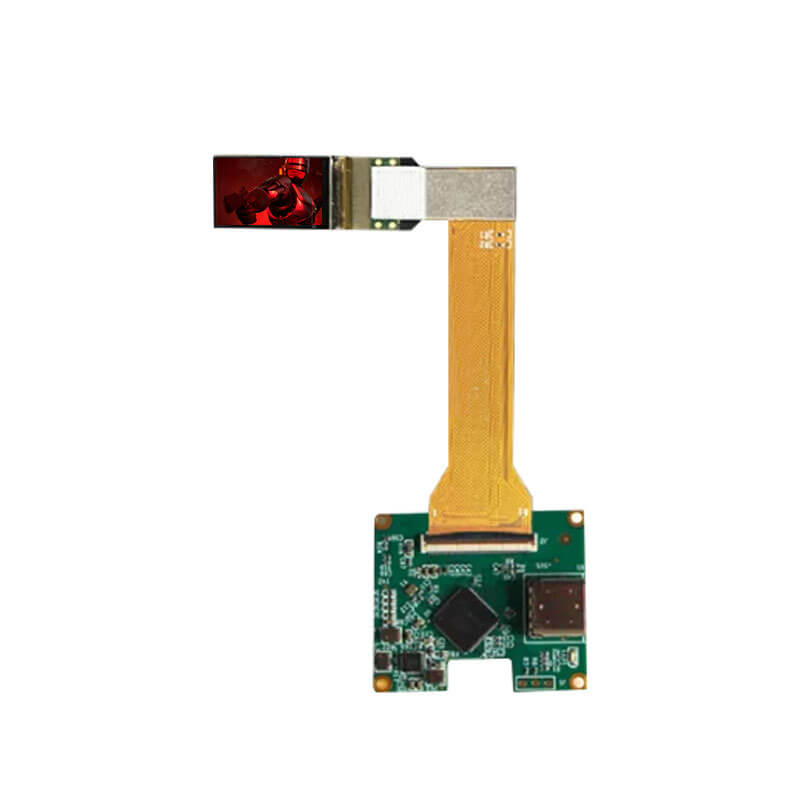

ET049F1TSLS03-G is a 0.49-inch diagonal Si-OLED micro display product with self-emitting technology. It supports 1920×1080 (FHD) resolution with an aspect ratio of 16:9 (W:H), whose pixels are arranged in Sub-Pixel Rendering, delivering ultra-high pixel density for sharp and vivid image quality. It features an active area of 10.78(W) × 6.07(H) mm and adopts a MIPI interface for high-speed data transmission and stable signal performance. The display can provide 1800 cd/m² brightness, ensuring excellent visibility even in bright ambient environments. Designed for reliable performance in harsh conditions, it supports an operating temperature range of -20°C to 70°C and a storage temperature range of -40°C to 80°C. Combined with a Type-C driver board, the ET049F1TSLS03-G is an ideal display solution for EVF (Electronic Viewfinder), AR devices, and Red Dot Sight applications.

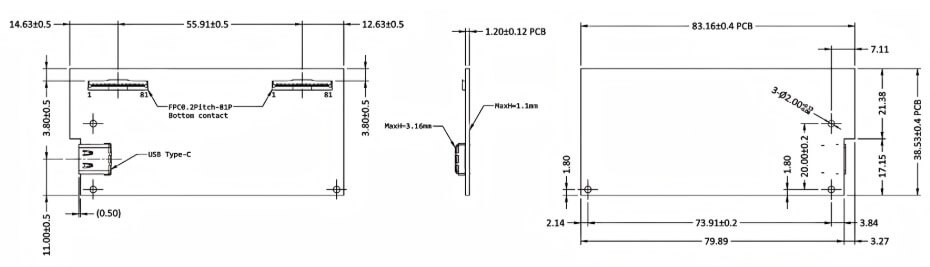

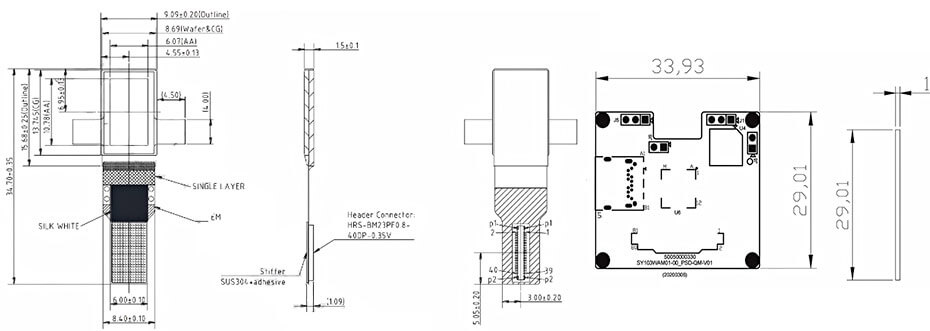

0.49 Inch Micro OLED Display 1920×1080 MIPI 1800nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Drawing

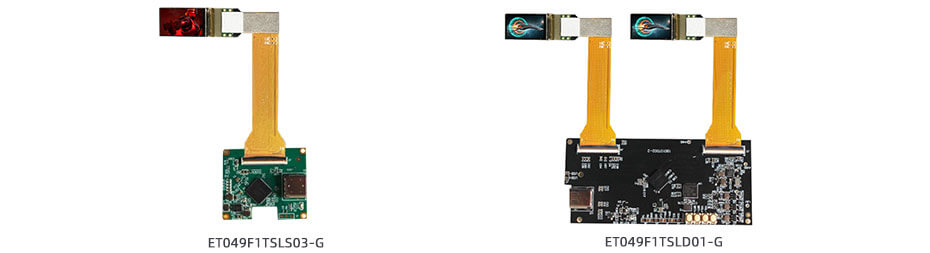

0.49 Inch Micro OLED Display Solution For Reference
ET049F1TSLS03-G
ET049F1TSLD01-G

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
