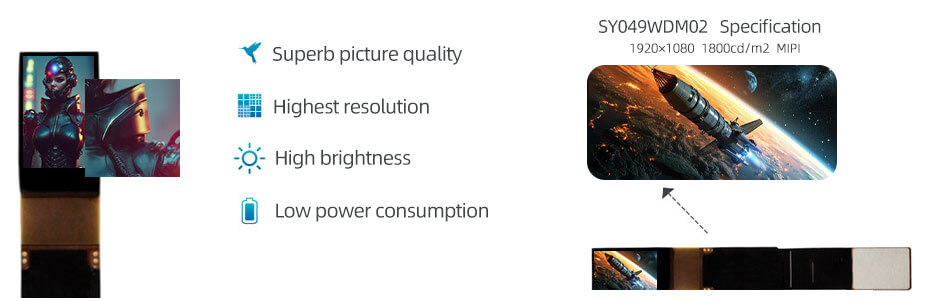

SY049WDM02 0.49 Inch Micro OLED Display 1920×1080 MIPI High Brightness 1800nits OLED Display With Long Cable For EVF AR Red Dot Sight Display Solutions Overview

SY049WDM02 is a 0.49 inch diagonal Si-OLED display panel, it self emiting. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -40 ~ 80°C . It's general features are summarized  in the following: DCI-P3, sRGB, Landscape / Portrait, Ultra High Brightness, U/D,L/R Reverse, 8/10 bit , FPC length 46.04mm, Support scaling up 1.33x(e.g., 1440x810 to 1920x1080), 1.5x (e.g., 1280x720 to 1920x1080) and 2x (e.g., 960x540 to 1920x1080). Based on its features, Youritech recommend that this model be applied to HMD VR AR etc.

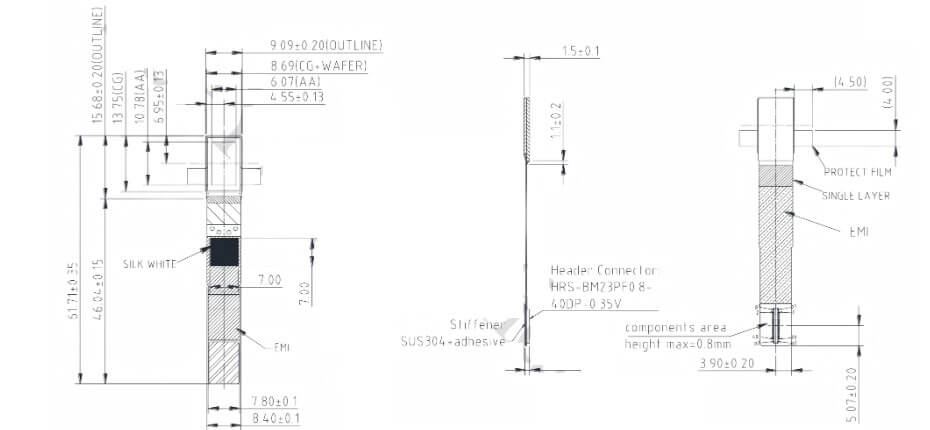

SY049WDM02 0.49 Inch Micro OLED Display 1920×1080 MIPI High Brightness 1800nits OLED Display With Long Cable For EVF AR Red Dot Sight Display Solutions Drawing

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
