0.49 Inch Micro OLED Display 1920×1080 MIPI High Brightness 1800nits OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Overview

ET049F1CSFS02-G is a 0.49-inch diagonal Si-OLED display product with self-emissive technology. It supports 1920×1080 (FHD) resolution with a 16:9 aspect ratio (W:H), whose pixels are arranged in Sub-Pixel Rendering, achieving an ultra-high pixel density of 3692 PPI. It features an active area of 10.78(W) × 6.07(H) mm and adopts a MIPI interface for stable and efficient signal transmission. ET049F1CSFS02-G provides 1800 cd/m² high brightness, delivering excellent image clarity, vivid colors, high contrast, and fast response performance. Designed for EVF, AR, and red dot sight display solutions, it ensures outstanding visibility in high ambient light environments. The module supports an operating and storage temperature range of -20°C to 70°C, making it suitable for industrial and outdoor applications.

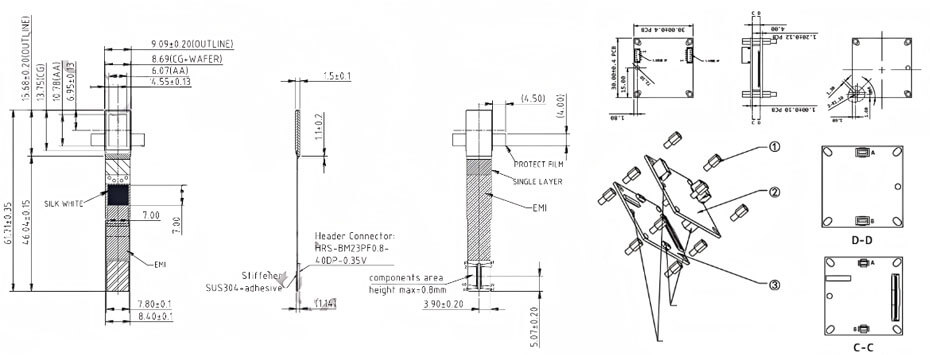

0.49 Inch Micro OLED Display 1920×1080 MIPI High Brightness 1800nits OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Drawing

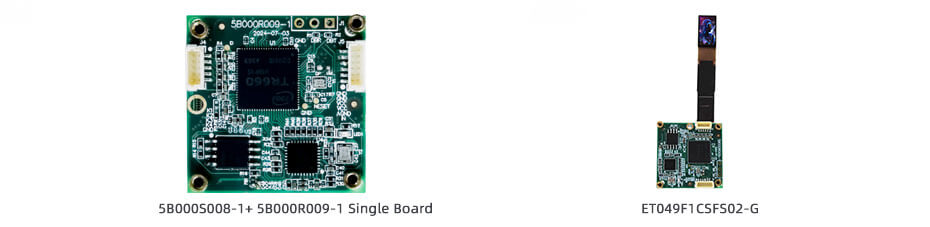

0.49 Inch Micro OLED Display Solution For Reference

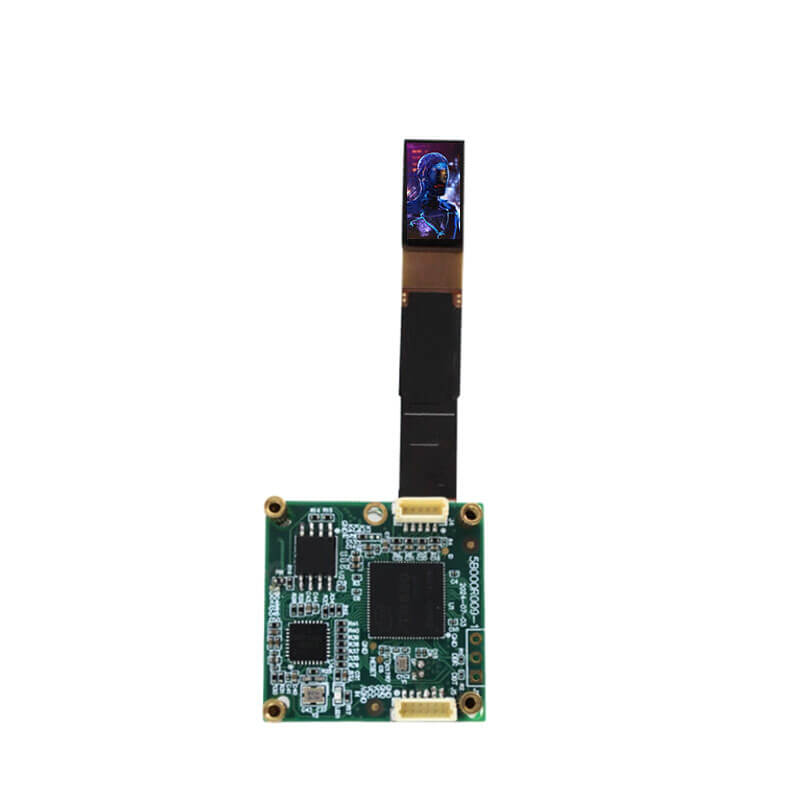

ET049F1CSFS02-G
5B000S008-1+ 5B000R009-1 driver board

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
