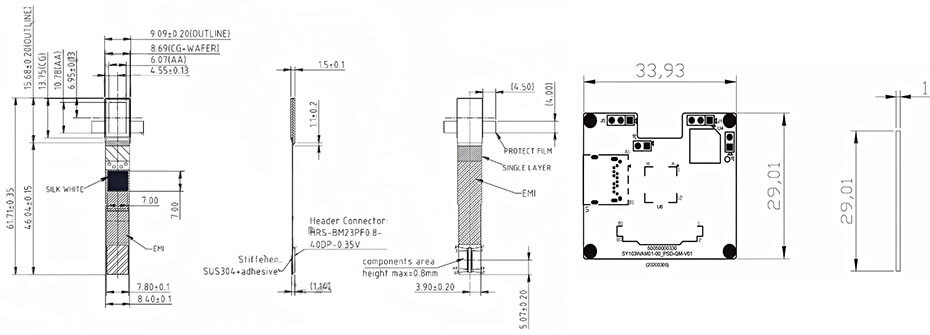

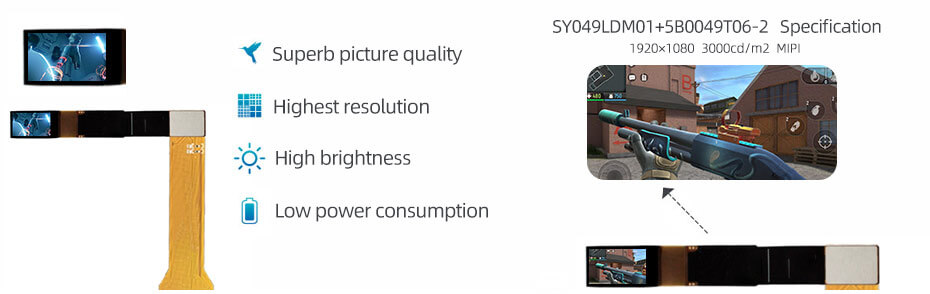

SY049LDM01 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in Sub-Pixel Rendering, it's pixel density is 3692 PPI. As for mechanical detail, it features active area of 10.783(W)×6.065(H) mm, outline size of 15.68(W)×9.09(H)×1.6(D) mm, net weight of 1.00g (Max.). SY049LDM01 can provides 3000 cd/m² display brightness 50000:1 transimissive contrast ratio, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit / 10-bit gray scale signal for each dot, thus presenting a palette of 16.7M/1.07B colors, also with performance of color gamut 102% (NTSC). This product emiting itself . SY049LDM01 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 40 pins Connector. It's typical vertical frame rate (Fv) is 90Hz.
Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection
