0.49 Inch Micro OLED Display 1920×1080 MIPI 1800nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Overview

ET049F1TSLD02-G is a 0.49-inch Si-OLED micro display featuring 1920×1080 (FHD) resolution, 16:9 aspect ratio, and an ultra-high pixel density of 3692 PPI. With an active area of 10.78 × 6.07 mm and MIPI interface, it delivers 1800 cd/m² high brightness, vivid colors, high contrast, and fast response performance. Designed for EVF, AR devices, and red dot sight applications, this self-emissive micro OLED module ensures excellent image clarity and outdoor visibility, while supporting an operating temperature range of -20°C to 70°C and storage temperatures of -40°C to 80°C for reliable industrial and outdoor use.

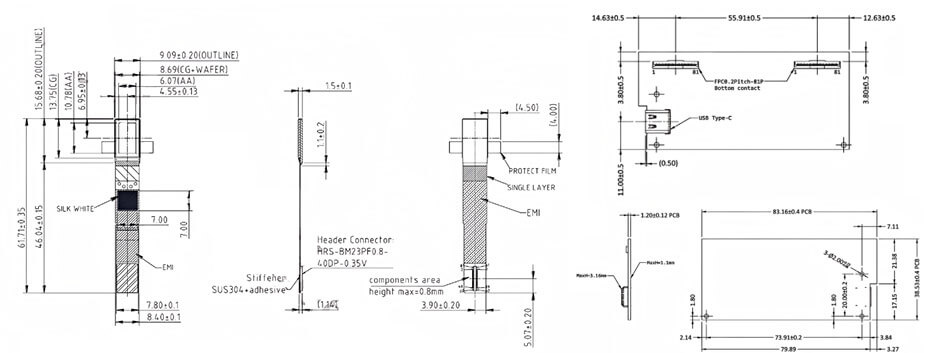

0.49 Inch Micro OLED Display 1920×1080 MIPI 1800nits High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Drawing

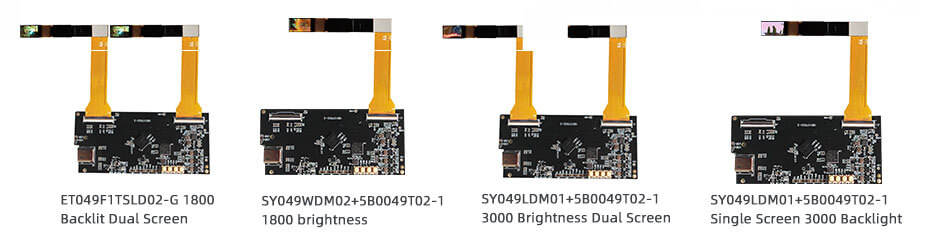

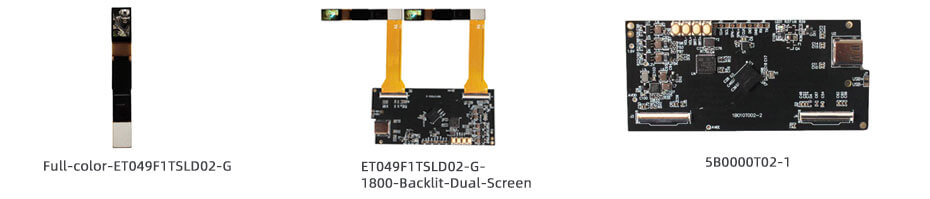

0.49 Inch Micro OLED Display Solution For Reference

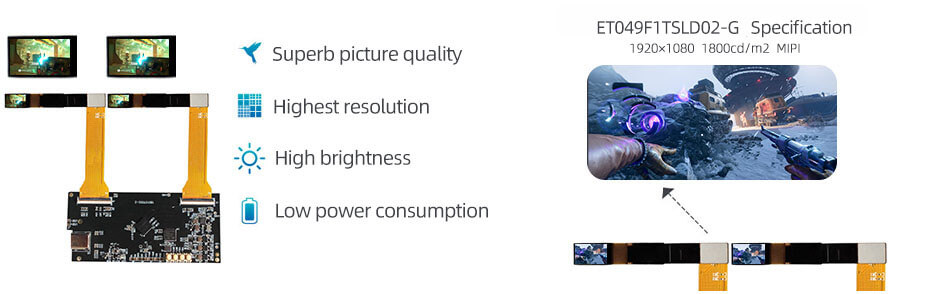

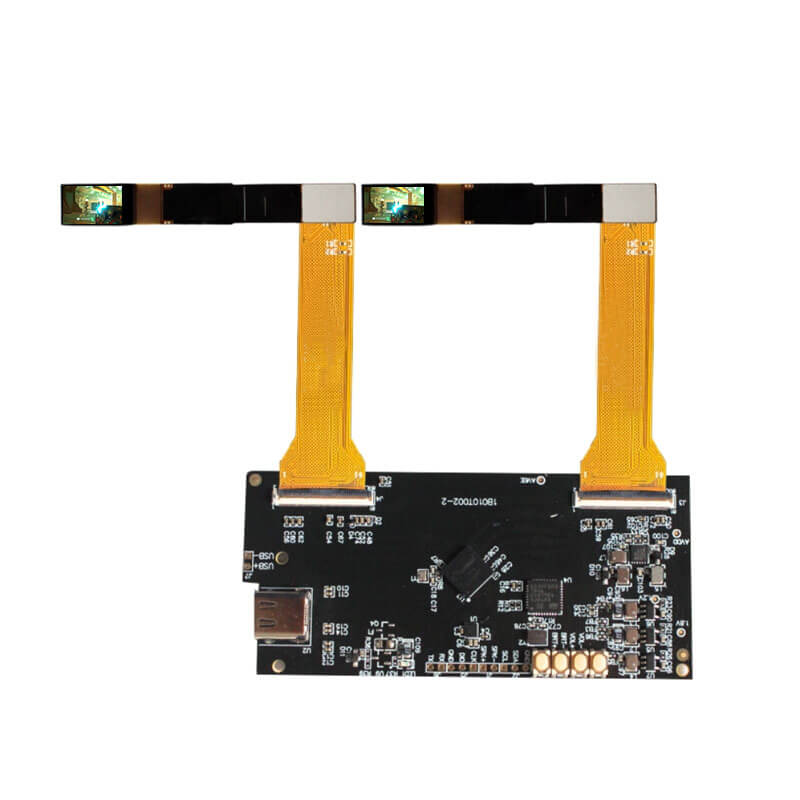

ET049F1TSLD02-G Dual Screen(1800nits)
SY049WDM02+5B0049T02-1(1800nits)
SY049LDM01+5B0049T02-1(3000nits)
SY049LDM01+5B0049T02-1(3000nits)

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
