Overview
P236RVN01.0 supports display 848(RGB)×848 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 600.384(W)×600.384(H) mm, outline size of 663.781(W)×663.781(H)×27.43(D) mm, viewing area size of 604.384(W)×604.384(H) mm, with surface treament of Antiglare (Haze 28%), Hard coating (3H), net weight of TBD. As a AMVA3, Normally Black, Transmissive LCM product, P236RVN01.0 can provides 700 cd/m² display brightness 4000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms.
Feature
-All O'clock
-Sunlight Readable
-WLED Backlight
Screen Size:23.6 inch
Resolution:848x848
Brand:AUO

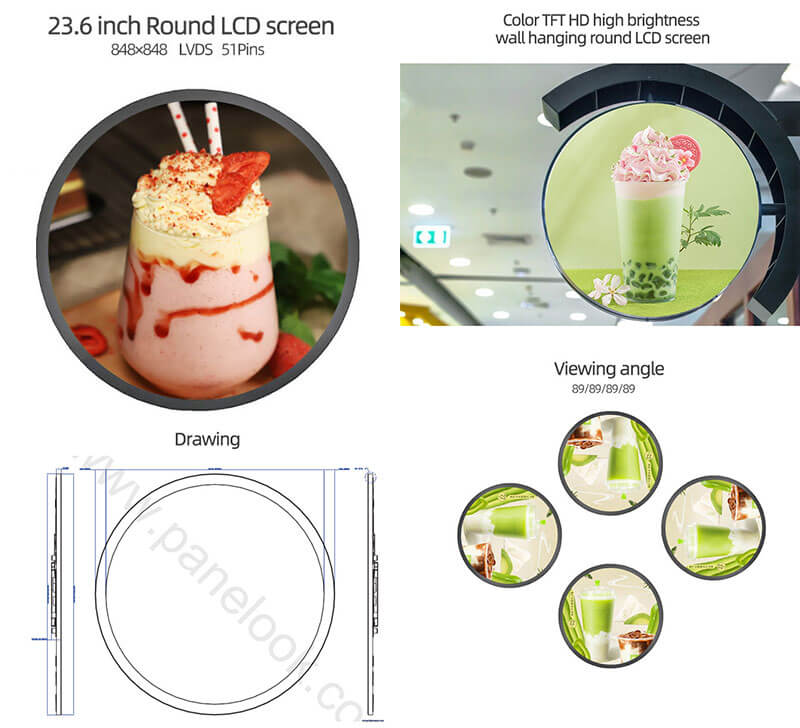

23.6 Inch Circular Display 848x848 Sunlight Readable Round LCD.
Application
For Digital Signage.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
