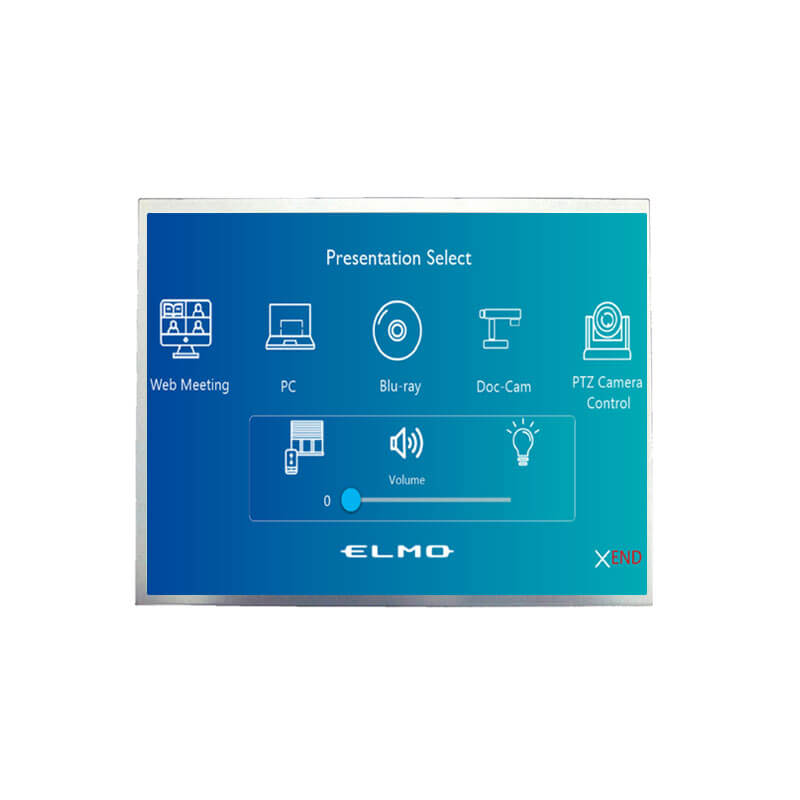

P1060WXF1MA00 Tianma 10.6 Inch TFT LCD Display 1280x768 LVDS Interface Ultra High Brightness IPS Wide Temperature LCD Panel

  • Part No.:P1060WXF1MA00
  • Size:10.6″ inch
  • Resolution:1280x768
  • Panel Interface:LVDS (1 ch,6/8-bit
  • Display mode:SFT,Transmissive
  • Outline Dimension:250(W)x157(H)x9.4(D)mm

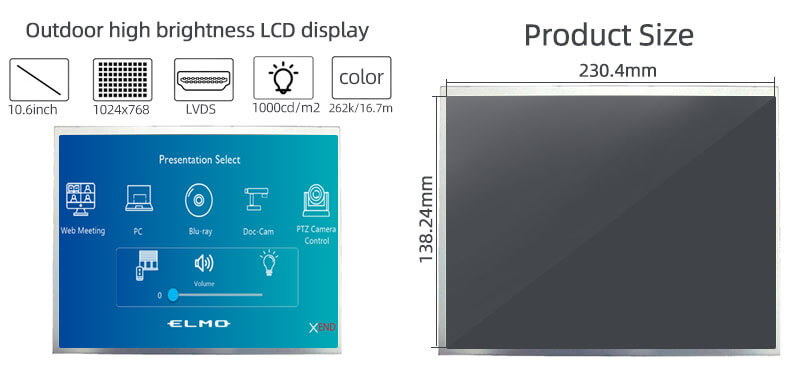

  • Active Area:230.4(W)x138.24(H)mm
  • Viewing Angle L/R/U/D:88/88/88/88
  • Brightness(cd/m2):1000cd/m²(Typ.)
  • Operation / Storage Temp:-30~80°C / -30~80°C
  • Touch:no

P1060WXF1MA00 Overview
P1060WXF1MA00 supports display 1280(RGB)×768 (WXGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 230.4(W)×138.24(H) mm, outline size of 250(W)×157(H)×9.4(D) mm, viewing area size of 234.4(W)×141.24(H) mm, with surface treament of Clear, net weight of TBD. As a SFT, Normally Black, Transmissive LCM product, P1060WXF1MA00 can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC).

Feature
IPS
Wide Temperature
Ultra High Brightness 1000cd/m2
WLED Backlight
Life ≥ 50K hours
180° Reverse 6/8 bit

Application
For Outdoor high brightness,Automotive display,Industrial.
