(5.7")

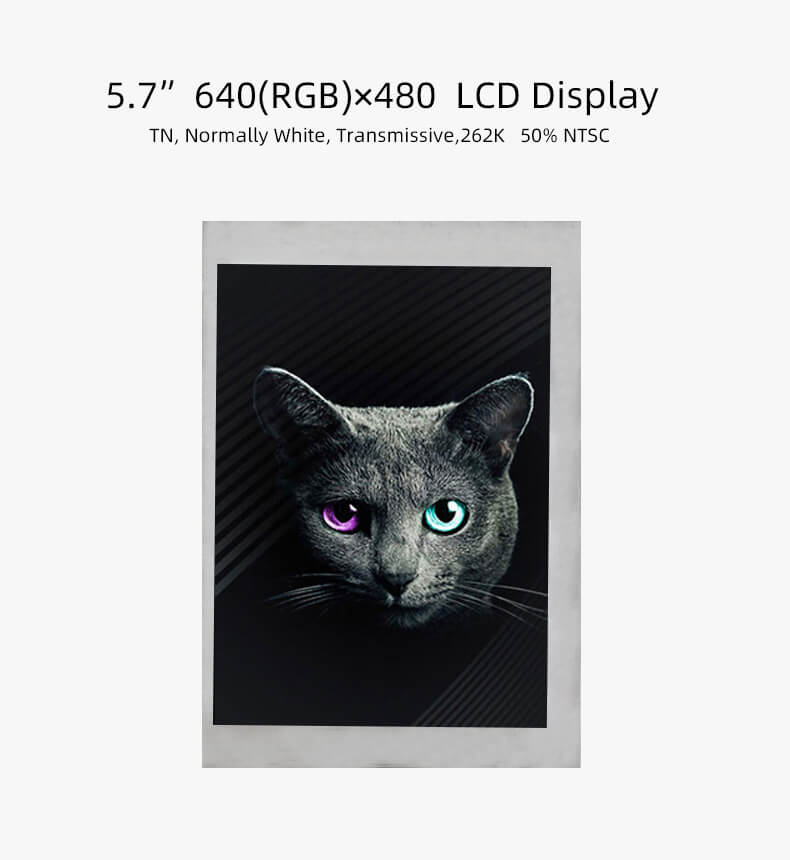

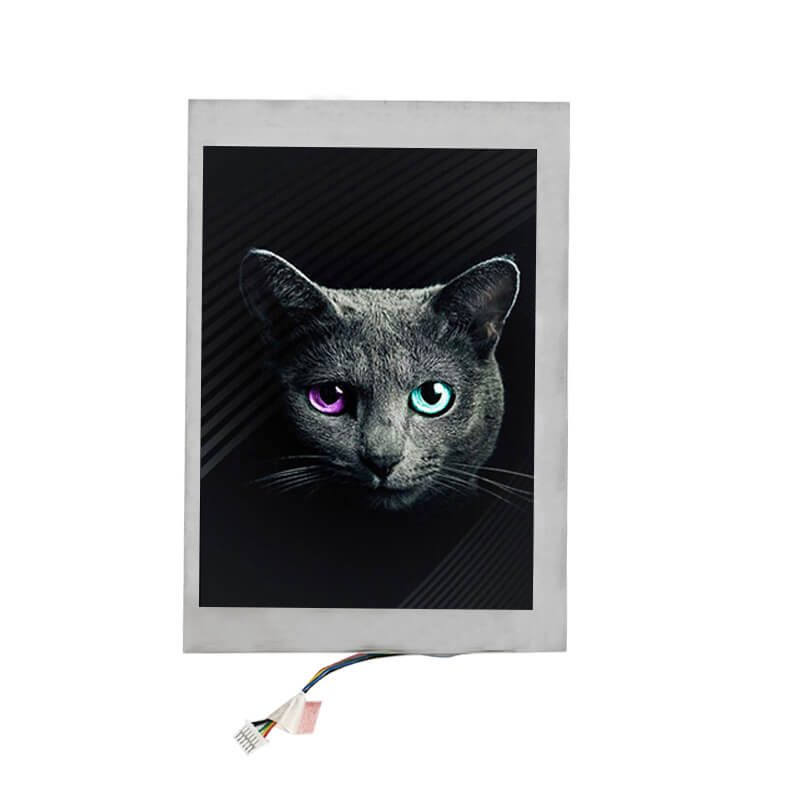

Original TM057QDH01 TIANMA 5.7 Inch 640*480 LCD Display TTL LCD Screen

Part No.:TM057QDH01
Size:5.7″ inch
Resolution:640(RGB)x480
Panel Interface:TTL
Display mode:/
Outline Dimension:/
Active Area:115.2(H)x86.4(V)mm
Viewing Angle L/R/U/D:70/70/70/70
Brightness（cd/m2）:400cd/m2
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

Product Description

Panel Brand	Tianma	Panel Model	TM057QDH01
Panel Size	5.7 inch	Panel Type	a-si TFT-LCD
Resolution	640(RGB)×480	Pixel Format	RGB Vertical Stripe
Display Area	115.2(H)×86.4(V) mm	Luminance	400cd/m2
Bezel Area	/	Outline	/
Viewing Angle	70/70/70/70	Contrast Ratio	500:1
Good View at	-	Response	/
Support Color	-	Touchscreen	-
Weight	-
Power Supply	/
Environment	Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
