5.1"-7" LCD Display (5.7")

5.7 Inch High Brightness Display 1500nits 640x480 MIPI IPS TFT LCD Display With Capacitive Touch

Part No.:ET057VG01-ZT
Size:5.7″ inch
Resolution:640x480
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:127.03x98.5mm
Active Area:115.2x86.4mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:1500(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

5.7 Inch High Brightness LCD Display Overview

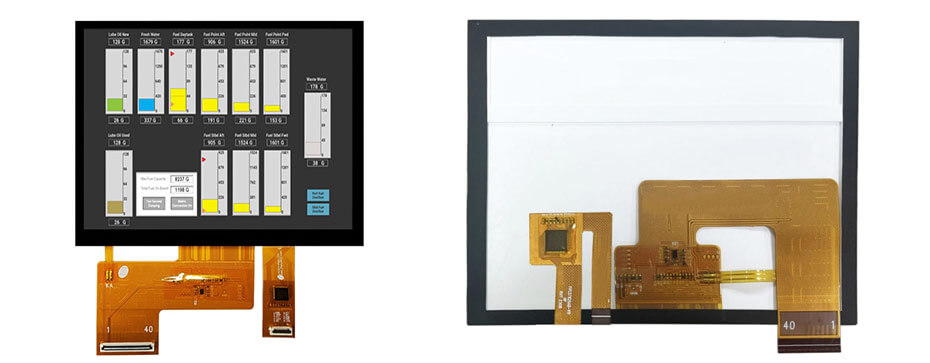

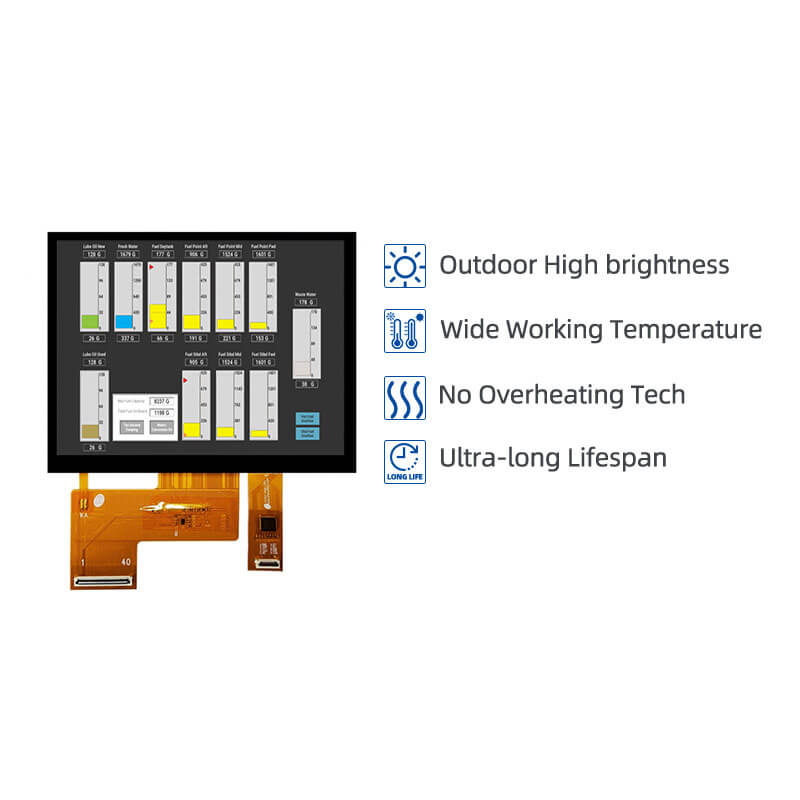

ET057VG01-ZT is a 5.7-inch high-brightness MIPI IPS TFT LCD display with a transmissive display mode. It offers a resolution of 640×480 and a typical brightness of 1500 cd/m². The display features an active area of 115.2 × 86.4 mm and an outline dimension of 127.03 × 98.5 mm. It provides wide viewing angles of 80° left/right/up/down and operates within –20 °C to 70 °C, with storage from –30 °C to 80 °C. This model is equipped with capacitive touch functionality.

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
