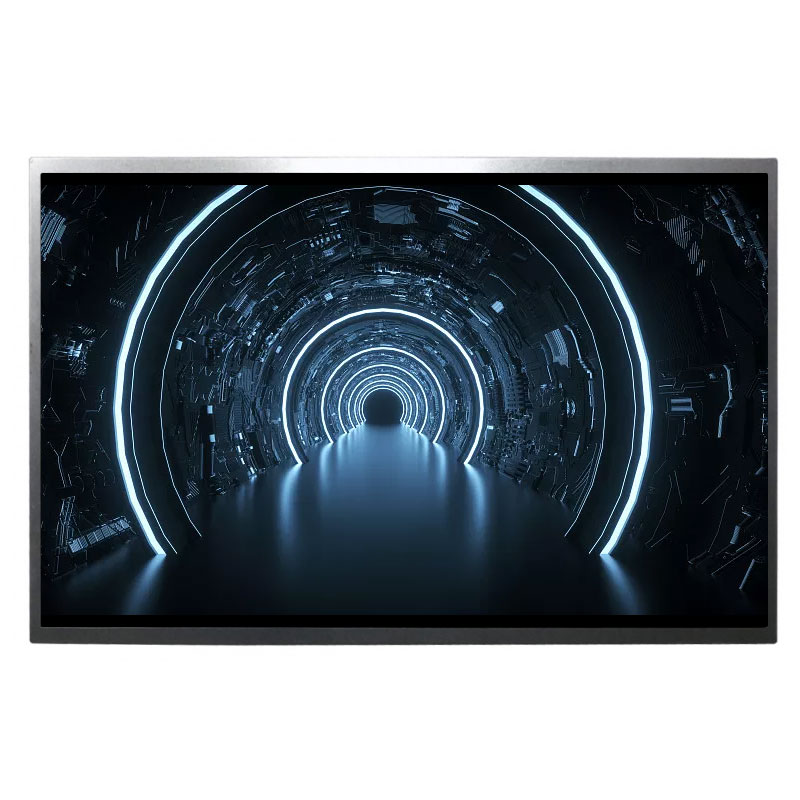

Original New A Grade 19.5 inch LCD Display Module 1440x900 Resolution LCD Panel IPS Display LVDS 30 Pins Interface Screen

  • Part No.:MV195WGM-N10
  • Size:19.5″ inch
  • Resolution:1440x900
  • Panel Interface:LVDS (2 ch,8-bit)
  • Display mode:ADS,Transmissive
  • Outline Dimension:444.22(H)x286.6(V)
  • Active Area:418.608(H)x262.35(V)
  • Viewing Angle L/R/U/D:89/89/89/89 (Typ.)
  • Brightness（cd/m2）:250(Typ.)
  • Operation / Storage Temp:0~50°C / -20~60°C
  • Touch:no
Get a quote

Products Description

MV195WGM-N10-TFT-19.5inch-1MV195WGM-N10-TFT-19.5inch-1440x900-lvds-1440x900-lvds-1

LCD SPECIFICATION
Panel Size 19.5" Panel Type a-Si TFT-LCD
Pixel Number 1440(RGB)×900, WXGA+ Pixel Format RGB Vertical Stripe
Active Area(mm) 418.608(H) × 262.35(V) Outline(mm) 444.22(H) × 286.6(V)
Bezel Area(mm) 422.2(H) × 265.9(V) Backlight Type WLED
Luminance 250 (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Display Mode ADS, Normally Black, Transmissive
Signal Interface LVDS (2 ch, 8-bit)
Display Colors 16.7M (6-bit + Hi-FRC)
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

MV195WGM-N10_01

MV195WGM-N10_02MV195WGM-N10_03
