1.8 Inch Wide Temperature LCD Display 360×360 SPI 30°C to 85°C TFT LCD Display

1.8 Inch Wide Temperature LCD Display Overview

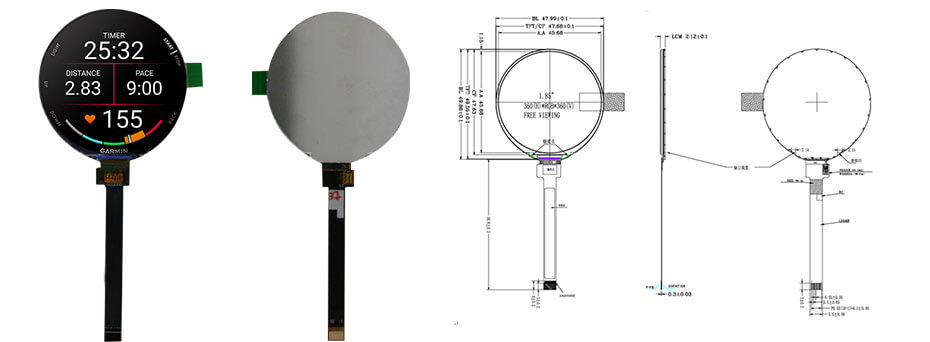

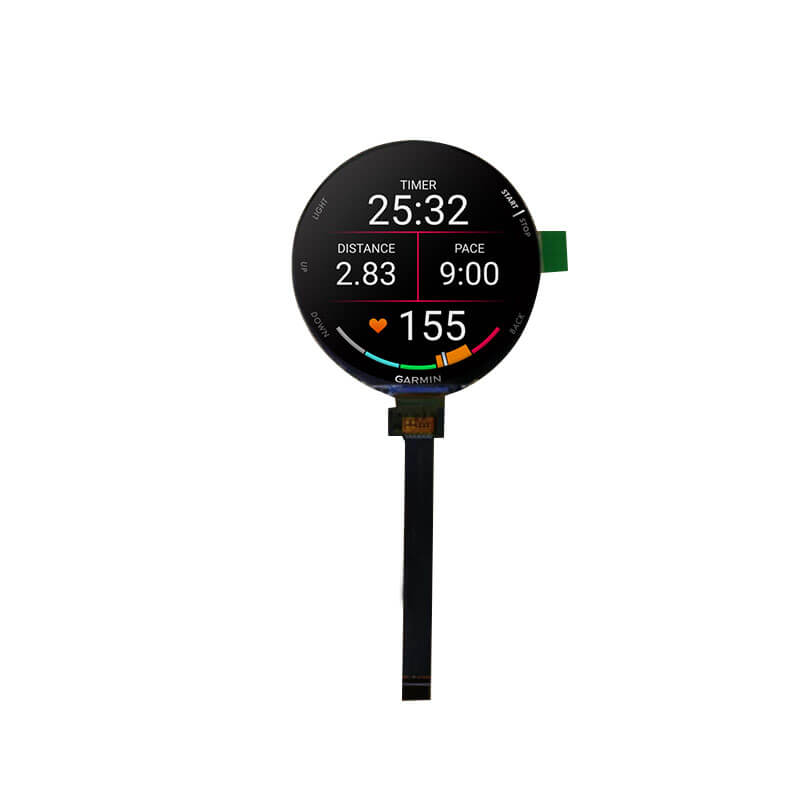

ET018WT01-XH is a 1.8 inch diagonal TFT-LCD display screen product. ET018WT01-XH supports a display resolution of 360×360 with a square aspect ratio, whose pixels are arranged in a standard RGB stripe configuration. It features an active area of 45.68(W) × 45.68(H) mm and an outline dimension of 47.99(W) × 49.86(H) mm. The module adopts a transmissive display mode and supports an SPI interface for communication. ET018WT01-XH provides a typical display brightness of 400 cd/m² and offers a wide viewing angle of 80/80/80/80 (L/R/U/D) for clear visibility from multiple directions. Designed for reliable performance in wide temperature conditions, it supports an operating temperature range of -30°C to 85°C and a storage temperature range of -40°C to 125°C. This display module does not include a touch panel.

More 1.8 Inch Wide Temperature Displays For Reference
ET018WT01-J (PMOLED, 256×32, CPU/SPI/I²C, IPS, 100nits, -40~85°C, 52×34.7 mm)
ET018WT01-XH (LCD, 360×360, SPI, IPS, 400nits, -30~85°C, 47.99×49.86mm)

Wide Temperature Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing
