5.1"-7" LCD Display (7")

Original BOE 7 inch BP070HD1-100 tft LCD screen display 720x1280 LCD display panel H-DMI to MIPI Driver board

Part No.:ET070HD01-B
Size:7″ inch
Resolution:720x1280
Panel Interface:MIPI (4 data lanes)
Display mode:HADS,Normally Black
Outline Dimension:91.264x164.736mm(HxV)
Active Area:87.264x155.136mm(HxV)
Viewing Angle L/R/U/D:89/89/89/89
Brightness（cd/m2）:450cd/m²(Typ.)
Operation / Storage Temp:-20~60°C / -20~60°C
Touch:no

Products Description

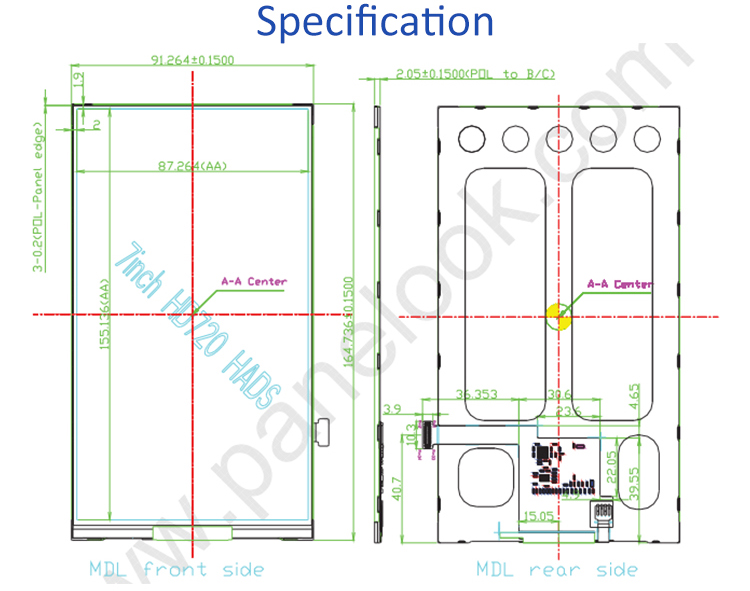

LCD SPECIFICATION
Diagonal Size	7.0 inch	Type	a-Si TFT-LCD, LCM
Pixel Format	720(RGB)×1280 , WXGA	Configuration	RGB Vertical Stripe
Display Area	87.264(W)×155.136(H) mm	Outline Dim.	-
Outline Size	91.264(W)×164.736(H) ×2.2(D) mm	Surface	Hard coating (2H)
Luminance	450 cd/m² (Typ.)	Contrast Ratio	900:1 (Typ.) (TM)
View Direction	Symmetry	Response Time	30 (Typ.)(Tr+Td)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Operating Mode	HADS, Normally Black, Transmissive
Support Color	16.7M 55% NTSC	Light Source	6S3P WLED , 20K hours , Without Driver
Weight	15.0g	Designed For	Pad & Tablet
Frame Rate	51.0g (Typ.)	Touch Panel	Without
Interface Type	MIPI (4 data lanes) , 34 pins Connector
Power Supply	1.8/3.3V (Typ.)(VCC/VDD)
Environment	Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C
