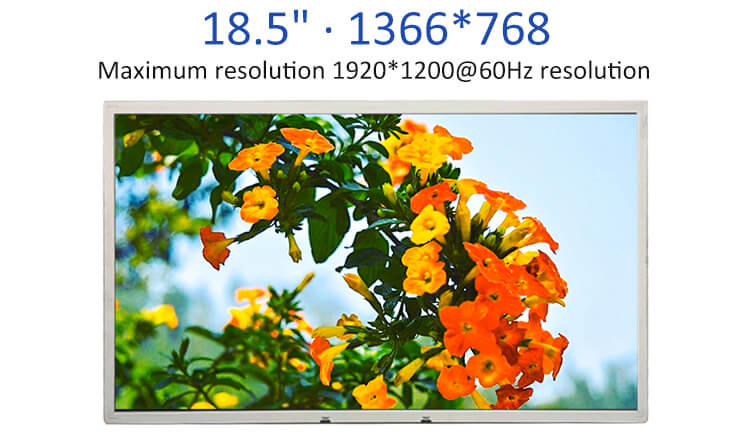

Original 18.5 inch TFT LCD Display 1366x768 LVDS to H-DMI Driver Board For Industrial

Part No.:G185XW01V1
Size:18.5″ inch
Resolution:1366x768
Panel Interface:LVDS (1 ch,8-bit)
Display mode:TN,Transmissive
Outline Dimension:413.4x234.0(HxV)
Active Area:409.8x230.4(HxV)
Viewing Angle L/R/U/D:85/85/80/80 (Typ.)
Brightness（cd/m2）:300cd/m²
Operation / Storage Temp:0~60°C / -20~60°C
Touch:no

Products Description

G185XW01 V1 ET53L-2H-V4.0 -1

LCD SPECIFICATION
Panel Size	18.5 inch	Panel Type	LCM, a-Si TFT-LCD
Resolution	1366(RGB)×768 [WXGA]	Pixel Format	RGB Vertical Stripe
Display Area	409.8 × 230.4 (H×V)	Bezel Opening	430.4 × 254.6 × 16.9 (H×V×D)
Outline Size	413.4 × 234.0 (H×V)	Surface	Antiglare, Hard coating (3H)
Brightness	300 cd/m² (Typ.)	Contrast Ratio	1000 : 1 (Typ.) (TM)
Best View on	-	Response Time	3.5/1.5 (Typ.)(Tr/Td) ms
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)	Display Mode	TN, Normally White, Transmissive
Display Colors	16.7M 66% NTSC	Lamp Type	WLED , 50K hours , With LED Driver
Weight	1.82Kgs (Max.)	Application	Industrial
Frequency	60Hz	Touch Screen	Without

G185XW01-V1_01 G185XW01-V1_02 G185XW01-V1_03 G185XW01-V1_04 G185XW01-V1_05
