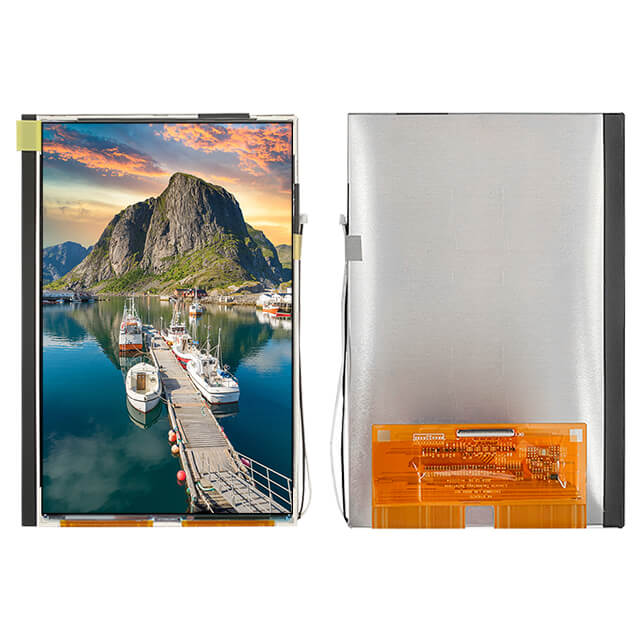

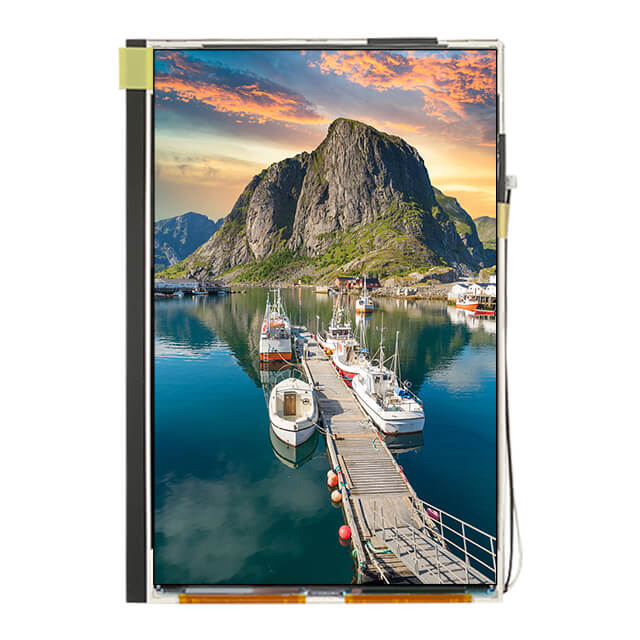

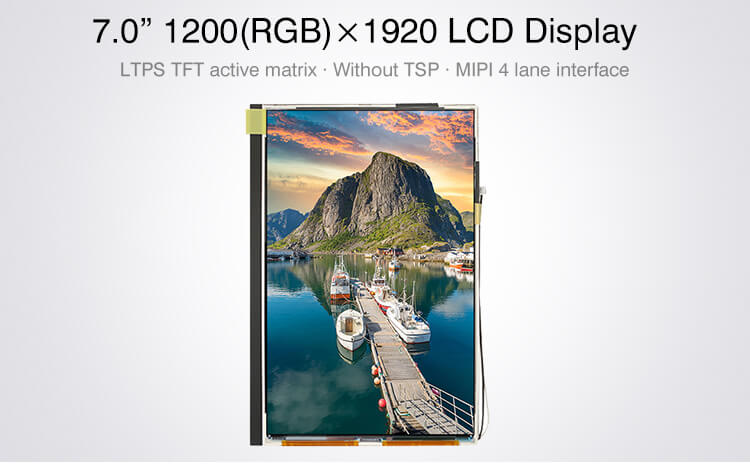

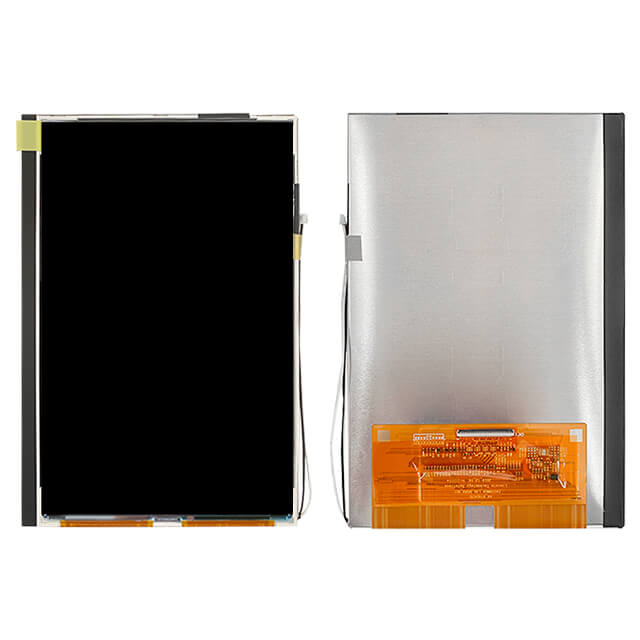

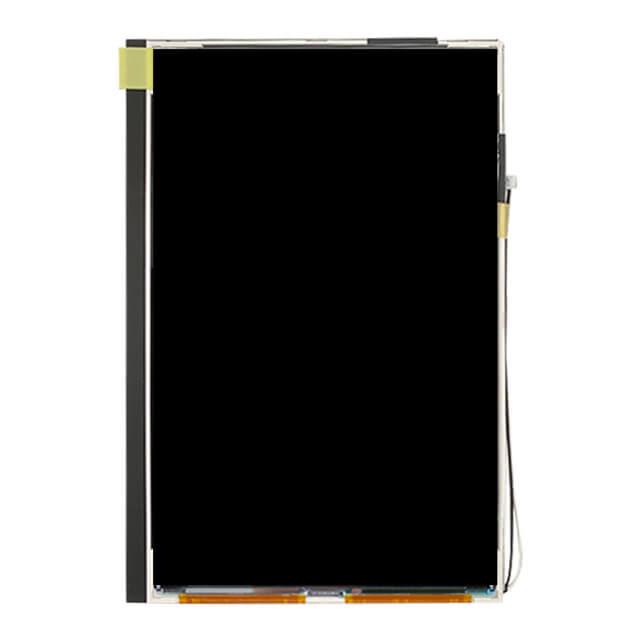

| Product size | 7-inch | Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1200(RGB) X 1920 | Configuration | RGB Vertical Stripe |

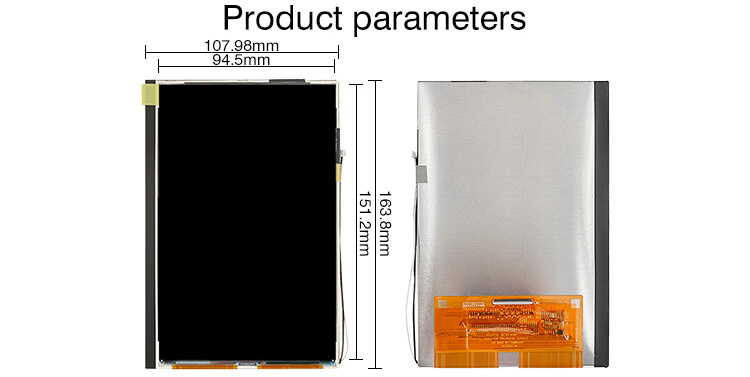

| Active Area | 94.5(W) × 151.2(H)mm | Outline Dim. | 160.80 (L)* 98.70(W)* 1.97 (H)mm |
| Dot Pitch | 0.07875(W) × 0.07875(H)mm | Treatment | Hard coating |
| Luminance | 1500 cd/m² (Typ.) | Contrast Ratio | 1200:1 |
| View Direction | Symmetry | Response Time | 10/15 |
| Viewing Angle | 80/80/80/80 | Operating Mode | Normally Black |
| Backlight power consumption | 9~11v | Light Source | 45 PCS WHITE LED, 20Khours |
| Weight | TBD | Designed For | Outdoor device |
| Panel power consumption | 60mA | Touch Panel | Without |
| Interface Type | Dgital | ||
| Power Supply | 5.5V (Typ.) | ||
| Environment | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C | ||
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
