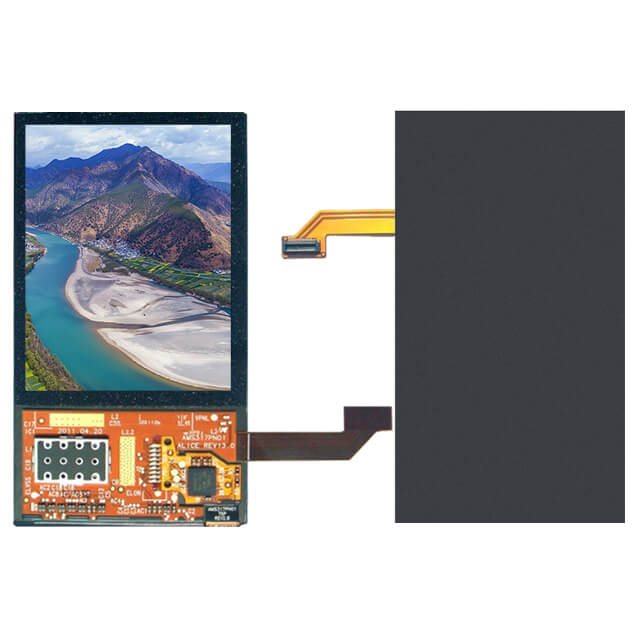

| Product size | 3.2-inch | Type | OLED , AM-OLED |
| Pixel Format | 360(RGB)×640 (nHD) 231PPI | Configuration | RGB Vertical Stripe |
| Active Area | 39.42 × 70.08 (H×V) | Outline Dim. | 45.99 × 100 (H×V×D) |
| Luminance | 300 (Typ.)(cd/m²) | Contrast Ratio | 1300 : 1 (Typ.) (TM) |
| View Direction | - | Response Time | - |
| Viewing Angle | - | Operating Mode | - |
| Support Color | 16.7M 105% NTSC | Light Source | self |
| Weight | 18.0g | Designed For | Mobile Phone |
| Frequency | 60Hz | Touch Panel | Without |
| Interface Type | 4-wire SPI , 10 pins FPC | ||
| Power Supply | 3.3/3.3V (Typ.)(VDDA/VDD) | ||
| Environment | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C | ||
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
