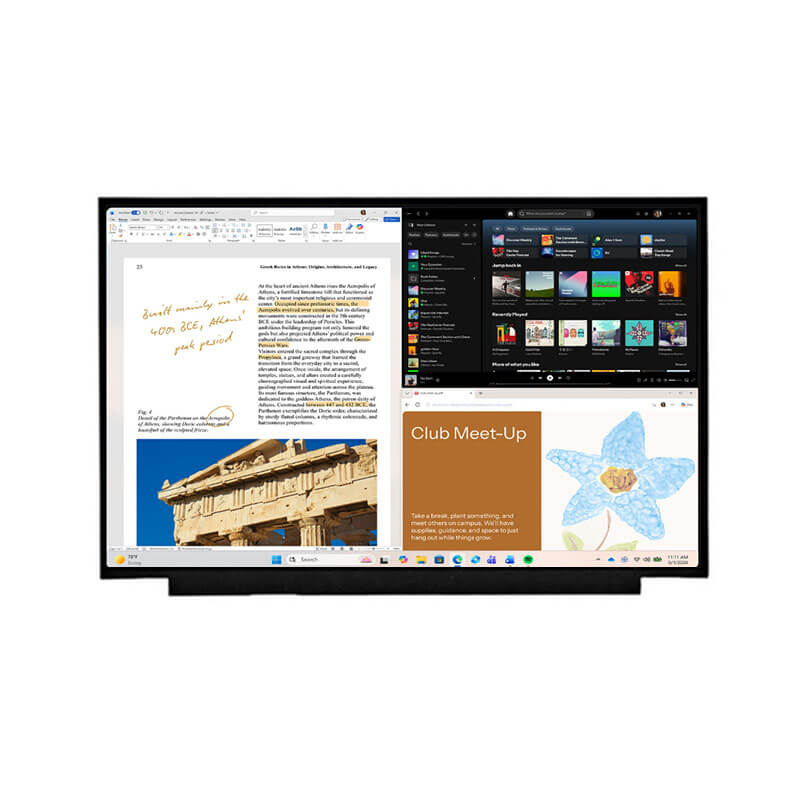

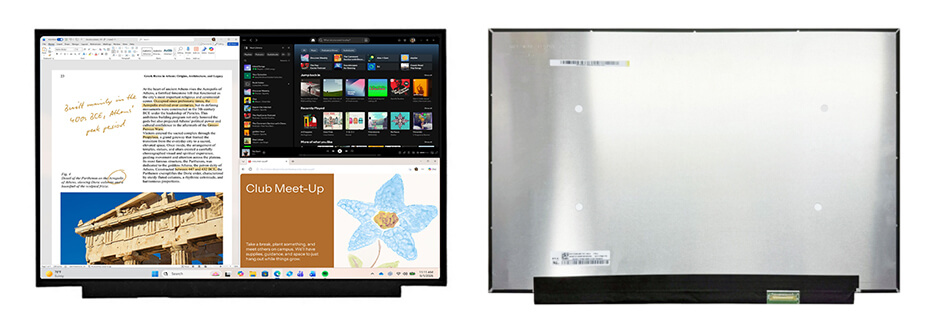

NV153WUM-T41 is a 15.3 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, touchscreen On-Cell Touch.NV153WUM-T41 supports display 1920(RGB)×1200 (WUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 329.472(W)×205.92(H) mm, outline size of 334.47(W)×234.42(H)×3(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 360g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NV153WUM-T41 can provides 300 cd/m² display brightness 1200:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 45% (NTSC). This product adopted 12S6P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NV153WUM-T41 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Ultra-Thin Structure
-Integrated touch layer reduces overall module thickness and weight for slimmer device designs.
High Optical Clarity
-Fewer layers improve light transmittance, delivering brighter images and better contrast.
Fast & Accurate Touch Response
-Direct sensor integration ensures smooth, precise multi-touch performance.
Enhanced Durability
-Fewer laminated layers improve structural reliability and reduce failure points.
Lower Power Consumption
-Improved display efficiency helps optimize battery life in portable devices.
Cost-Effective Integration
-Simplified assembly lowers manufacturing complexity and system cost.
Wide Application Compatibility
-Ideal for wearables, industrial control, medical devices, automotive displays, and smart home interfaces.
Custom Cover Glass Support
-Flexible for different shapes, coatings, and industrial design requirements.
Smart Wearables
-Smartwatches, fitness trackers, and AR/VR devices requiring ultra-thin and lightweight touch displays.
Industrial Control Systems
-HMI panels, control terminals, and factory automation equipment demanding reliable touch interaction.
Medical Devices
-Portable monitors, diagnostic equipment, and handheld medical instruments with precise touch control.
Automotive Displays
-Instrument clusters, infotainment systems, and EV charging interfaces with durable touch integration.
Smart Home Devices
-Smart thermostats, security panels, and home control hubs requiring sleek integrated displays.
Consumer Electronics
-Smartphones, handheld gaming devices, and portable multimedia products.
Point-of-Sale (POS) Systems
-Compact payment terminals and self-service kiosks with responsive touch functionality.
Portable Communication Devices
-Rugged handheld radios, GPS terminals, and field service equipment
Bulky Design
-On-Cell integration reduces thickness and weight.
Poor Visibility
-High transmittance with AG/AR improves outdoor readability.
Slow Touch Response
-Fast, accurate, and stable multi-touch performance.
Low Durability
-Rugged design for vibration, impact, and harsh environments.
Complex Integration
-Complete display + touch + board solutions simplify development.
Limited Customization
-Flexible size, shape, brightness, and interface options.
High Power Consumption
-Optimized low-power design for portable devices.
Supply Chain Risks
-In-house R&D and manufacturing ensure stable quality and delivery.
In-House Touch Integration
-Full On-Cell touch design, tuning, and bonding capabilities.
Custom Display Development
-Flexible customization for size, shape, brightness, interface, and cover glass.
Optical Bonding Expertise
-Enhanced durability, visibility, and touch performance.
Embedded Board Design
-Complete display + touch + controller board solutions.
Ruggedization Capability
-Wide-temperature, anti-glare, anti-reflective, and waterproof solutions.
Strict Quality Control
-Reliable testing for touch accuracy, durability, and display consistency.
Mass Production Support
-Stable supply chain with scalable manufacturing capacity.
Application Engineering
-Fast technical support for industrial, medical, automotive, and smart device integration.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
