HSD015GPN3-90000A-MX 1.54 Inch Reflective Display 200x200 Sunlight Readable 3/4-wire SPI MIP LCD Display

HSD015GPN3-90000A-MX Overview

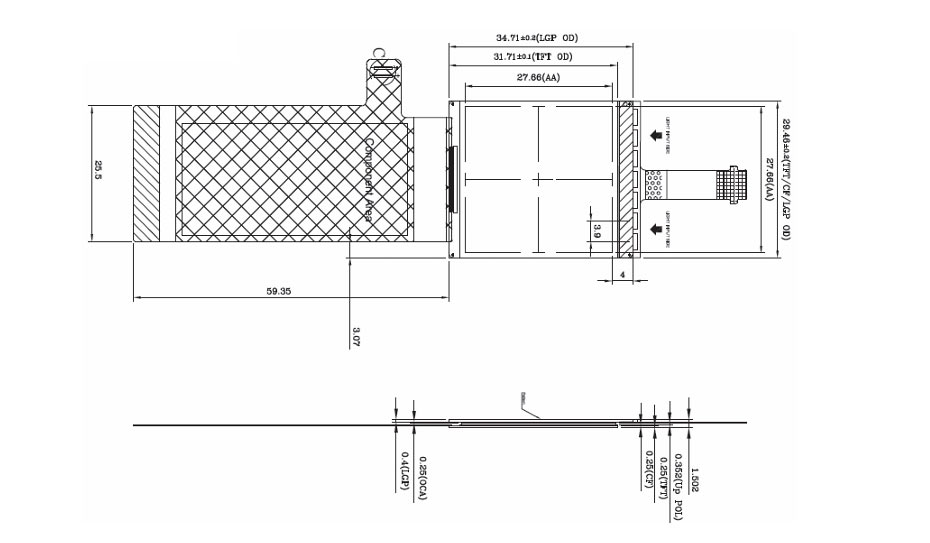

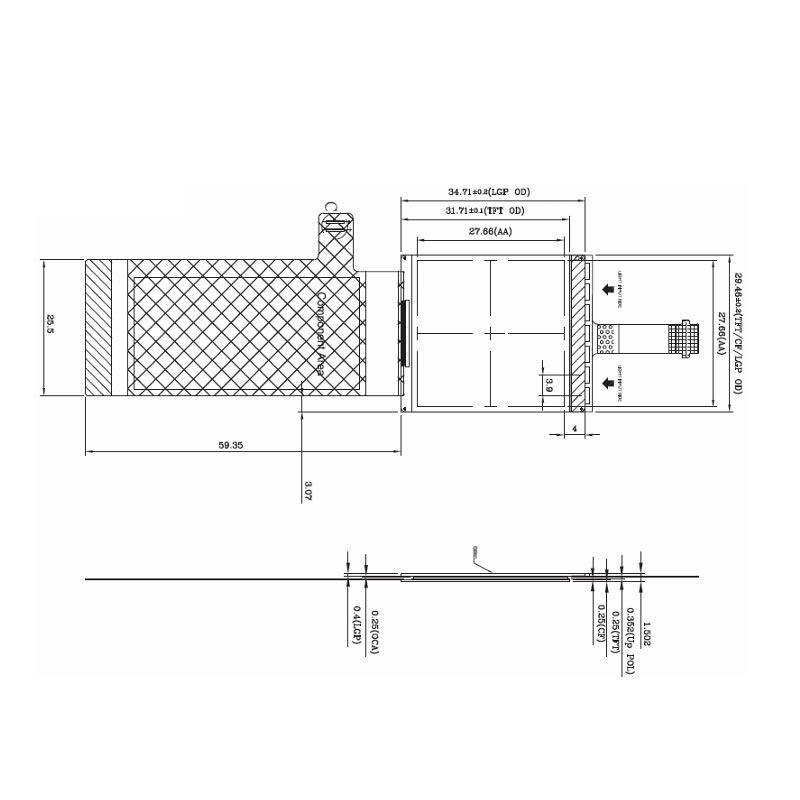

HSD015GPN3-90000A-MX is a 1.54 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. Based on datasheet with version of Pre Rev1.0 which was released out on 8 8 2023, HSD015GPN3-90000A-MX supports display 200×200 with aspect ratio of 1:1 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 27.66(W)×27.66(H) mm, outline size of 29.46(W)×34.71(H)×1.6(D) mm, with surface treament of Hard coating, Antireflection, net weight of TBD. As a TN, Normally White, Reflective LCM product, HSD015GPN3-90000A-MX can provides 300 cd/m² display brightness 15:1 transimissive contrast ratio, 60/60/30/30 (Typ.)(CR≥2) (L/R/U/D) viewing angle ., thus presenting a palette of Monochrome colors. This product adopted 7S1P WLED as it's backlight systerm which was placed as Front light type and have a working life time of 30K hours, external backlight driver is additionally needed. HSD015GPN3-90000A-MX utilizes 3/4-wire SPI as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 1Hz.

HSD015GPN3-90000A-MX Feature
-Reflective
-Sunlight Readable

Screen Size: 1.54 inch
Resolution: 200x200
Brand: HannStar
HSD015GPN3-90000A-MX 1.54 Inch 200x200 Reflective Display.

HSD015GPN3-90000A-MX Application
For Wearable & Industrial LCD Display.

Reflective MIP Displays Technology

Reflective MIP Displays Application

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
