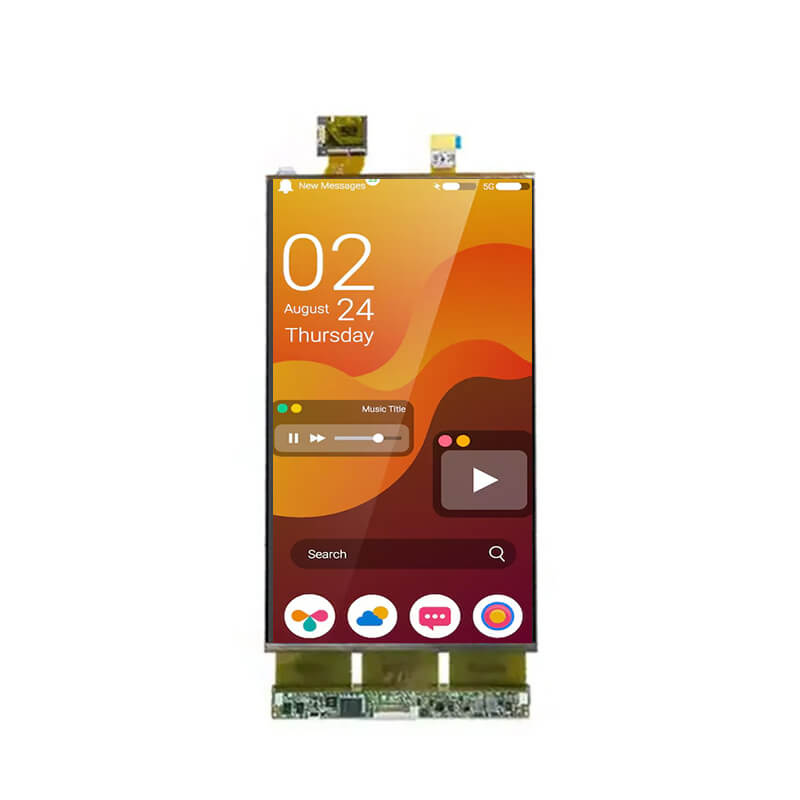

LP133QX1-EPA1 13.3 Inch Flexible AMOLED Display 1536×2048 eDP Flexible OLED Display with Optional Touch & Driver Board

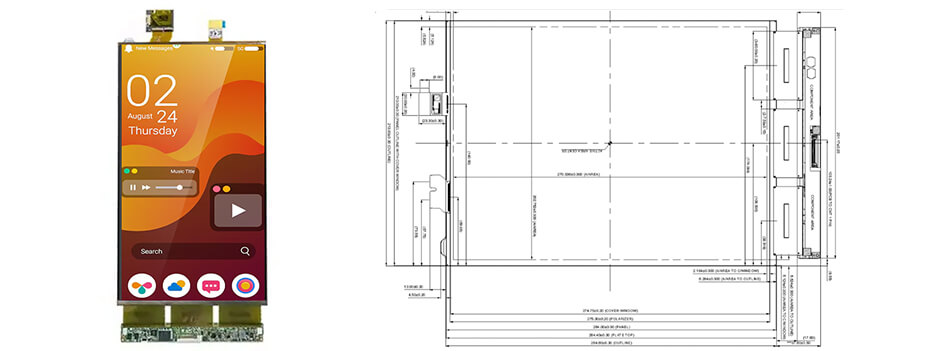

LP133QX1-EPA1 13.3 Inch Flexible OLED Display Overview
LP133QX1-EPA1 is a 13.3 inch diagonal AM-OLED display screen product, it self emiting, touchscreen On-Cell Touch. LP133QX1-EPA1 supports display 1536(RGB)×2048 (QXGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 202.752(W)×270.336(H) mm, outline size of 213.8(W)×284.8(H) mm, with surface treament of Glare (Haze 0%), Hard coating (6H), net weight of 120g (Max.). LP133QX1-EPA1 can provides 300 cd/m² display brightness 5000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 2 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 117% (NTSC). This product emiting itself and have a working life time of 15K hours. LP133QX1-EPA1 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

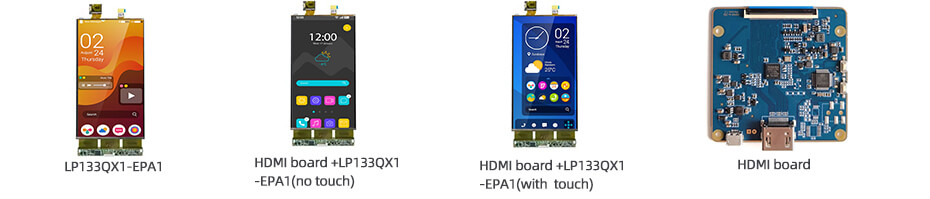

More 13.3 Inch Flexible OLED Display Soulution For Reference
LP133QX1-EPA1
HDMI board +LP133QX1-EPA1(no touch)
HDMI board +LP133QX1-EPA1(with touch)
HDMI board

AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing
