LM270QQ2-SPA3 27 Inch 4K LCD Display 5120x2880 eDP (8 Lanes) 540nits High Brightness IPS LCD Module

27 Inch 4k Display Overview

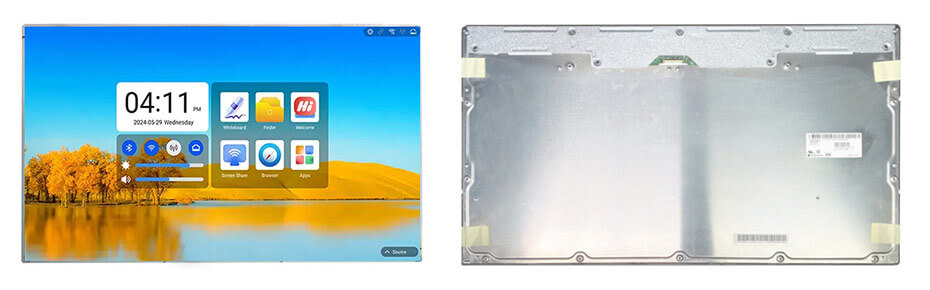

LM270QQ2-SPA3 is a 27.0 inch diagonal Oxide TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.LM270QQ2-SPA3 supports display 5120(RGB)×2880 (QQHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 595.2(W)×334.8(H) mm, outline size of 620.6(W)×361.1(H)×13.3(D) mm, with surface treament of Hard coating (2H), Antireflection, net weight of 2.632.76Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM270QQ2-SPA3 can provides 540 cd/m² display brightness 1100:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 99% (DCI-P3). This product adopted 19S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM270QQ2-SPA3 utilizes eDP (8 Lanes) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 12.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

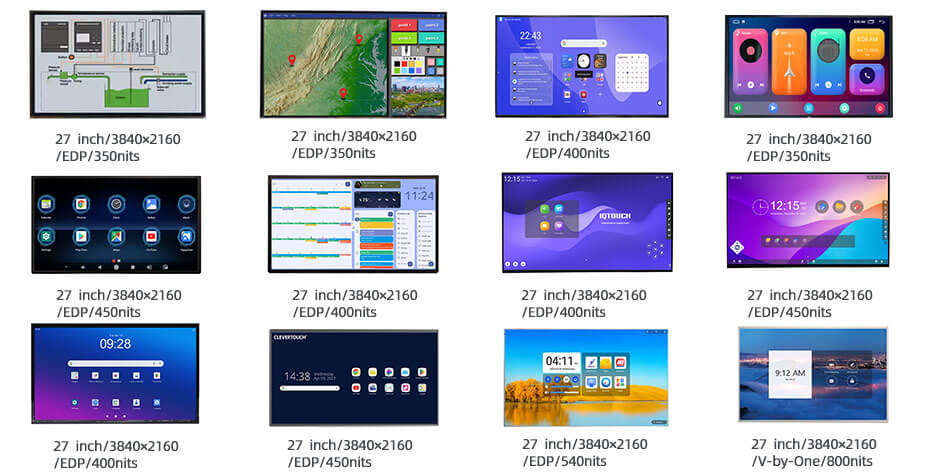

More 27 Inch 4k Display For Reference
LM270WR3-SSA1 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 608.8x355.3mm)
LM270WR4-SSA1 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 608.8x355.3mm)
LM270WR5-SSF1 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 608.8x349.4mm)
LM270WR5-SSE1 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 608.8x349.4mm)
LM270WR8-SSA1 (LCM, 3840x2160, eDP, 450nits, 0~50°C, 603.9x347.45mm)
LM270WR8-SSC1 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 603.9x346.15mm)
LM270WR9-SSA1 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 608.8x349.4mm)
LM270WR8-SSD1 (LCM, 3840x2160, eDP, 450nits, 0~50°C, 603.9x347.45mm)
LM270WRC-SSA1 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 608.8x354mm)
LM270WRA-SSA1 (LCM, 3840x2160, eDP, 450nits, 0~50°C, 608.8x349.4mm)
LM270QQ2-SPA3 (LCM, 5120x288 , eDP, 54nits, 0~50°C, 620.6x361.1mm)
G270ZAN01.1 (LCM, 3840x2160, V-by-One, 800nits, 0~50°C, 630x368.2mm)
G270ZAN01.3 (LCM, 3840x2160, eDP, 350nits, 0~50°C, 630x368.2mm)
G270ZAN01.5 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 613.6x356.85mm)
M270QAN06.1 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 608.92x355.3mm)
M270QAN07.0 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 609.1x355mm)
MV270QUM-N50 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 609.4x355.6mm)
EV270QUM-N11 (LCM, 3840x2160, eDP, 10000nits, 0~50°C, 630x368.2mm)
MV270QUM-NM1 (LCM, 3840x2160, eDP, 600nits, 0~50°C, 608.9x359.8mm)
MV270QUM-N54 (LCM, 3840x2160, eDP, 450nits, 0~50°C, 609.4x355.6mm)
MV270QUM-NM0 (LCM, 3840x2160, eDP, 720nits, 0~50°C, 608.8x354.1mm)
EV270QUM-N10 (LCM, 3840x2160, eDP, 1000nits, 0~50°C, 630x368.2mm)
ET270UH01-R (LCM, 3840x2160, LVDS,  1500nits, 0~50°C, 618x360mm)
ET270UH02-R (LCM, 3840x2160, eDP, 1000nits, 0~50°C, 628.8x367.1mm)
