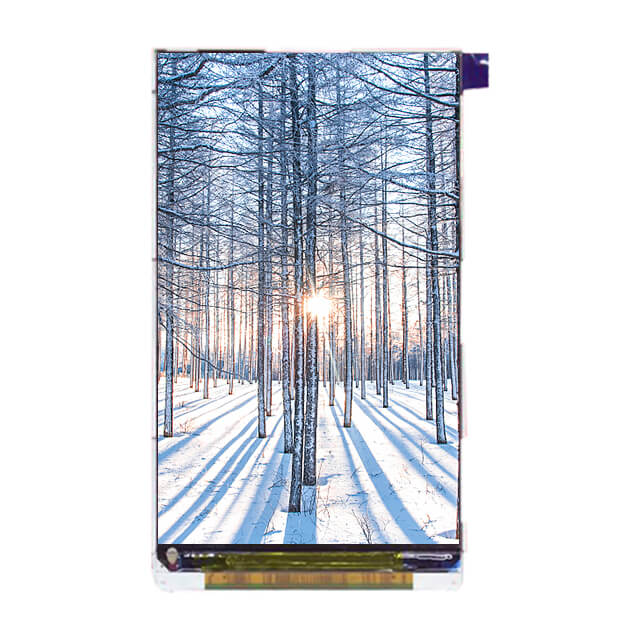

Product size
|
4.3-inch
|
Type
|
LTPS TFT-LCD, LCM
|
|
Pixel Format
|
540(RGB)×960 [qHD] 256PPI
|
Configuration
|
RGB Vertical Stripe
|
|
Active Area
|
53.46(H)×95.04(V) mm
|
Outline Dim.
|
58.12(H)×105.095(V) ×1.93(D) mm
|
|
Bezel Area
|
55.06(H)×96.64(V) mm
|
Treatment
|
-
|
|
Luminance
|
-
|
Contrast Ratio
|
700:1 (Min.) (TM)
|
|
View Direction
|
Symmetry
|
Response Time
|
55/55 (Max.)(Tr/Td)
|
|
Viewing Angle
|
80/80/80/80 (Typ.)(CR≥10)
|
Operating Mode
|
AHVA, Normally Black, Transmissive
|
|
Support Color
|
16.7M 80% NTSC
|
Light Source
|
WLED [8S1P] , W/O Driver
|
|
Weight
|
TBD
|
Designed For
|
Mobile Phone
|
|
Frequency
|
60Hz
|
Touch Panel
|
Without
|
|
Interface Type
|
MIPI (2 data lanes) , 25 pins FPC
|
||
|
Power Supply
|
1.8/5.0V (Typ.)(VDDI/VCI)
|
||
|
Environment
|
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
|
||
