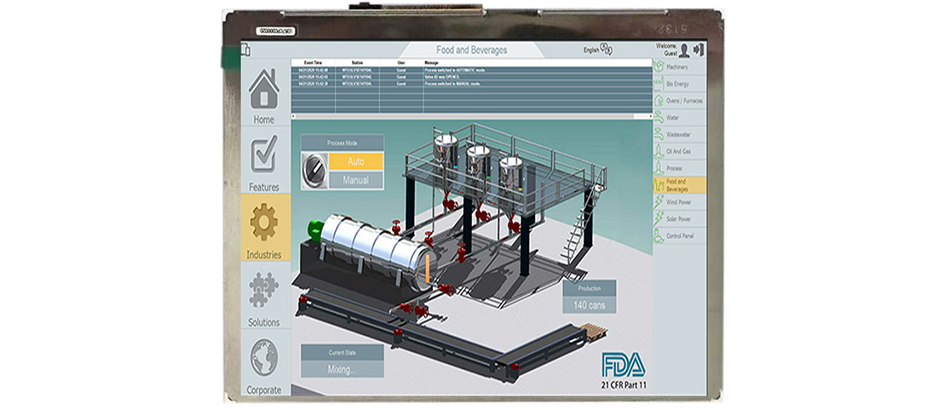

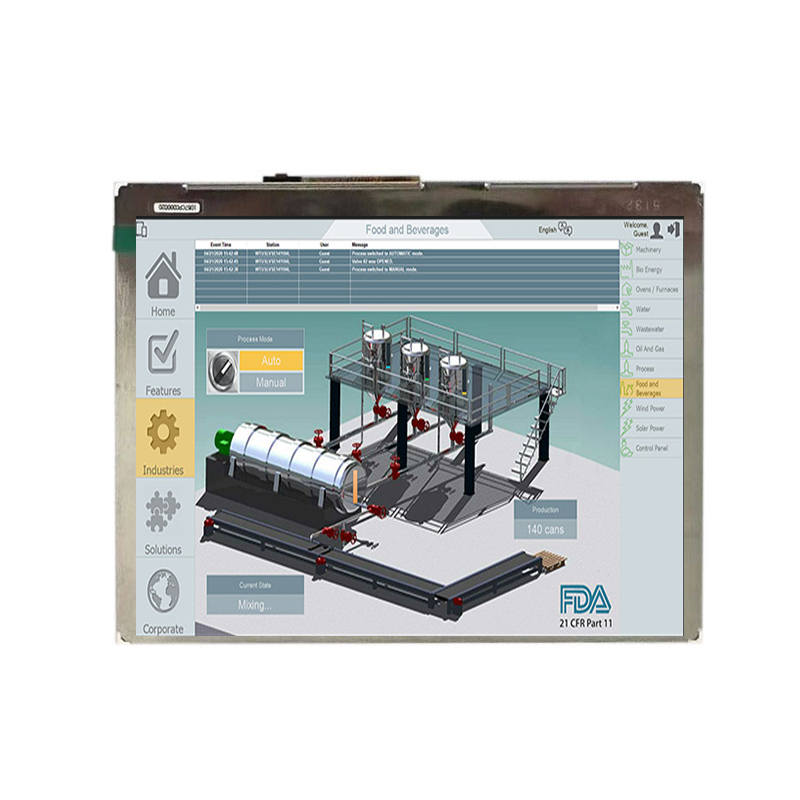

COM57H5M59KTC Ortustech 5.7 Inch Blanview Display 320×240 Parallel RGB TFT LCD Display With 4-wire Resistive Touch

COM57H5M59KTC Ortustech 5.7 Inch Blanview Display 320×240 Parallel RGB TFT LCD Display With 4-wire Resistive Touch Overview

COM57H5M59KTC is a 5.7 inch diagonal a-Si TFT-LCD display screen product from Ortustech, with a built-in WLED backlight, without backlight driver, touchscreen 4-wire Resistive Touch.COM57H5M59KTC supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 130.32(W)×101.2(H)×7.43(D) mm, viewing area size of 118.7(W)×89.9(H) mm, net weight of 149.5g (Typ.). As a TN, Normally White, Transflective LCM product, COM57H5M59KTC can provides 500 cd/m² display brightness 600:1 transimissive contrast ratio, 1.6:1 (Typ.) reflective contrast ratio, 80/80/60/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted 5S2P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 70K hours, external backlight driver is additionally needed. COM57H5M59KTC utilizes Parallel RGB (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 61 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Ortustech Transflective Display Advantage

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application

Ortustech Transflective Display Production and Manufacturing
