JDI LPM021M528C 2.1 Inch 1600x1600 LCD Panel MIPI Interface LCD Display Screen For HMD AR VR

  • Part No.:LPM021M528C
  • Size:2.1″ inch
  • Resolution:1600x1600
  • Panel Interface:MIPI (2 ch,4 data lanes)
  • Display mode:Transmissive
  • Outline Dimension:41.2x45.3mm
  • Active Area:38.4x38.4mm
  • Viewing Angle L/R/U/D:/
  • Brightness(cd/m2):430cd/m²(Typ.)
  • Operation / Storage Temp:0~50°C / -20~70°C
  • Touch:no

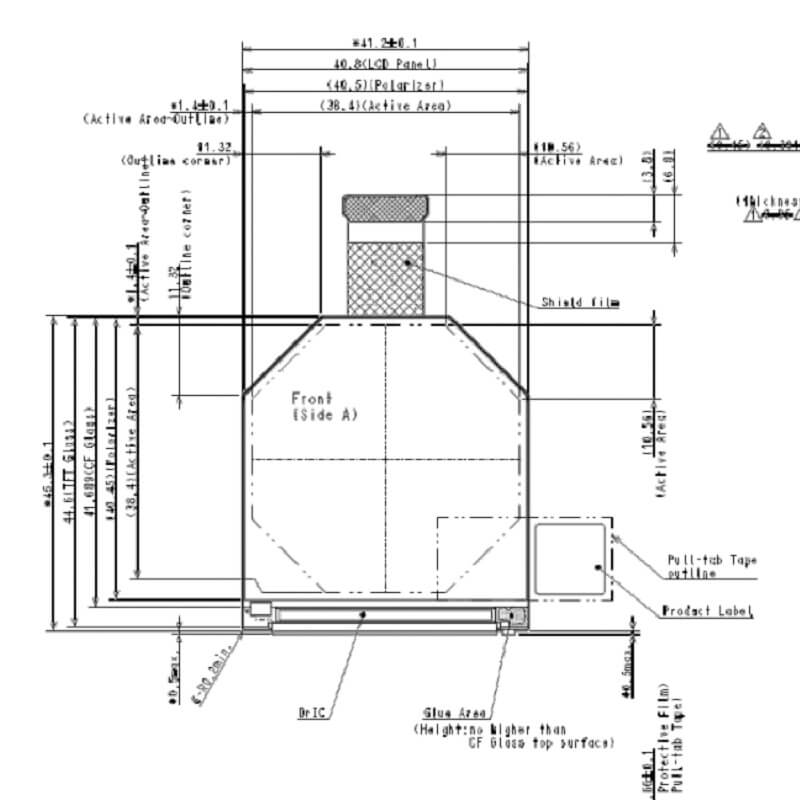

LPM021M528C is a 2.1 inch diagonal a-Si TFT-LCD display screen, with a built-in WLED backlight, without backlight driver, without touch screen.LPM021M528C supports display 1600(RGB)×1600 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 1058 PPI. As for mechanical detail, it features active area of 38.4(W)×38.4(H) mm, outline size of 41.2(W)×45.3(H) mm, with surface treament of Hard coating, net weight of 5.90g (Typ.).

Screen Size:2.1 inch
Brand: JDI
Brightness:430 cd/m² (Typ.)
Contrast Ratio:700:1 (Typ.) (Transmissive)
Color Amount:16.7M (8-bit)
2.1 Inch 1600x1600 MIPI Interface LCD Panel

-High Resolution
-High Contrast
-WLED Backlight
-Wide temperature range
-Low power consumption


Head-mounted Displays, Viewfinders, Small Display,AR VR etc.
