HSD029GPW3-02990A-MX 2.9 Inch Sunlight Readable LCD Display 210x480 Reflective 4-wire SPI Memory-in-Pixel LCD Display

HSD029GPW3-02990A-MX Overview

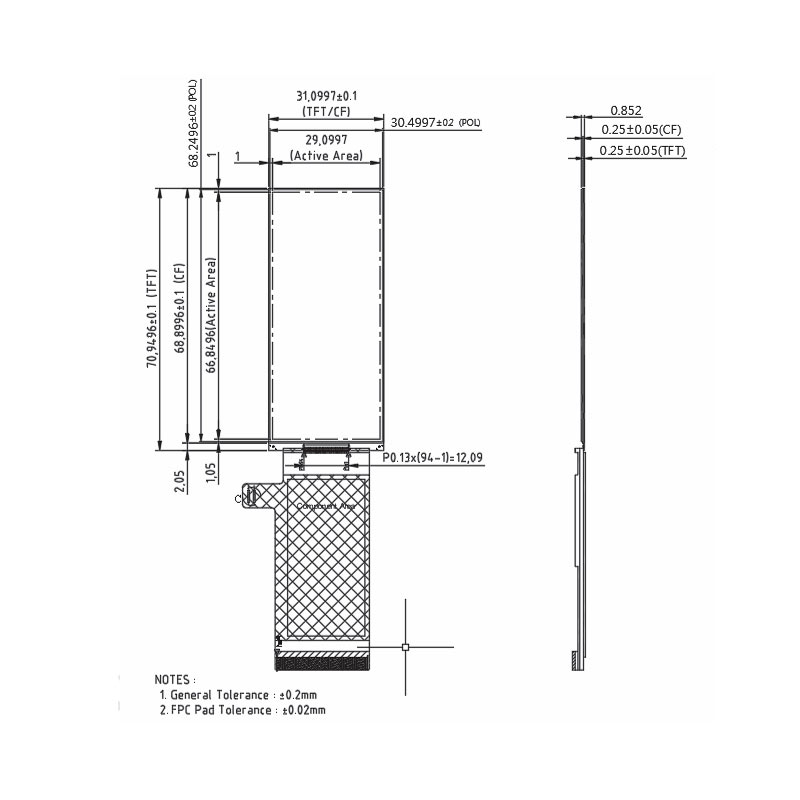

HSD029GPW3-02990A-MX is a 2.9 inch diagonal a-Si TFT-LCD display screen product, without backlight, without touch screen.HSD029GPW3-02990A-MX supports display 210(RGB)×480 with aspect ratio of 9:20 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 29.0997(W)×66.8496(H) mm, outline size of 31.0997(W)×70.9496(H)×0.86(D) mm, with surface treament of Hard coating, net weight of TBD. As a TN, Normally White, Reflective LCM product, HSD029GPW3-02990A-MX can provides , 15:1 (Typ.) reflective contrast ratio, 60/60/60/60 (Typ.)(CR≥2) (L/R/U/D) viewing angle , and response time of 5 (Typ.)(Tr+Td) ms., thus presenting a palette of 8 colors. This product have no backlight. HSD029GPW3-02990A-MX utilizes 4-wire SPI as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 1Hz.

HSD029GPW3-02990A-MX Feature
-Reflective
-Sunlight Readable
-Landscape/Portrait

HSD029GPW3-02990A-MX Application
For Wearable & Industrial LCD Display.

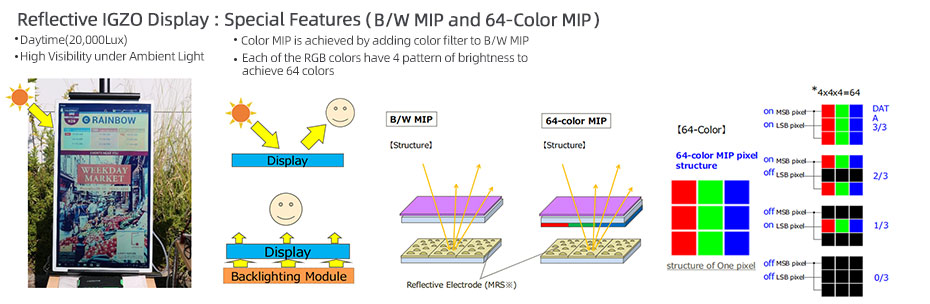

Reflective MIP Displays Technology

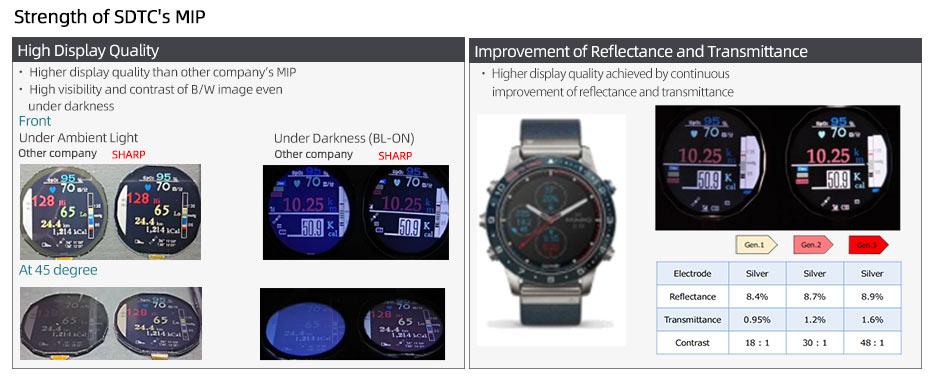

Reflective MIP Displays Application

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
