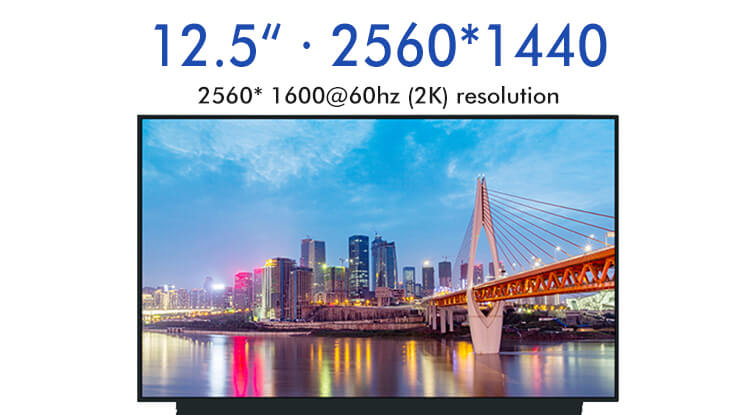

Hot Selling 12.5 Inch 2560x1440 Resolution with eDP 40 Pins Connector 60Hz Free Angle LCD Display For Laptop

  • Part No.:LQ125T1JW02
  • Size:12.5″ inch
  • Resolution:2560x1440
  • Panel Interface:eDP (4 Lanes)
  • Display mode:IPS,Transmissive
  • Outline Dimension:282.68(H)x178.66(V)x2.3(D)mm
  • Active Area:276.48(H)x155.52(V)mm
  • Viewing Angle L/R/U/D:89/89/89/89
  • Brightness(cd/m2):340cd/m²
  • Operation / Storage Temp:0~50°C / -20~60°C
  • Touch:no

Products Description

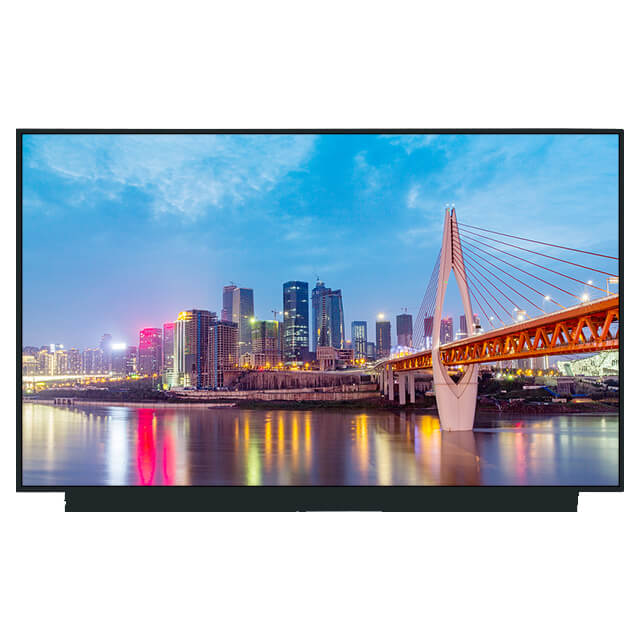

LQ125T1JW02 ET60E-C-V1.2 HDMI Type-c to eDP-1

Product size 12.5-inch Type Oxide TFT-LCD, LCM
Pixel Format 2560(RGB)×1440 [Quad-HD] 235PPI Configuration RGB Vertical Stripe
Active Area 276.48(H)×155.52(V) mm Outline Dim. 282.68(H)×178.66(V) ×2.3(D) mm
Bezel Area - Treatment Antiglare, Hard coating (2H)
Luminance 340 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (TM)
View Direction Symmetry Response Time 25 (Typ.)(Tr+Td)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Operating Mode IPS, Normally Black, Transmissive
Support Color 16.7M 72% NTSC Light Source WLED , 15K hours , With LED Driver
Weight Slim (PCBA Flat, T≤3.2mm) Designed For Laptop
Frequency 60Hz Touch Panel Without
Interface Type eDP (4 Lanes) , 40 pins Connector
Power Supply 3.3V (Typ.)
Environment Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

LQ125T1JW02_01LQ125T1JW02_02LQ125T1JW02_03LQ125T1JW02_04
