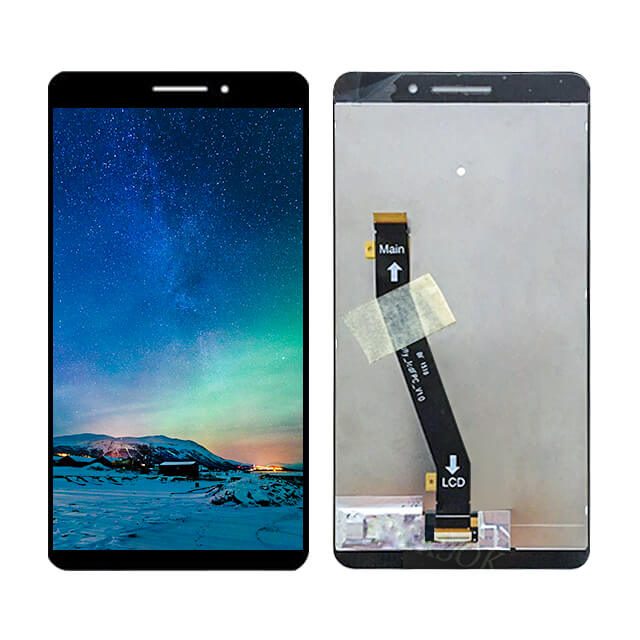

high quality 6.8 inch FHD lcd display with capacitive touch 1080x1920 MIPI 39 pins forCamera monitor and mobile phone

Product size

6.8-inch

Type

Assembly ,   a-Si TFT-LCD

Pixel Format

1080(RGB)×1920   (FHD)  325PPI

Configuration

RGB Vertical Stripe

Active Area

84.24 × 149.76 (H×V)

Outline Dim.

92.35 × 182.35 × 4.87 (H×V×D)

Bezel Area

-

Treatment

Hard coating

Luminance

350 cd/m² (Typ.)

Contrast Ratio

1000 : 1 (Typ.) (TM)

View Direction

Symmetry

Response Time

25 (Typ.)(Tr+Td) ms

Viewing Angle

85/85/85/85 (Min.)(CR≥10)

Operating Mode

-

Support Color

16.7M   70% NTSC

Light Source

6S3P WLED , 12K hours , No Driver

Weight

88.6±3.0g

Designed For

Mobile Phone

Frequency

60Hz

Touch Panel

PCAP

Interface Type

MIPI (4 data lanes) , 39 pins Connector

Environment

Storage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C
