WV009VDQ-N80-1QP1 BOE 0.9 Inch Round LCD 128x128 Wide Temperature Circular Display

Part No.:WV009VDQ-N80-1QP1
Size:0.9″ inch
Resolution:128x128
Panel Interface:/
Display mode:Transmissive
Outline Dimension:24.84x6.84mm
Active Area:23.04x23.04mm
Viewing Angle L/R/U/D:85/85/85/85 (Typ.)
Brightness（cd/m2）:0cd/m²
Operation / Storage Temp:-30~85°C / -30~85°C
Touch:no

WV009VDQ-N80-1QP1 Overview

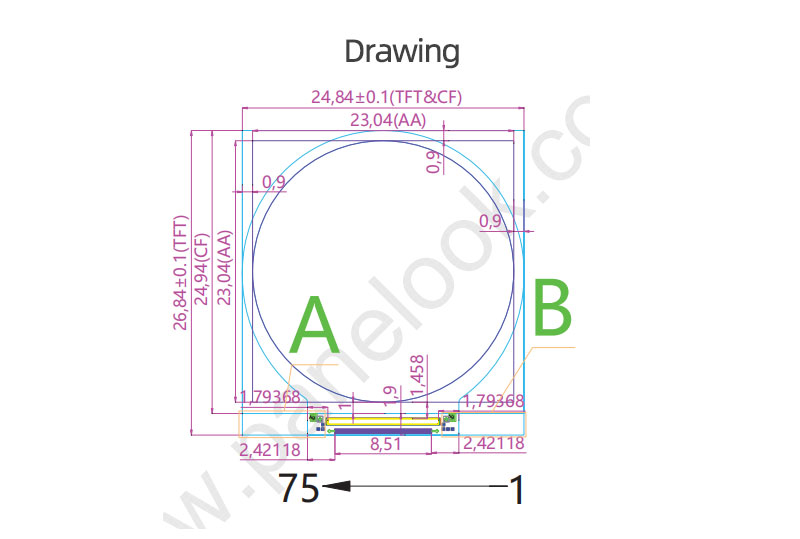

WV009VDQ-N80-1QP1 is a 0.90 inch diagonal a-Si TFT-LCD display screen product from BOE, without backlight, without touch screen. WV009VDQ-N80-1QP1 supports display 128(RGB)×128 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 23.04(W)×23.04(H) mm, outline size of 24.84(W)×6.84(H)×0.8(D) mm, with surface treament of Without Polarizer, utilizing 0.40+0.40 mm mm plate. As a ADS, Normally Black, Transmissive CELL product, WV009VDQ-N80-1QP1 can provides 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms.

Screen Size:0.9 inch
Resolution:128x128
Brand: BOE
0.9 Inch 128x128 Wide Temperature Round LCD Display.

Application
For Wearable.
