G121EAN01.1 12.1 Inch TFT LCD Display 1280×800 LVDS Wide Temperature LCD Display For Healthcare Medical Display Solution

G121EAN01.1 12.1 Inch TFT LCD Display 1280×800 LVDS Wide Temperature LCD Display For Healthcare Medical Display SolutionLCD Display For Healthcare Me Overview

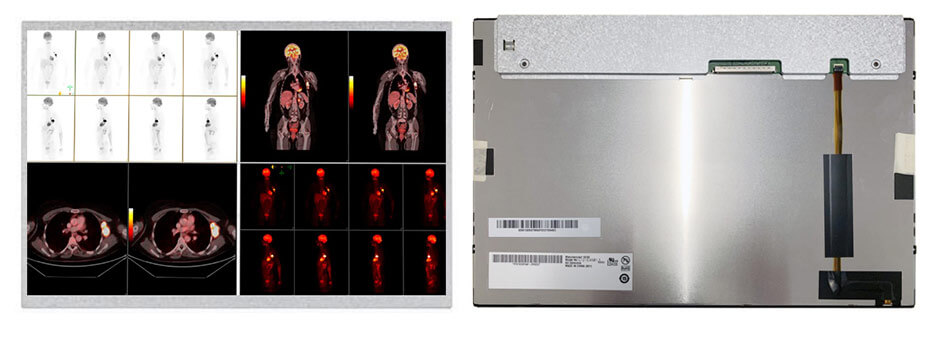

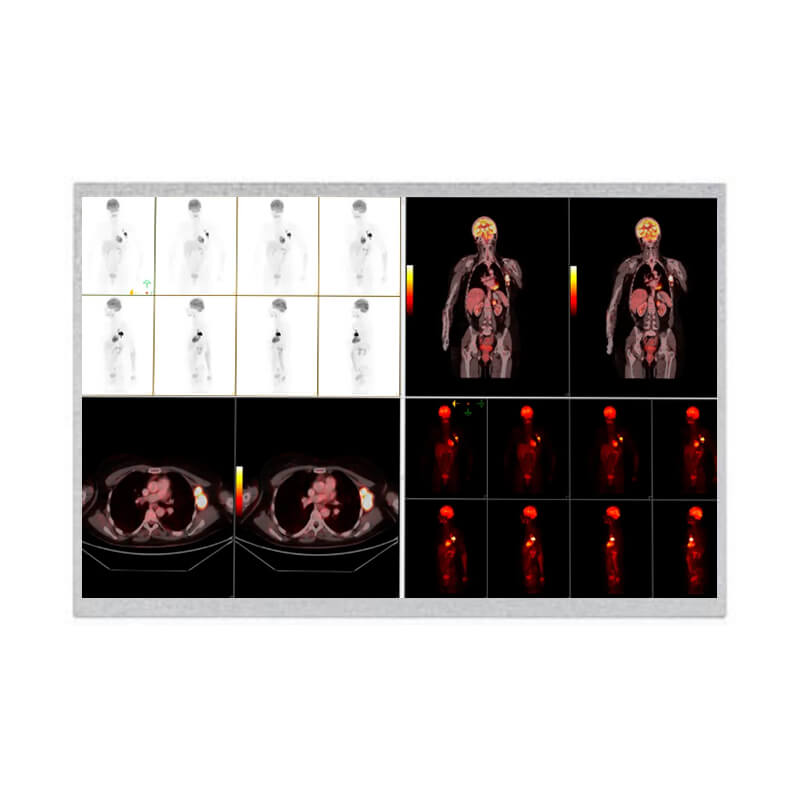

G121EAN01.1 is a 12.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen. G121EAN01.1 supports display 1280(RGB)×800 (WXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 261.12(W)×163.2(H) mm, outline size of 278(W)×184(H)×9.64(D) mm, viewing area size of 264.22(W)×168.12(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 480g (Max.). As a AHVA, Normally Black, Transmissive LCM product, G121EAN01.1 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 99% (sRGB). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. G121EAN01.1 utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

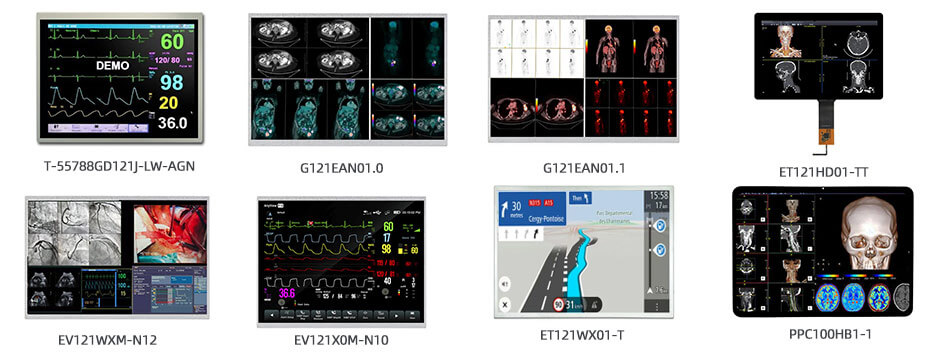

More 12.1 Inch Healthcare & Medical Display Solution For Reference
T-55788GD121J-LW-AGN (LCM, 800×600, LVDS, -30~80°C, 261.8×203.3mm)
ET121S0M-N14 (LCM, 800×600, LVDS, -20~70°C, 279×209mm)
G121EAN01.0 (LCM, 1280×800, LVDS, -30~85°C, 278×184mm)
G121EAN01.1 (LCM, 1280×800, LVDS, -30~85°C, 278×184mm)
ET121HD01-TT (LCM, 1280×800, LVDS, -20~70°C, 293.66×198.66mm)
EV121WXM-N12 (LCM, 1280×800, LVDS, -20~70°C, 277.7×180.6mm)
EV121X0M-N10 (LCM, 1024×768, LVDS, -20~70°C, 260.5×204mm)
ET121WX01-T (LCM, 1024×768, LVDS, -20~70°C, 260.5×204mm)
PPC100HB1-1 (LCM, 3000×2120, MIPI, -20~60°C, 264.33×190.75mm)

Key Features of Healthcare & Medical Display Solutions

High Image Quality
–Sharp, accurate images for medical diagnostics.
High Brightness
–Excellent visibility in various lighting conditions.
Wide Viewing Angle
–IPS technology ensures clear viewing from any angle.
24/7 Reliable Operation
–Stable performance for continuous medical use.
Wide Temperature Range
–Reliable in demanding healthcare environments.
PCAP Touch Support
–Smooth, accurate touch with glove compatibility.
Low Power Consumption
–Energy-efficient for portable medical devices.
Long-Term Supply
–Stable lifecycle for medical equipment projects.
Custom Design Support
–Brightness, touch, interface, and optical bonding customization.
OEM & ODM Service
–End-to-end display solutions for healthcare applications.

Application of Healthcare & Medical Display Solutions

Medical Imaging Equipment

Ultrasound Systems; Patient Monitoring Systems; X-Ray Imaging Systems; Digital Radiography Systems; CT Scanners; MRI Systems; Endoscopy Systems; Medical Imaging Monitors; Portable Ultrasound Devices.

Patient Monitoring & Critical Care

Patient Monitors; Vital Signs Monitors; ECG / EKG Monitors; Blood Pressure Monitors; Pulse Oximeters; Capnography Monitors; Multi-Parameter Patient Monitors; Central Patient Monitoring Stations.

Diagnostic & Laboratory Equipment

Blood Analyzers; Hematology Analyzers; Biochemistry Analyzers; Immunoassay Analyzers; Urine Analyzers; Microscopy Systems; Laboratory Analyzers; Point-of-Care Testing Devices; Diagnostic Testing Equipment.

Surgical & Operating Room Equipment

Surgical Displays; Surgical Monitors; Endoscopic Systems; Laparoscopic Systems; Surgical Navigation Systems; Operating Room Displays; Anesthesia Machines; Electrosurgical Units; Surgical Robots.

Dental Equipment

Dental Treatment Units; Dental Imaging Systems; Dental X-Ray Systems; Intraoral Cameras; Dental CAD/CAM Systems; Dental Chairs; Dental Sterilization Equipment.

Emergency & Ambulance Equipment

Portable Patient Monitors; Defibrillators; Emergency Ventilators; Portable Ultrasound; Ambulance Monitoring Systems; Emergency Medical Devices; Portable Diagnostic Equipment.

Respiratory & Anesthesia Equipment

Ventilators; Respiratory Monitors; Anesthesia Machines; Oxygen Concentrators; CPAP / BiPAP Devices; Respiratory Therapy Equipment; Gas Monitoring Systems.

Infusion & Drug Delivery

Infusion Pumps; Syringe Pumps; Enteral Feeding Pumps; Drug Delivery Systems; IV Monitoring Systems.

Rehabilitation & Home Healthcare

Rehabilitation Equipment; Physiotherapy Equipment; Home Patient Monitoring; Home Healthcare Devices; Mobility Assistance Equipment; Smart Healthcare Devices; Remote Patient Monitoring Devices.

Ophthalmic Equipment

Ophthalmic Diagnostic Devices; Fundus Cameras; Optical Coherence Tomography (OCT) Systems; Slit Lamps; Autorefractors; Vision Screening Devices; Ophthalmic Surgical Systems.

Cardiology Equipment

ECG / EKG Devices; Holter Monitors; Cardiac Monitoring Systems; Ultrasound / Echocardiography Systems; Stress Test Systems; Defibrillators; Cardiac Diagnostic Equipment.
