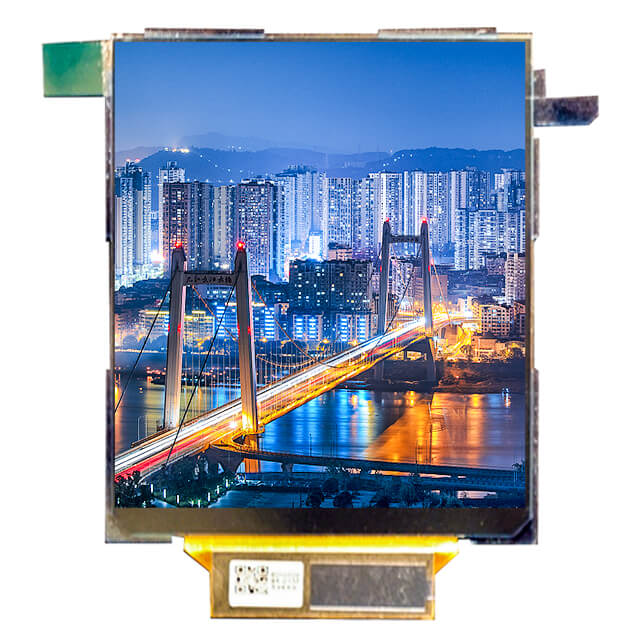

Fast delivery 3.6 inch 1080*1200 amoled color lcd screen 3.6 inch square oled lcd display 250nits

  • Part No.:AMS361EP01
  • Size:3.6″ inch
  • Resolution:1080x1200
  • Panel Interface:MIPI (4 data lanes)
  • Display mode:/
  • Outline Dimension:63.75(H)x89.718(V)
  • Active Area:61.29(H)x68.1(V)
  • Viewing Angle L/R/U/D:80/80/80/80
  • Brightness(cd/m2):250(Typ.)
  • Operation / Storage Temp:-20~60°C / -30~70°C
  • Touch:no

Product Description

Product size 3.6-inch Type AM-OLED, OLED
Pixel Format 1080(RG/BG)×1200 365PPI Configuration RG/BG PenTile
Active Area 61.29(H)×68.1(V) mm Outline Dim. 63.75(H)×89.718(V) ×0.96(D) mm
Luminance 250 cd/m² (Typ.) Contrast Ratio 5000:1 (Typ.) (TM)
View Direction Symmetry Response Time -
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Operating Mode -
Support Color 16.7M 100% NTSC Light Source self
Weight - Designed For HMD VR AR
Frequency 90Hz Touch Panel Without
Interface Type MIPI (4 data lanes) , 40 pins Connector
Power Supply 1.8/3.3/3.8V (Typ.)(VDDI/VCI/VBAT)
Environment Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C
