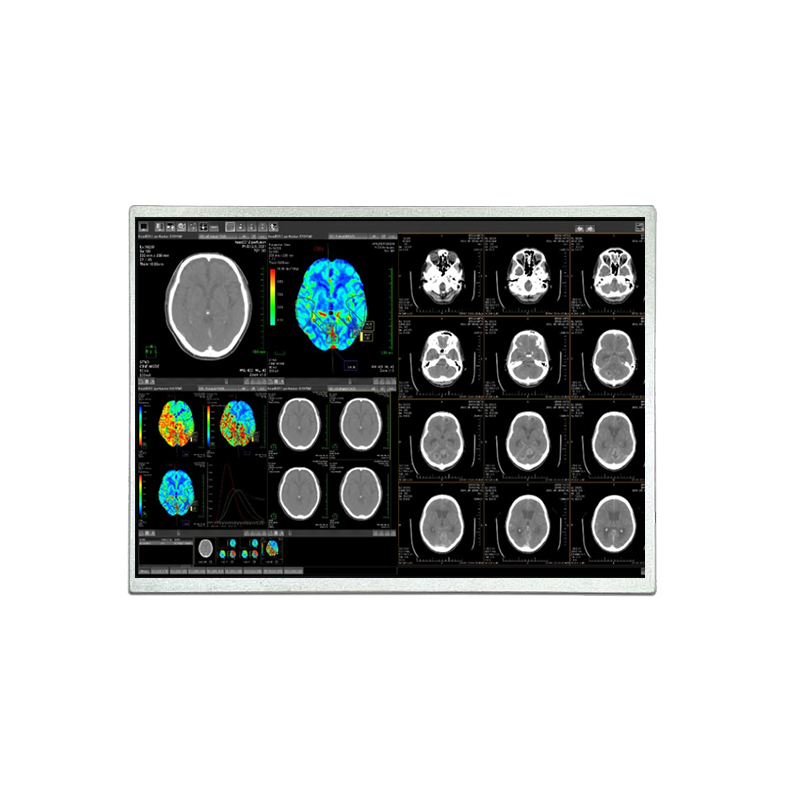

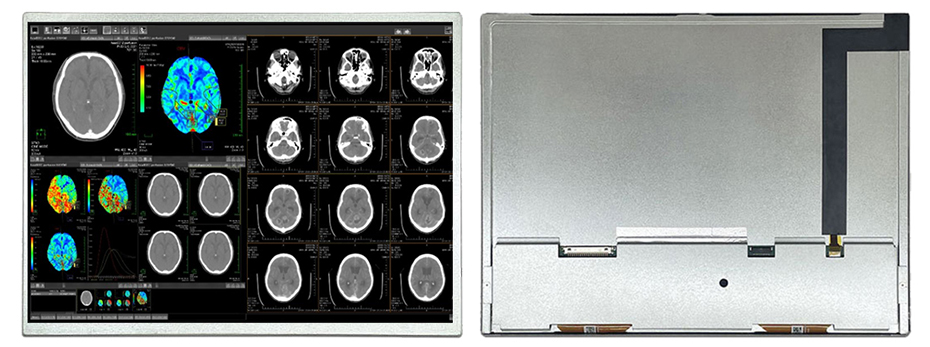

COM121T9M14CSS Ortustech 12.1 Inch Blanview Display High Brightness 800×600 LVDS Wide Temperature TFT LCD Display

COM121T9M14CSS Ortustech 12.1 Inch Blanview Display High Brightness 800×600 LVDS Wide Temperature TFT LCD Display Overview

COM121T9M14CSS is a 12.1 inch diagonal a-Si TFT-LCD display screen product from Ortustech, with a built-in WLED backlight, With LED Driver, without touch screen. COM121T9M14CSS supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm, outline size of 260.5(W)×203(H)×10(D) mm, net weight of 500g (Typ.). As a FFS, Normally Black, Transmissive LCM product, COM121T9M14CSS can provides 600 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 48% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. COM121T9M14CSS utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

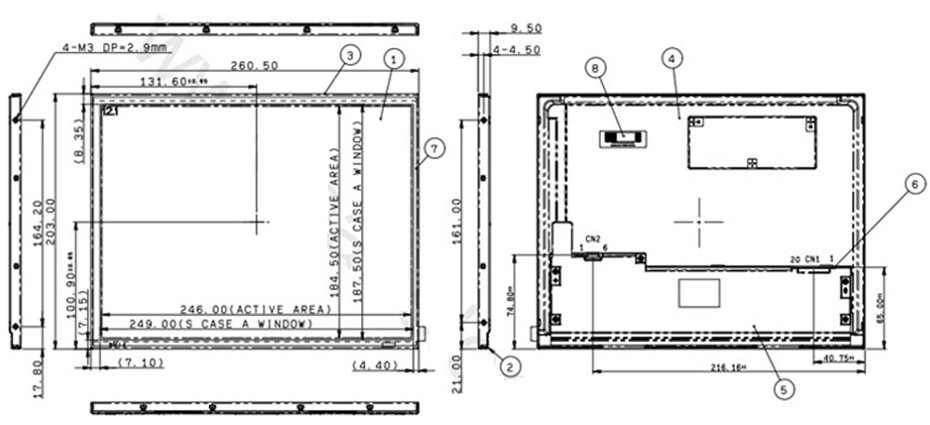

COM121T9M14CSS Drawing

Ortustech Transflective Display Advantage

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application

Ortustech Transflective Display Production and Manufacturing
