(17")

Factory Supply 17 inch Module 1280x1024 Resolution LCD Panel IPS Display LVDS 30 Pins Interface Screen

  • Part No.:DV170E0M-N10
  • Size:17″ inch
  • Resolution:1280x1024
  • Panel Interface:LVDS (2 ch,8-bit)
  • Display mode:HADS,Transmissive
  • Outline Dimension:358.5(H)x296.5(V)
  • Active Area:337.92(H)x270.336(V)
  • Viewing Angle L/R/U/D:89/89/89/89
  • Brightness（cd/m2）:250(Typ.)
  • Operation / Storage Temp:0~50°C / -20~60°C
  • Touch:no
Get a quote

Products Description

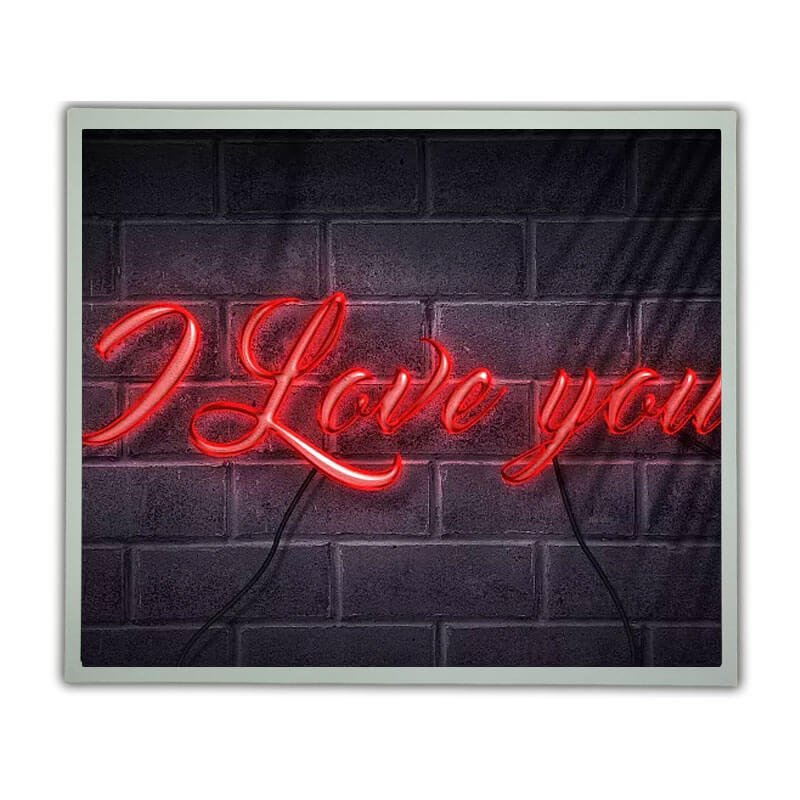

DV170E0M-N10-17inch-TFT-1280x1024-LVDS-3

LCD SPECIFICATION
Panel Size 17" Panel Type a-Si TFT-LCD, LCM
Pixel Number 1280×1024 Configuration RGB Vertical Stripe
Active Area(mm) 337.92(H) × 270.336(V) Outline(mm) 358.5×296.5 mm (H×V)
Bezel Area(mm) 341.72(H) × 274.14(V) Treatment Antiglare
Luminance 250 (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Display Mode HADS,Transmissive
View Direction Symmetry Support Color 16.7M (6-bit + Hi-FRC)
Signal Interface LVDS (2 ch, 8-bit)
Input Voltage 5.0V (Typ.)
Environment Operating Temp.:0 ~ 50 °C; Storage Temp.:-20 ~ 60 °C

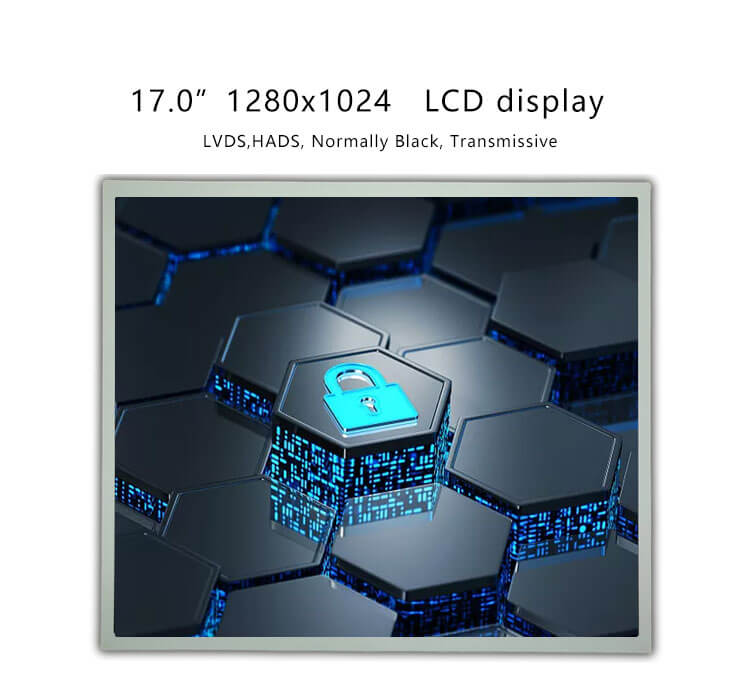

DV170E0M-N10_01 DV170E0M-N10_02 DV170E0M-N10_03
