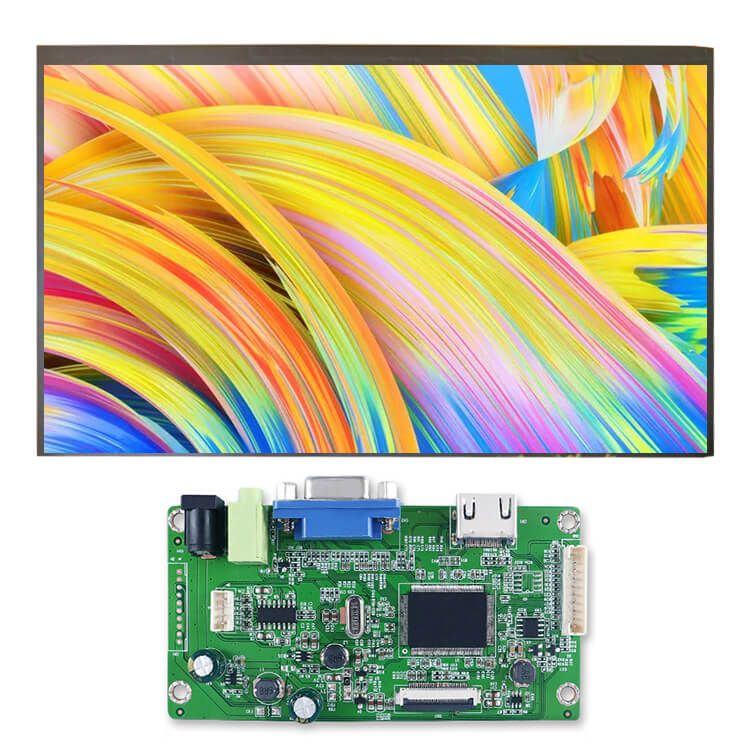

ET108FHM-ND0 10.8 inch 1920x1080 tft ips lcd panel display inch lcd module to HDMI driver board for Tablet

LCD SPECIFICATION

Panel Size

10.8 inch

Panel Type

a-Si TFT-LCD, LCM

Resolution

1920(RGB)×1080 , FHD

Pixel Format

RGB Vertical Stripe

Display Area

239.04(W)×134.46(H) mm

Bezel Opening

-

Brightness

-

Contrast Ratio

1000:1 (Typ.) (TM)

Best View on

Symmetry

Response Time

16 (Typ.)(Tr+Td)

Viewing Angle

80/80/80/80 (Min.)(CR≥10)

Display Mode

ADS, Normally Black, Transmissive

Display Colors

16.7M   72% NTSC

Lamp Type

WLED , 15K hours

Weight

-

Application

Pad & Tablet

Frequency

60Hz

Touch Screen

-

Signal Interface

eDP (2 Lanes)

Input Voltage

3.3V (Typ.)

Environment

Operating Temp.: 0 ~ 40 °C ; Storage Temp.: -20 ~ 60 °C
