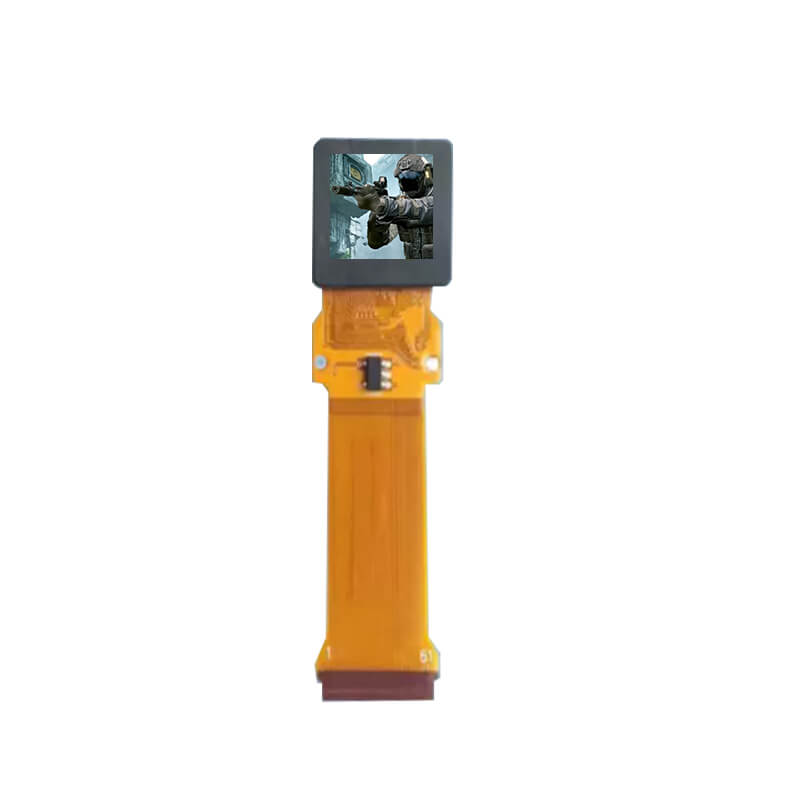

0.39 Inch Micro OLED Display 1024×768 HDMI High Brightness OLED Display With Driver Board For EVF AR Red Dot Sight Display Solutions Overview

0.39 Inch Micro OLED Display is a compact Si-OLED (Silicon OLED) display module designed for EVF, AR, and red dot sight display solutions. Featuring a 0.39-inch diagonal size and a 1024×768 resolution, it delivers high-definition imaging with excellent detail and clarity for precision optical applications. The display utilizes self-emissive Si-OLED technology, providing high contrast, fast response, and superior image quality without the need for a backlight. Equipped with an HDMI interface and integrated driver board, this micro OLED display enables easy integration into electronic viewfinders, augmented reality devices, and advanced optical sighting systems. With a brightness of 500 cd/m², a wide operating temperature range of -20°C to 70°C, and a storage temperature range of -40°C to 80°C, it ensures reliable performance in demanding environments. Its compact design, high pixel density, and excellent optical performance make it an ideal display solution for wearable devices, outdoor optical equipment, and professional imaging systems.

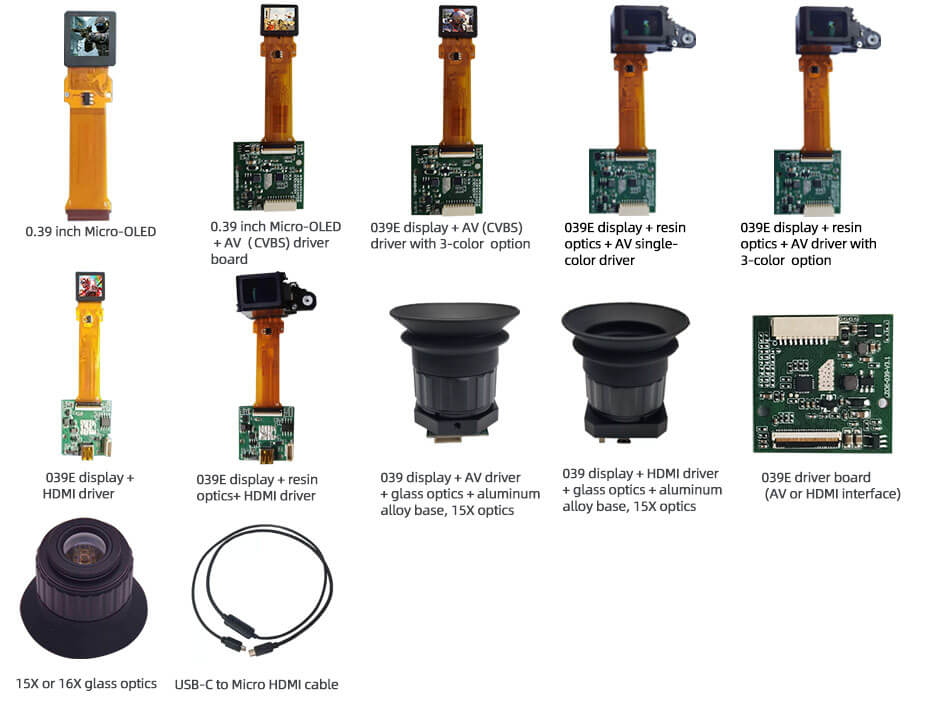

0.39 Inch Micro OLED Display Solution For Reference
0.39 inch Micro-OLED
0.39 inch Micro-OLED + AV（CVBS) driver board
039E display + AV (CVBS) driver with 3-color option
039E display + resin optics + AV single-color driver
039E display + resin optics + AV driver with 3-color option
039E display + HDMI driver
039E display + resin optics + HDMI driver
039 display + AV driver + glass optics + aluminum alloy base, 15X optics
039 display + HDMI driver + glass optics + aluminum alloy base, 15X optics
039E driver board (AV or HDMI interface)
15X or 16X glass optics
USB-C to Micro HDMI cable

Applications For Youritech Micro OLED Display

Augmented Reality / Smart Glasses
Electronic Viewfinder
Virtual Reality
Thermal Imaging
Red Dot Sight
Medical Imaging
First-person view drone FPV
Helmet-mounted display
Industrial Inspection

Youritech Micro OLED Display Solutions

As one of the Pioneers within microdisplays products, Youritech have pushed energy efficiency to the edge, delivering high-performance Near-Eye Displays (NED) for a wide range of products, that include video glasses, head-mounted sports devices, camera viewfinders, medical applications, and many other professional devices worldwide.
