Custom LCD Display Panel China Manufacturer 320x240 LCD Screen 60% NTSC To LCD Display Monitor

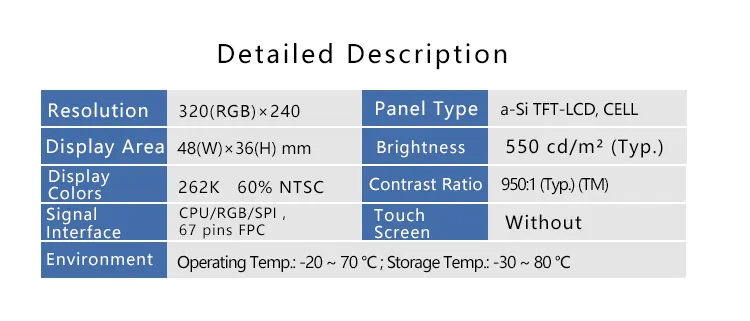

Part No.:TFT3P5350-E
Size:2.4″ inch
Resolution:320x240
Panel Interface:CPU/RGB/SPI
Display mode:a-Si TFT-LCD,LCM

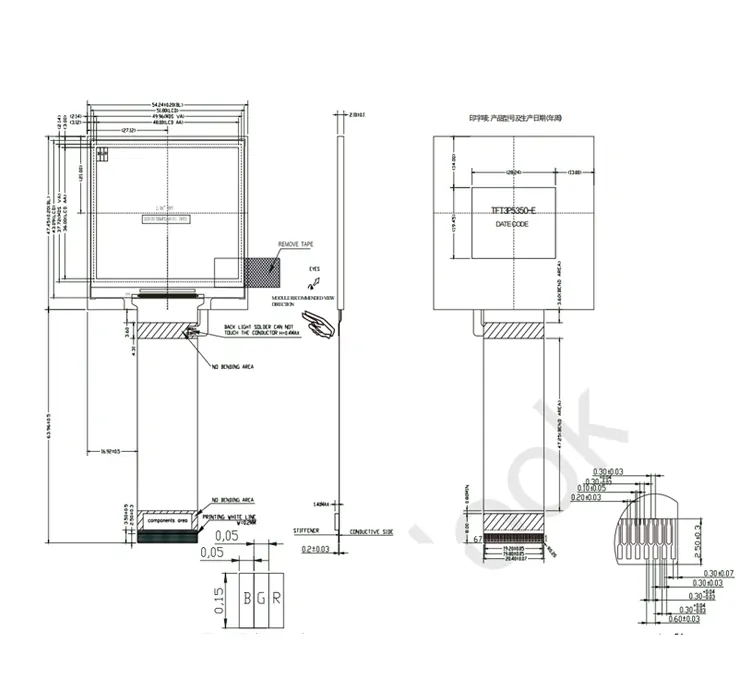

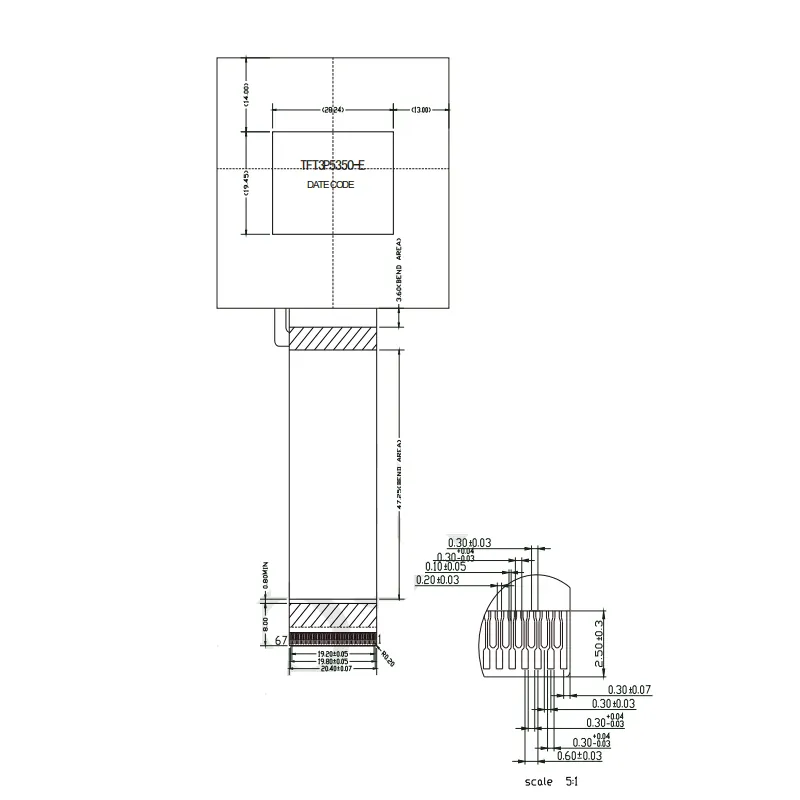

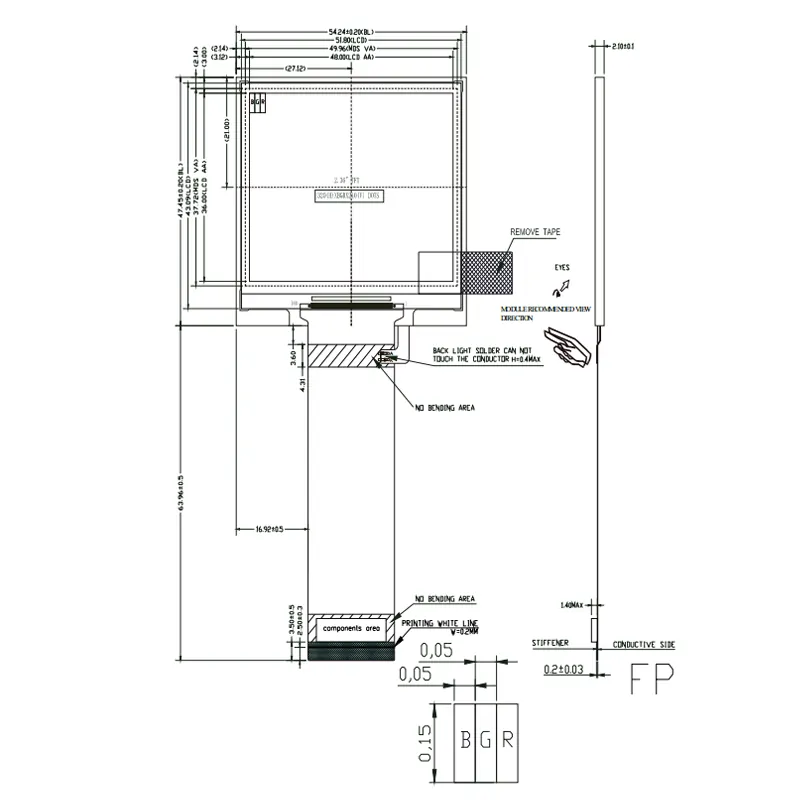

Outline Dimension:54.24(H)x47.45(V)
Active Area:48(H)x36(V)
Viewing Angle L/R/U/D:80/80/80/60
Brightness（cd/m2）:550(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no
