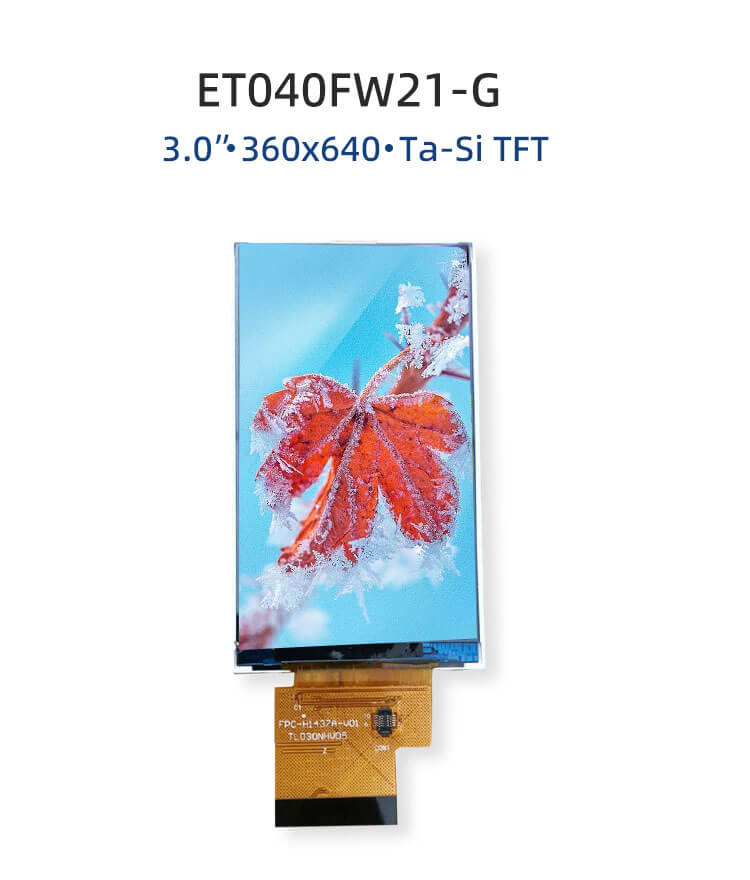

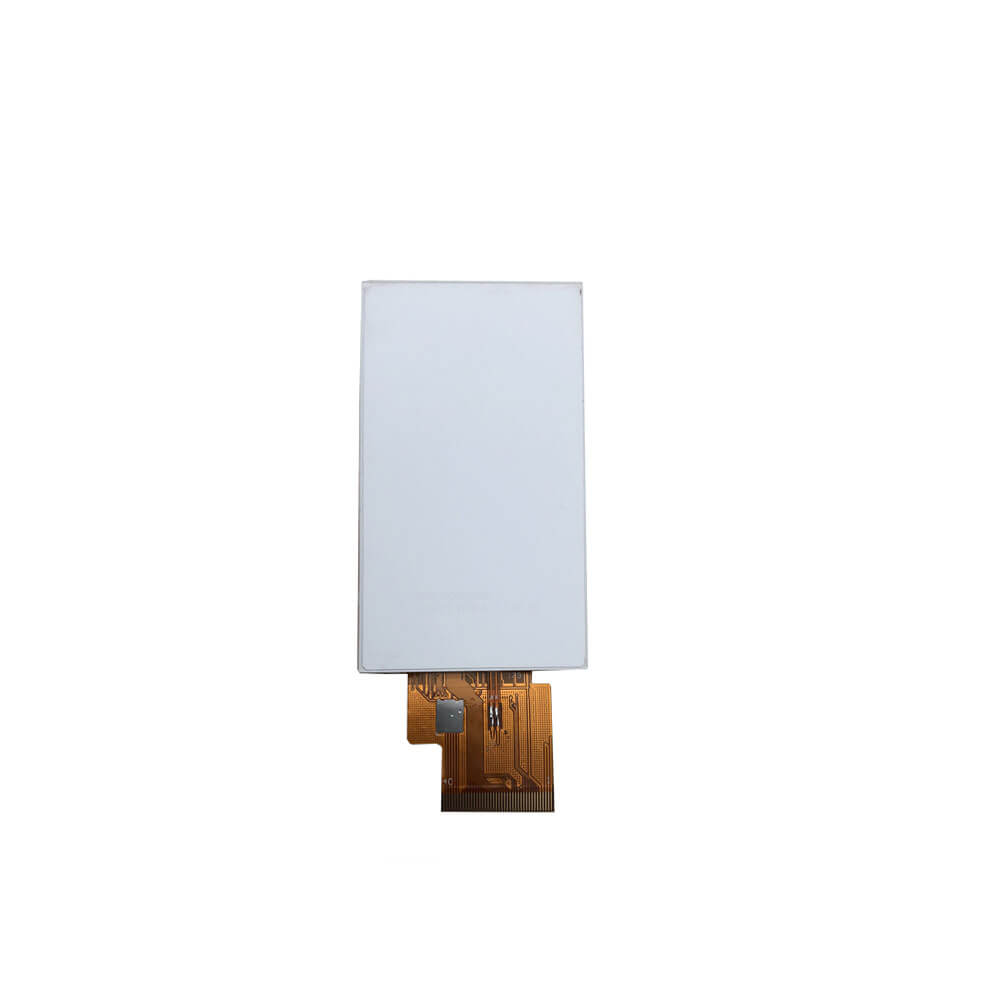

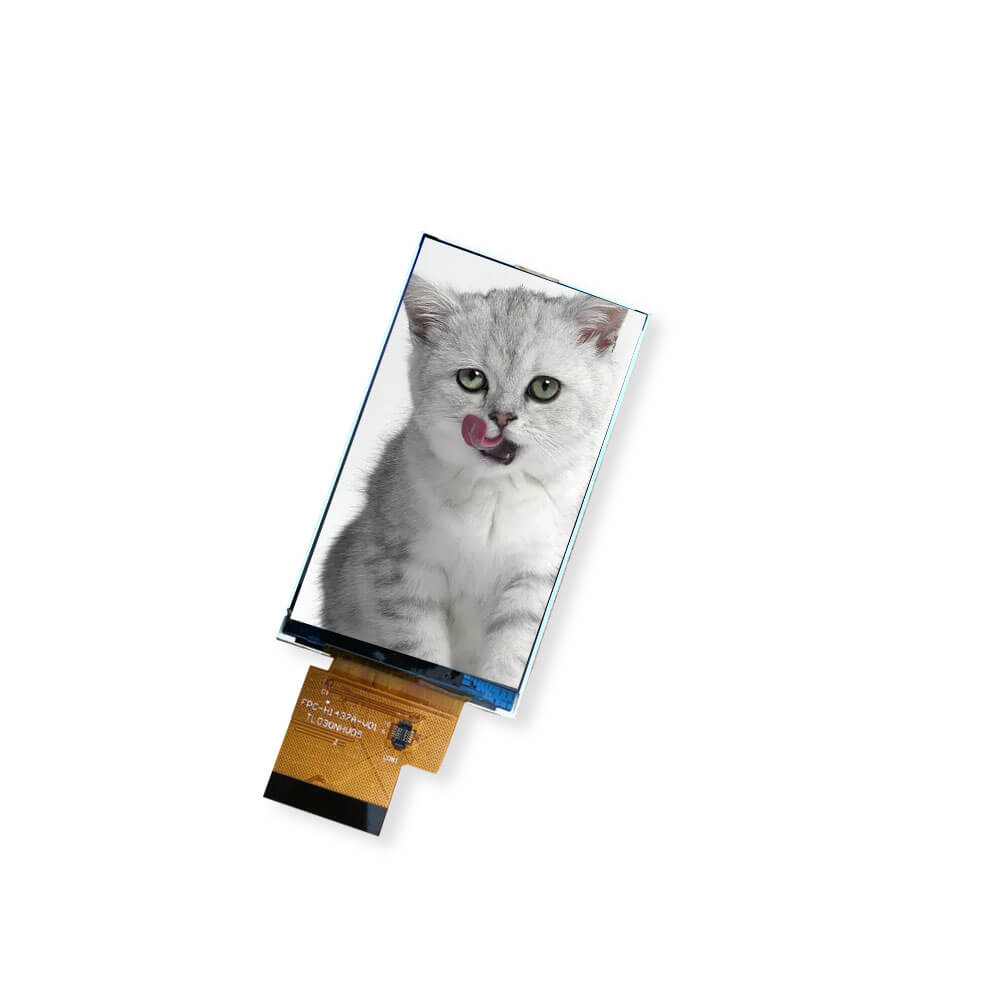

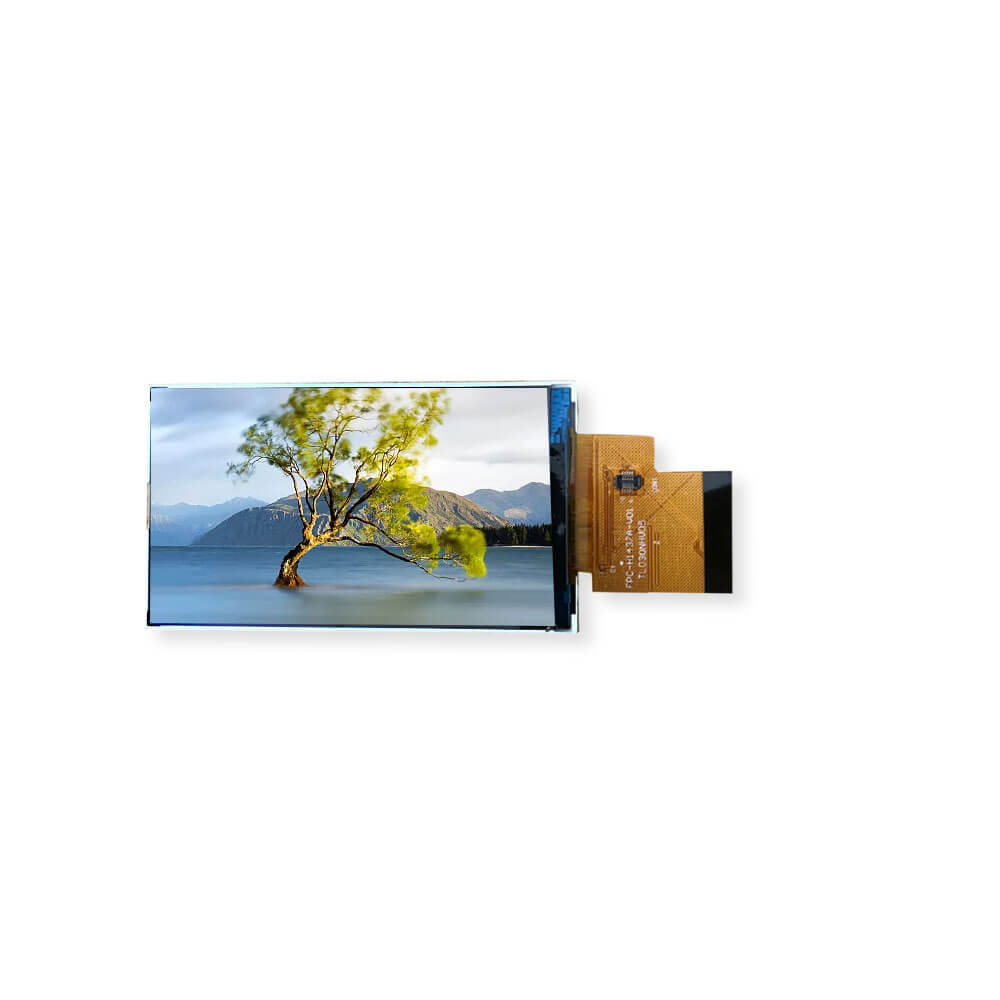

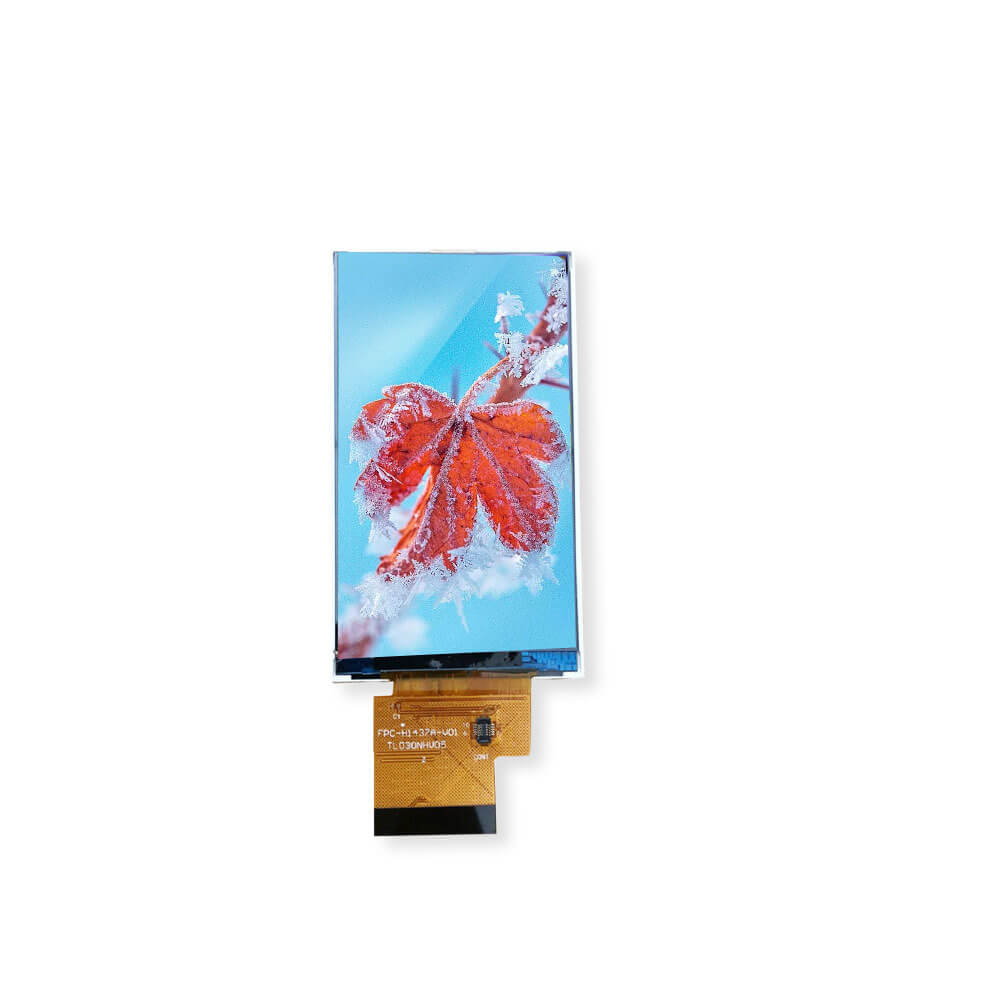

Custom 3 inch screen resolution 360*640 IPS full view screen SPI interface 40pin industrial lcd panel

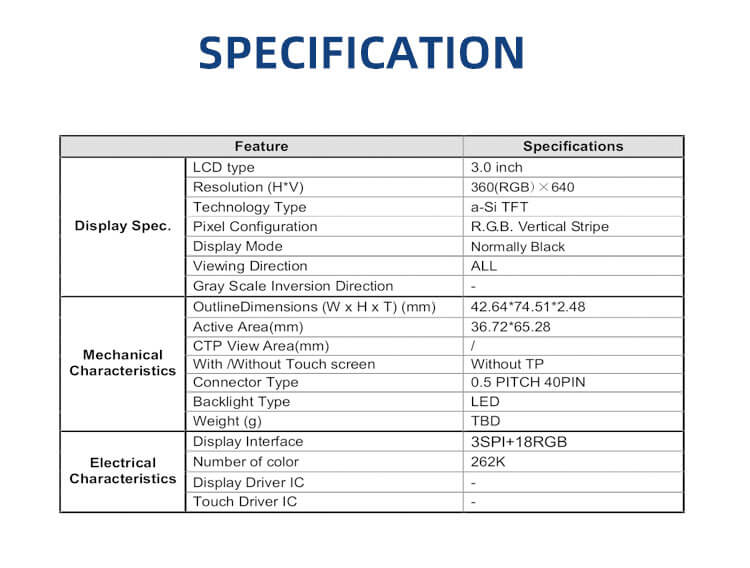

Part No.:ET030NH20-G
Size:3″ inch
Resolution:360x640
Panel Interface:3SPI+18RGB
Display mode:Normal Black

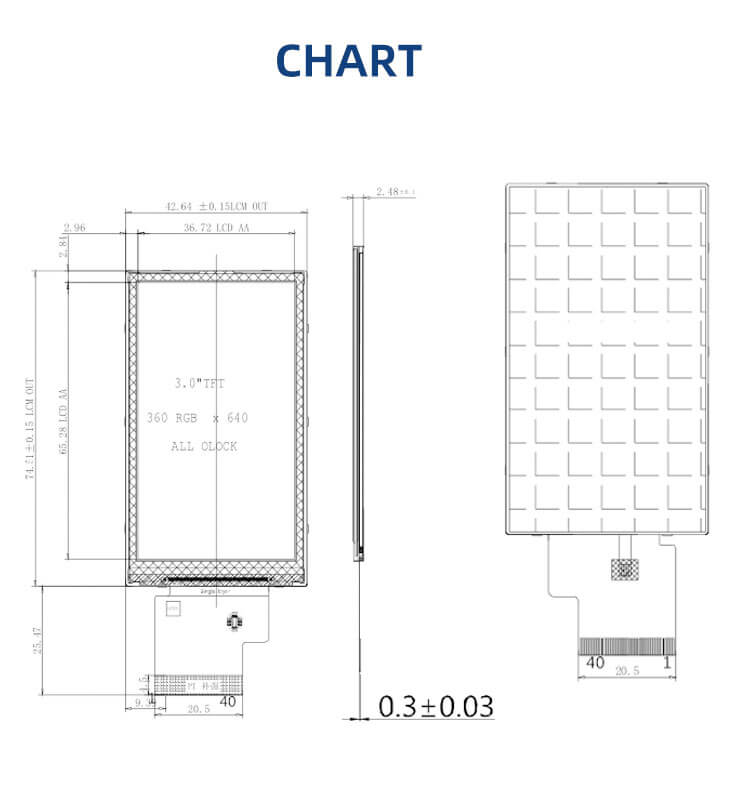

Outline Dimension:42.64x74.51x2.48
Active Area:36.72mmx65.28mm
Viewing Angle L/R/U/D:All
Brightness（cd/m2）:/
Operation / Storage Temp:-20~+60(C) / -30~+70(C)
Touch:no

Product Description
