COM57T5M08KRC Ortustech 5.7 Inch Blanview Display 640×480 Parallel RGB TFT LCD Display With 4-wire Resistive Touch

COM57T5M08KRC Ortustech 5.7 Inch Blanview Display 640×480 Parallel RGB TFT LCD Display With 4-wire Resistive Touch Overview

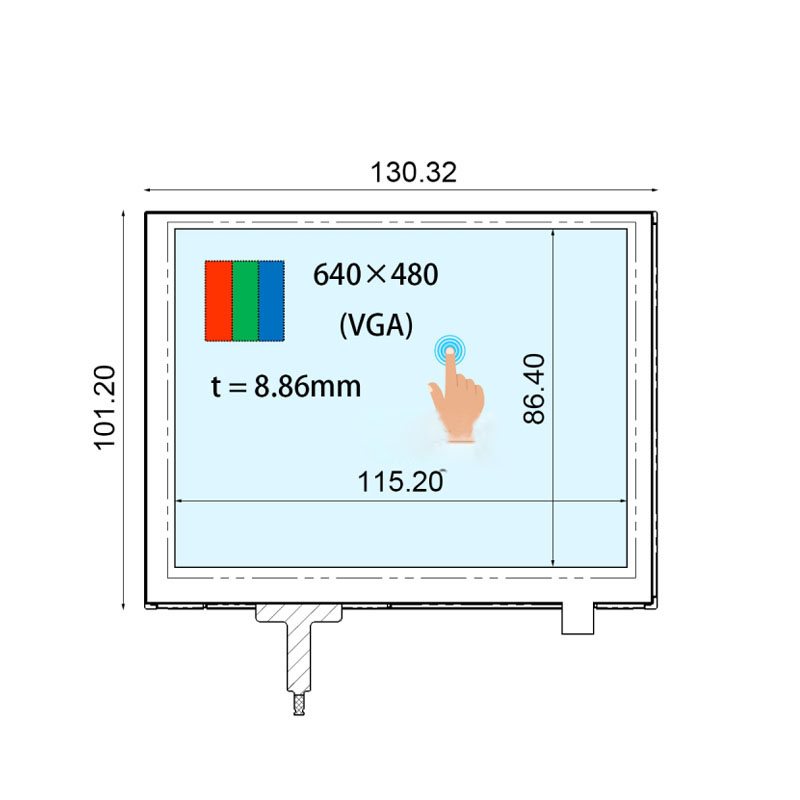

COM57T5M08KRC is a 5.7 inch diagonal a-Si TFT-LCD display screen with a built-in WLED backlight, With LED Driver, touchscreen 4-wire Resistive Touch. COM57T5M08KRC supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 130.32(W)×101.2(H)×9.16(D) mm, viewing area size of 119.15(W)×90.51(H) mm, net weight of 162g (Typ.). As a TN, Normally White, Transmissive LCM product, COM57T5M08KRC can provides 340 cd/m² display brightness 400:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. COM57T5M08KRC utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 45 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Ortustech Transflective Display Advantage

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application

Ortustech Transflective Display Production and Manufacturing
