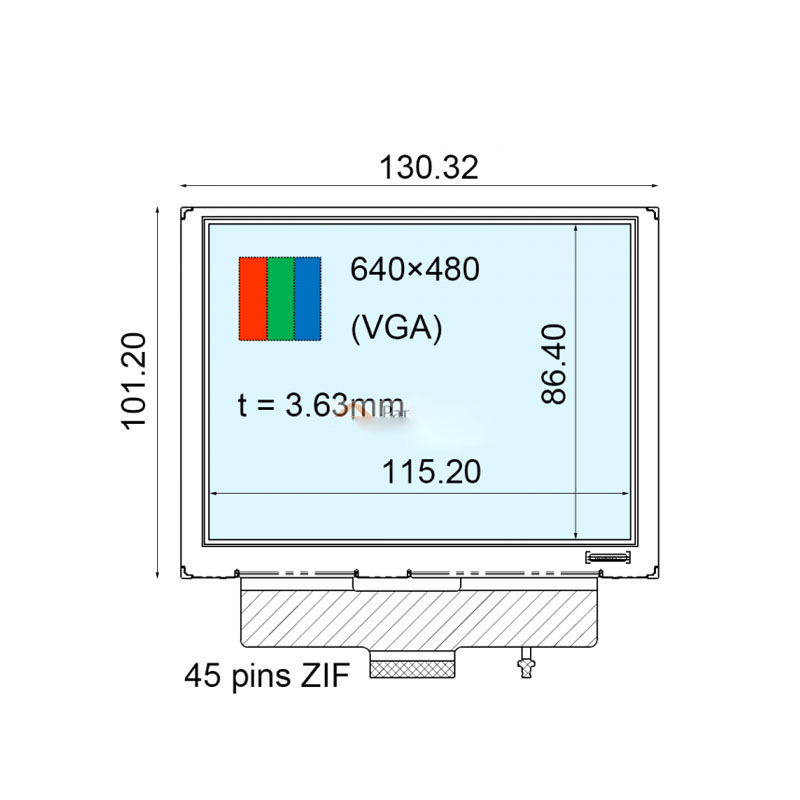

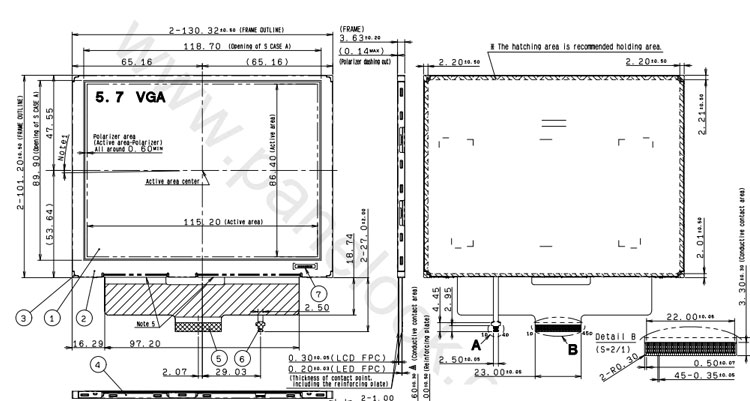

COM57T5133KLC supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 115.2(W)×86.4(H) mm, outline size of 130.32(W)×101.2(H)×3.83(D) mm, viewing area size of 118.7(W)×89.9(H) mm, with surface treament of Hard coating (3H), net weight of 85.0g (Typ.). As a TN, Normally White, Transmissive LCM product, COM57T5133KLC can provides 430 cd/m² display brightness 400:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 9S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM57T5133KLC utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 45 pins FPC with power supply voltage of 3.3/12.0/21.0/-7.0V (Typ.)(VDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.
