5.1"-7" LCD Display (5.7")

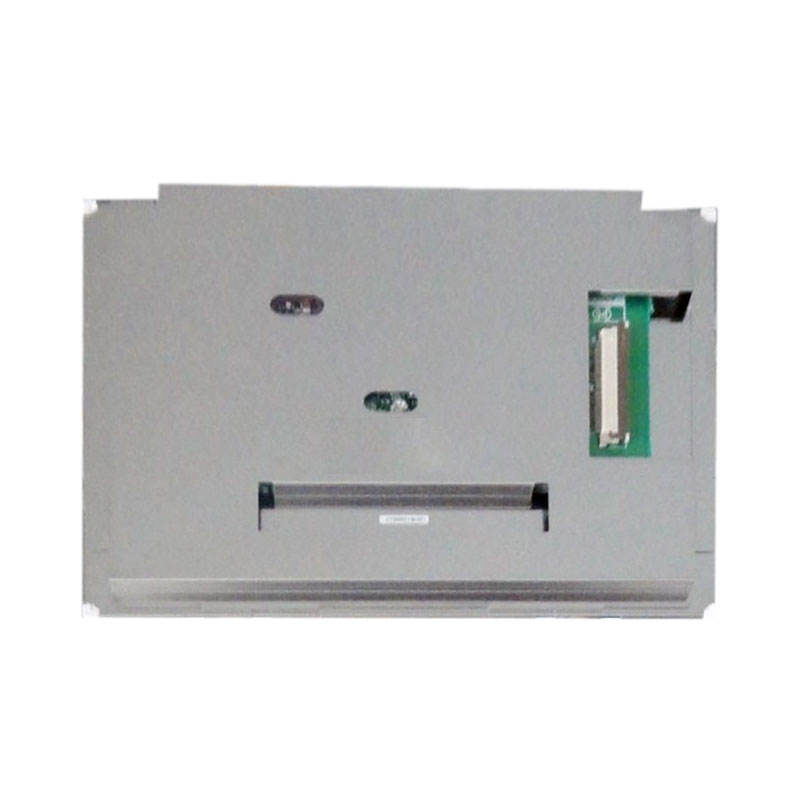

COM57H5M10XRC Ortustech 5.7 Inch Blanview Display 640×480 Parallel RGB TFT LCD Display With 4-wire Resistive Touch

Part No.:COM57H5M10XRC
Size:5.7″ inch
Resolution:640x480
Panel Interface:Parallel RGB (1 ch,6-bit)
Display mode:Transflective
Outline Dimension:/
Active Area:115.2x86.4mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:360cd/m²
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

COM57H5M10XRC Ortustech 5.7 Inch Blanview Display 640×480 Parallel RGB TFT LCD Display With 4-wire Resistive Touch Overview

COM57H5M10XRC is a 5.7" diagonal a-Si TFT-LCD display panel with an integral WLED backlight system, With LED Driver , touchscreen 4-wire Resistive Touch. It features an operating temperature range of -20 ~ 70°C , a storage temperature range of -30 ~ 80°C . It's general features are summarized in the following: With Touch, Transflective, WLED Backlight, Life ≥ 50K hours, With LED Driver, U/D,L/R Reverse , Blanview. Based on its features, Panelook recommend that this model be applied to Industrial etc.
COM57H5M10XRC Ortustech 5.7 Inch Blanview Display 640×480 Parallel RGB TFT LCD Display With 4-wire Resistive Touch

Ortustech Transflective Display Advantage

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support
