COM50H5N17ULC Ortustech 5 Inch 720x1280 Transflective TFT LCD Display

COM50H5N17ULC Overview

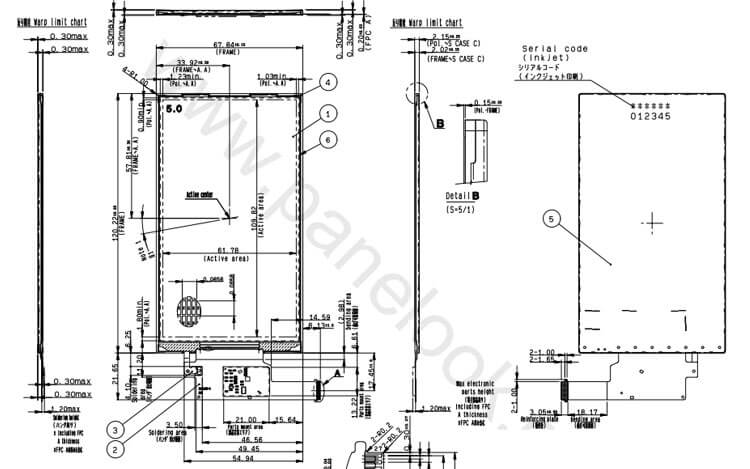

COM50H5N17ULC is a 5.0 inch diagonal a-Si TFT-LCD display screen with a built-in WLED backlight, without backlight driver, without touch screen. COM50H5N17ULC supports display 720(RGB)×1280 (WXGA) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 296 PPI. As for mechanical detail, it features active area of 61.776(W)×109.824(H) mm, outline size of 67.84(W)×120.22(H)×2.4(D) mm, with surface treament of Hard coating (2H), net weight of 34.0g (Typ.). As a VA, Normally Black, Transflective LCM product, COM50H5N17ULC can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 3:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 100 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC).

COM50H5N17ULC Application
For Industrial.

More 5 Inch Transflective LCD Display For Reference
ET050TR01-TV (480x800, CPU, 160nits, -20~70°C, 70.8x118.75mm)
COM50H5N15ULC (800x480, LVDS, 1200nits, -30~85°C, 124x80.82mm)
ET050TR01-K (800x480, TTL, 280nits, -20~70°C, 120.7x75.9mm)
COM50H5N25ULC (800x480, LVDS, 1200nits, -30~85°C, 124x80.82mm)
COM50H5N23UTC (800x480, LVDS, 500nits, CTP(Air))
COM50H5N17ULC (720x1280, MIPI, 400nits, -20~70°C, 67.84x120.22mm)
LS050K7SX01 (720x1280, MIPI, 400nits, -20~70°C, 67.2x120.77mm)
