4.8 Inch Transflective LCD Display Overview

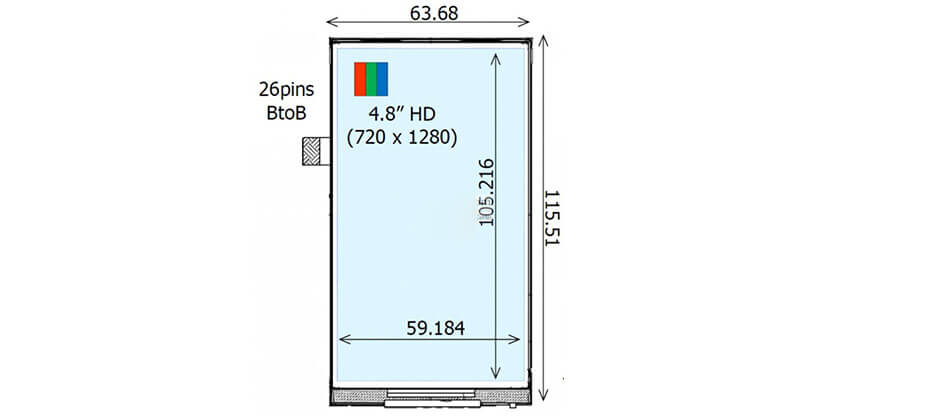

COM48H4P03ULC supports display 720(RGB)×1280 (WXGA) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 309 PPI. It features active area of 59.184(W)×105.216(H) mm, outline size of 63.68(W)×115.51(H)×2.47(D) mm, with surface treament of Hard coating (2H), net weight of 25.2g (Typ.). As a VA, Normally Black, Transflective LCM product, COM48H4P03ULC can provides 300 cd/m² display brightness 700:1 transimissive contrast ratio, 3:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 9S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. COM48H4P03ULC utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 26 pins Connector with power supply voltage of 1.8/2.9V (Typ.)(IOVCC/VCC).

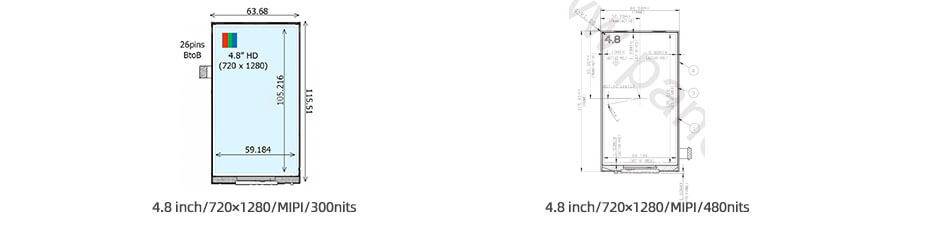

More 4.8 Inch Transflective LCD Display For Reference
COM48H4P03ULC (720x1280, MIPI, 300nits, -20~70°C, 63.68x115.51mm)
COM48H4P07ULC (720x1280, MIPI, 480nits, -20~70°C, 64.58x115.41mm)
