COM35H3P49XTC Ortustech 3.5 Inch Transflective Display 240×320 Parallel RGB Sunlight Readable TFT LCD Display With 4-wire Resistive Touch

COM35H3P49XTC Ortustech 3.5 Inch Transflective Display 240×320 Parallel RGB Sunlight Readable TFT LCD Display With 4-wire Resistive Touch Overview

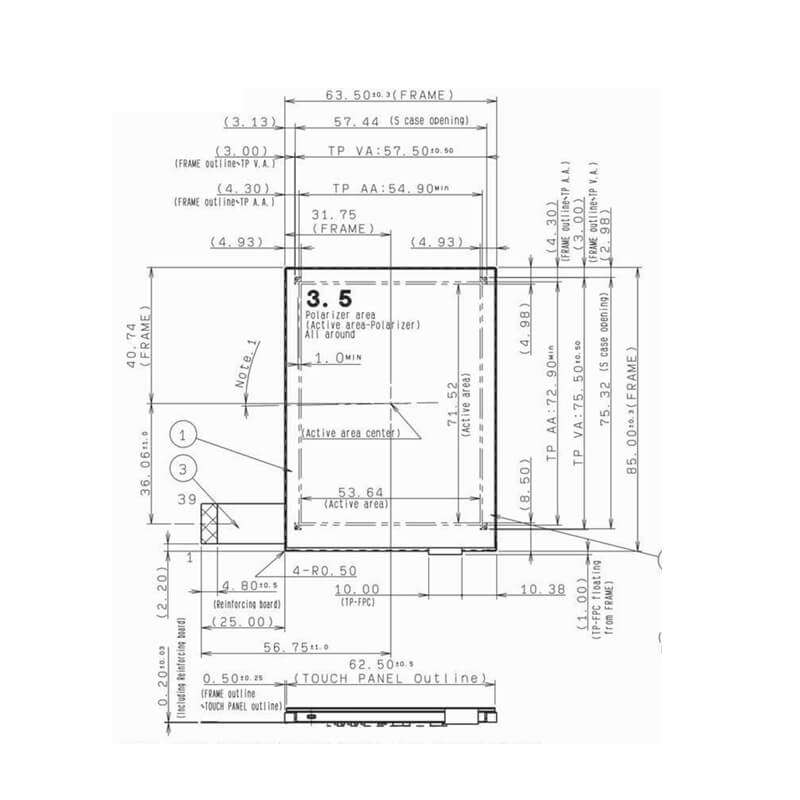

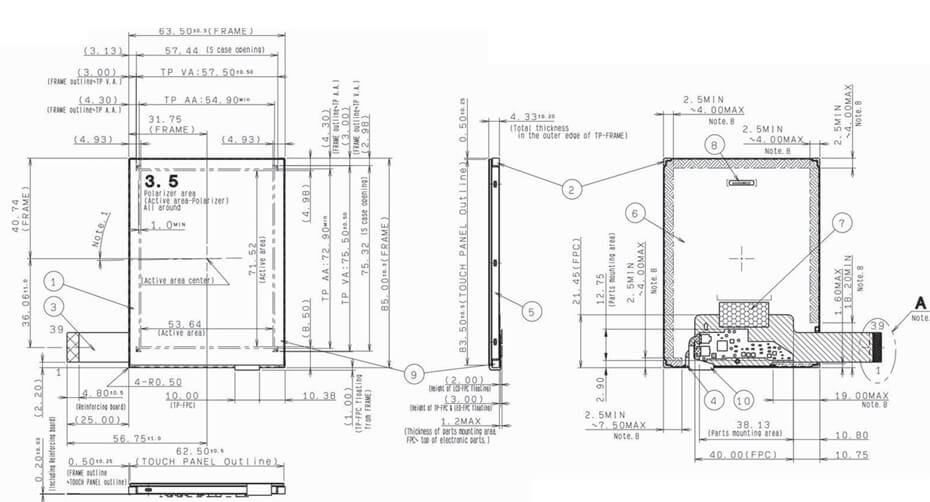

COM35H3P49XTC is a 3.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touchscreen 4-wire Resistive Touch.COM35H3P49XTC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 53.64(W)×71.52(H) mm, outline size of 63.5(W)×85(H) mm, with surface treament of Hard coating (3H), net weight of 43.5g (Typ.). As a TN, Normally White, Transflective LCM product, COM35H3P49XTC can provides 190 cd/m² display brightness 400:1 transimissive contrast ratio, 1.9:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM35H3P49XTC utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 39 pins FPC with power supply voltage of 3.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

Ortustech Transflective Display Advantage

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application

Ortustech Transflective Display Production and Manufacturing
