0.48"-5" LCD Display (2.7")

COM27H2P41UTC Ortustech 2.7 Inch TFT LCD Display 240x320 Transflective LCD Panel With 4-wire Resistive Touch

Part No.:COM27H2P92UTC
Size:2.7″ inch
Resolution:240x320
Panel Interface:CPU/RGB
Display mode:Transflective

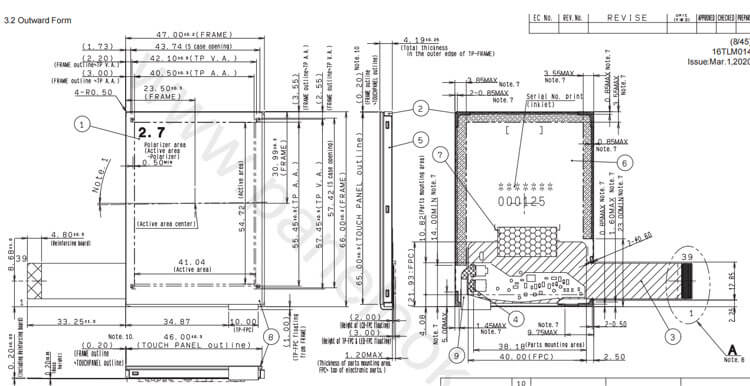

Outline Dimension:47(H)x66(V)mm
Active Area:41.04(H)x54.72(V)mm
Viewing Angle L/R/U/D:80/80/80/80 (Min.)
Brightness（cd/m2）:280(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

Overview
COM27H2P92UTC is a 2.7 inch diagonal a-Si TFT-LCD display screen product from Ortustech, with a built-in WLED backlight, without backlight driver, touchscreen 4-wire Resistive Touch.COM27H2P92UTC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 41.04(W)×54.72(H) mm, outline size of 47(W)×66(H)×5.64(D) mm, viewing area size of 43.74(W)×57.42(H) mm, net weight of 25.0g (Typ.). As a VA, Normally Black, Transflective LCM product, COM27H2P92UTC can provides 280 cd/m² display brightness 800:1 transimissive contrast ratio, 2:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 100 (Max.)(Tr+Td) ms.

Application
For andheld & PDA,Industrial.
