0.48"-5" LCD Display (3.2")

3.2 Inch Capacitive Touch Screen FT5216MG7 Multi-touch P+G Structure Capacitive Touch Screen For Industrial Control Industrial Vehicle Medical Handheld

Part No.:ET032CTP01
Size:3.2″ inch
Resolution:Optional
Panel Interface:I2C
Display mode:PCAP
Outline Dimension:55x77.2mm
Active Area:54.60x76.80mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-10~60°C / -20~70°C
Touch:yes

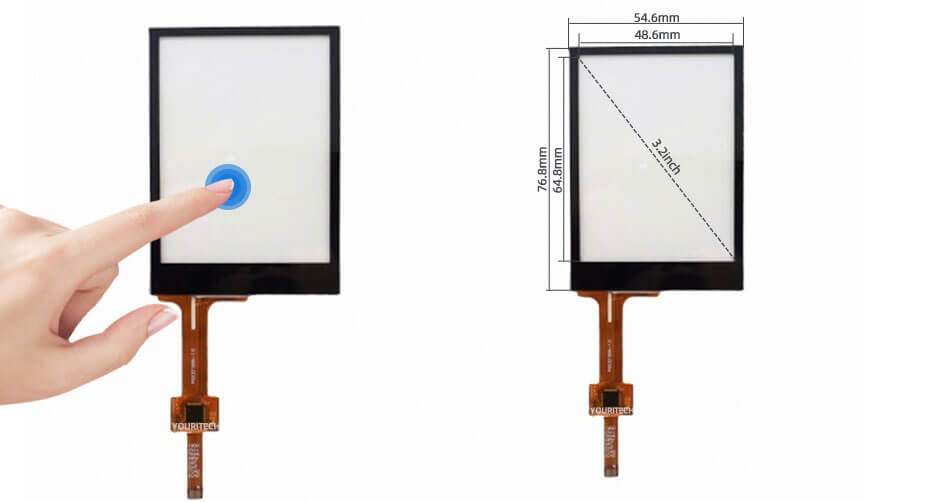

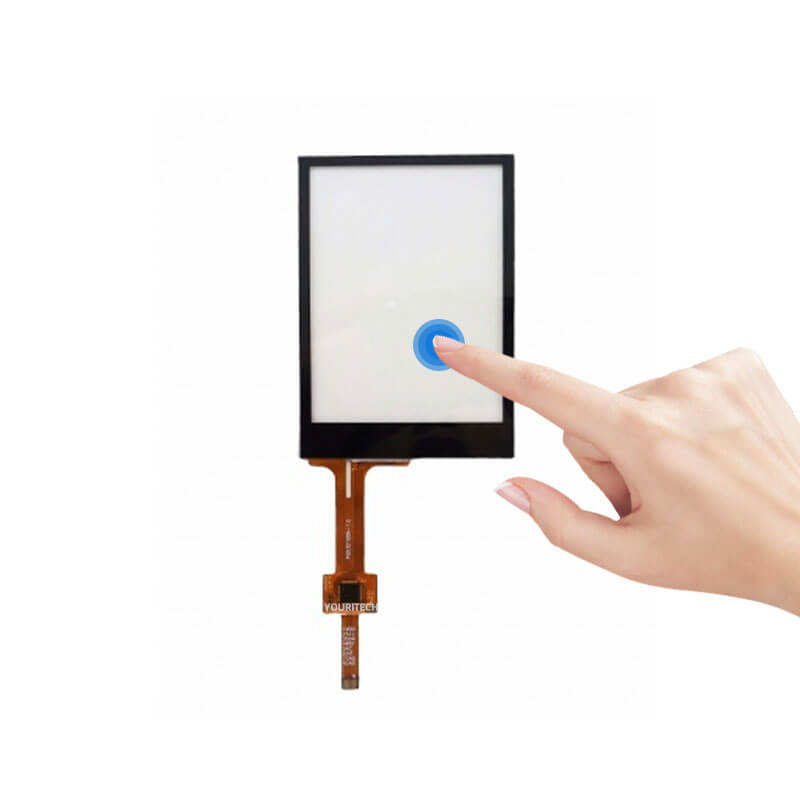

3.2 Inch Capacitive Touch Screen
Appearance thickness: 1.1 mm
Surface hardness: Hard coating (3H)
Touch Points: Multi-touch
Interface Type: I2C
Display Area: 54.60x76.80 mm
Outline Dim.: 55x77.2 mm
Operation Temperature: -10 ~ 60°C
Storage Temperature: -20 ~ 70°C

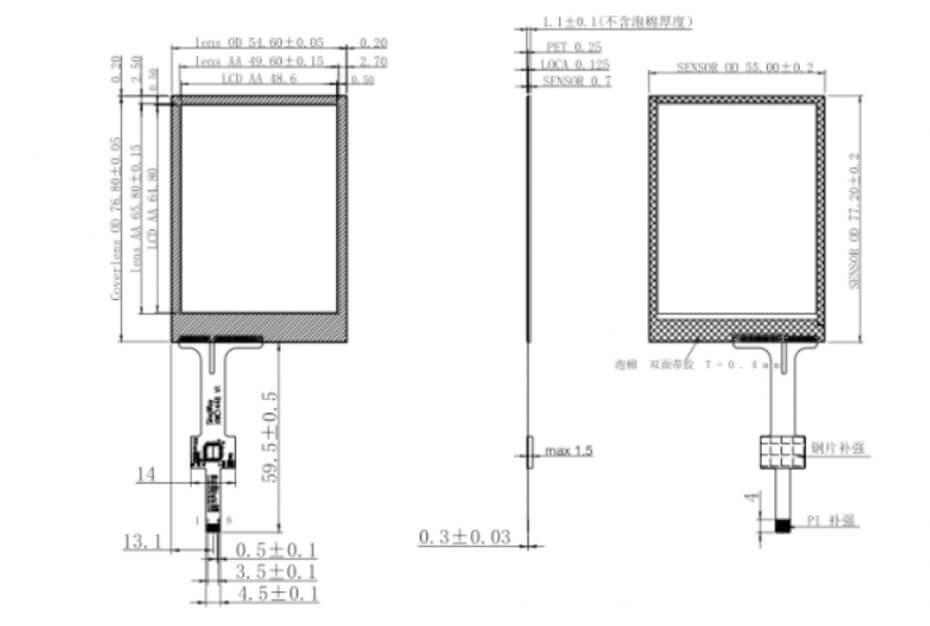

3.2 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
