2.2 Inch High Brightness Display 900nits IPS 640x320 MIPI TFT LCD Display For Handheld PDA

2.2 Inch High Brightness LCD Display Overview

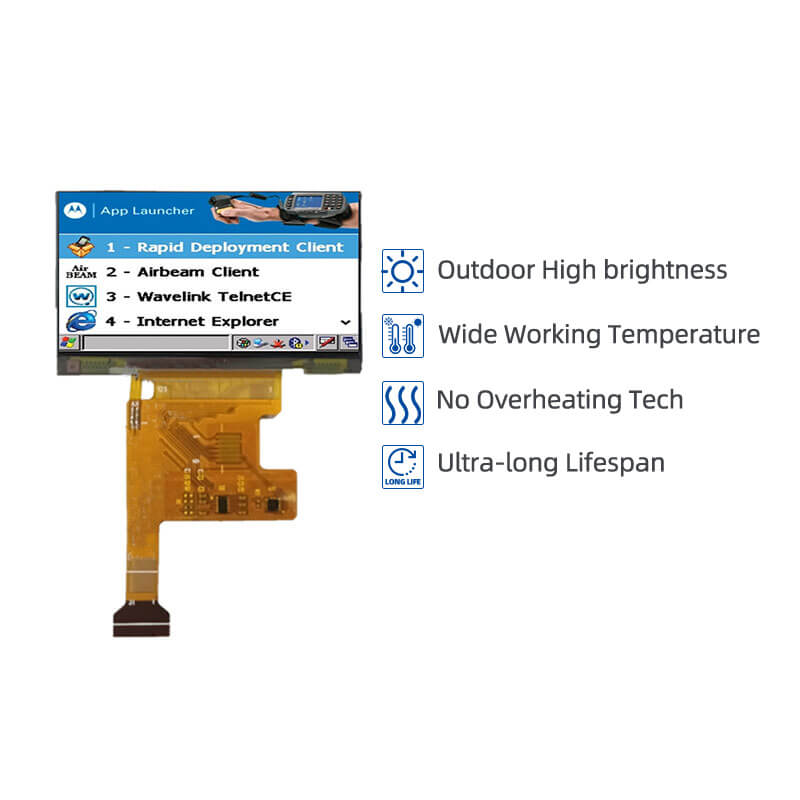

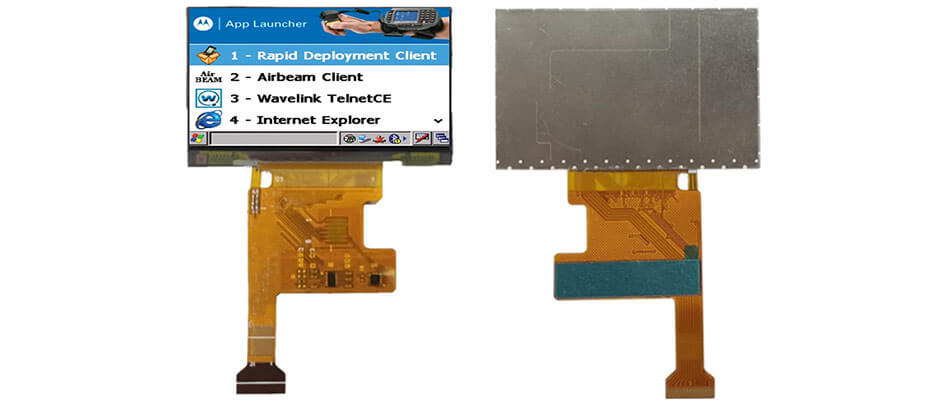

ET022QV01-H is a 2.2-inch diagonal high-brightness IPS TFT LCD display designed for handheld PDAs. It supports a 640×320 resolution with MIPI interface and a transmissive display mode. The active area measures 49.44(W)×25.09(H) mm, with an outline size of 51.94×31.39 mm. ET022QV01-H provides a typical brightness of 900 cd/m², full 80° viewing angles in all directions (L/R/U/D), and operates over a temperature range of –20 °C to 70 °C (storage –30 °C to 80 °C). Touch functionality is not supported.

More 2.2 Inch High Brightness LCD Display For Reference

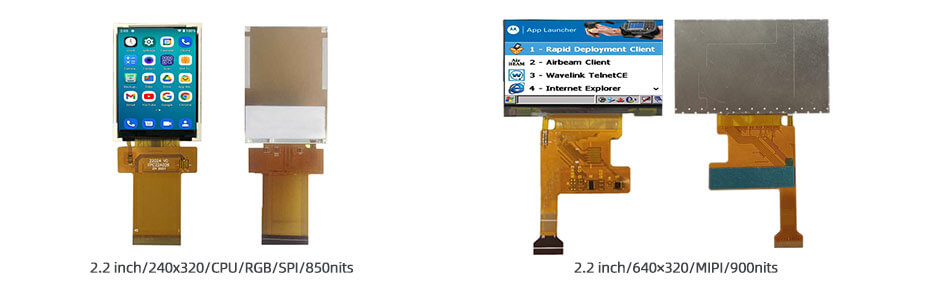

ET022QV01-K (240x320, CPU/RGB/SPI, 850nits, -20~70°C, 41.7x56.16mm)
ET022QV01-H (640x320, MIPI, 900nits, -20~70°C, 51.94x31.39mm)

Outdoor High Brightness Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
