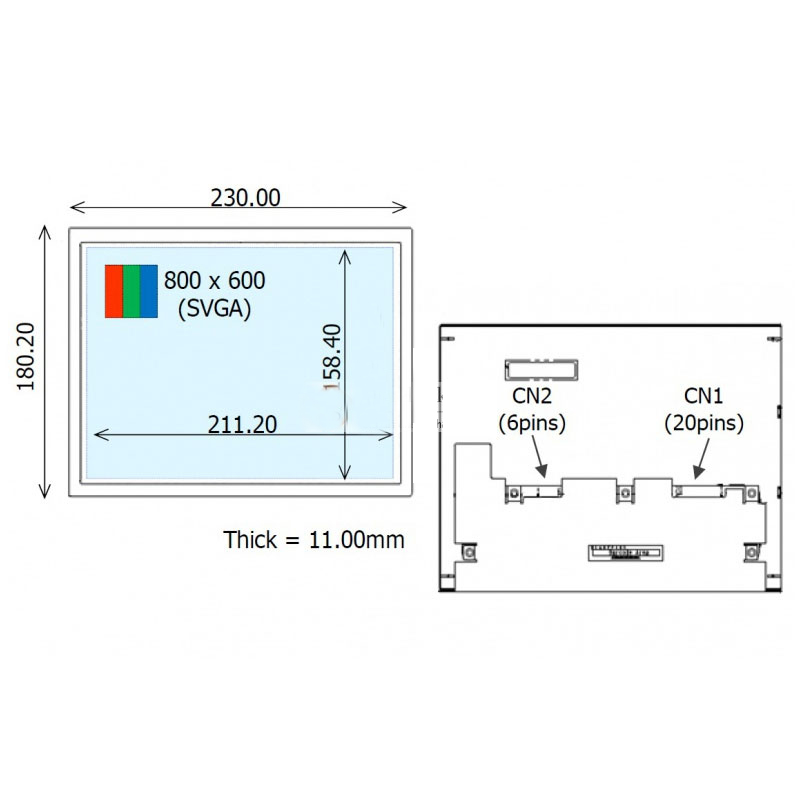

COM104T9M12ESS supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 211.2(W)×158.4(H) mm, outline size of 230(W)×180.2(H)×11.5(D) mm, viewing area size of 215(W)×161.8(H) mm, net weight of TBD. As a FFS, Normally Black, Transmissive LCM product, COM104T9M12ESS can provides 650 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 47% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type, With LED Driver. COM104T9M12ESS utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
