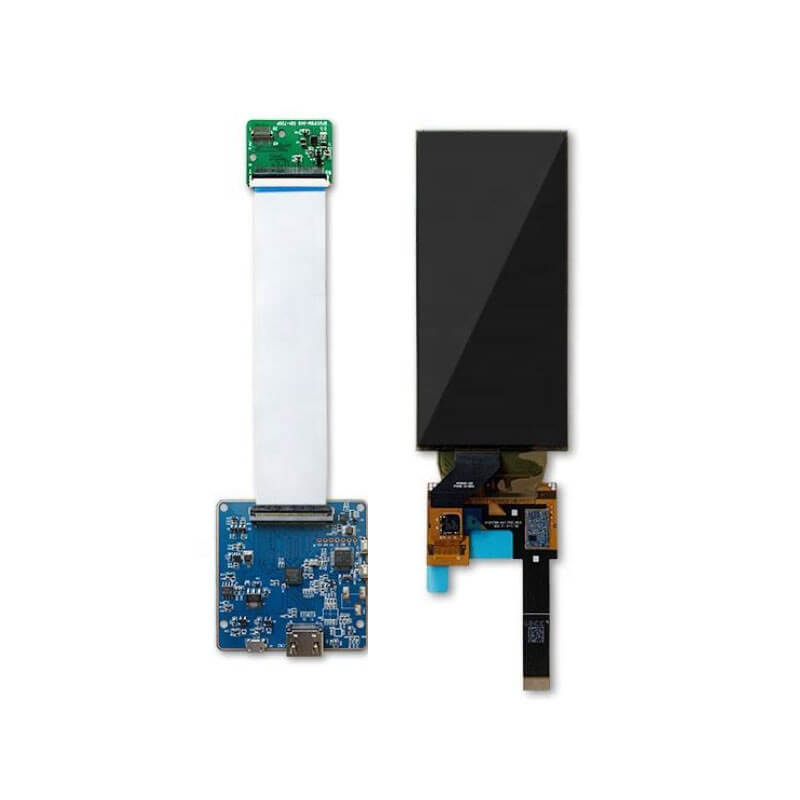

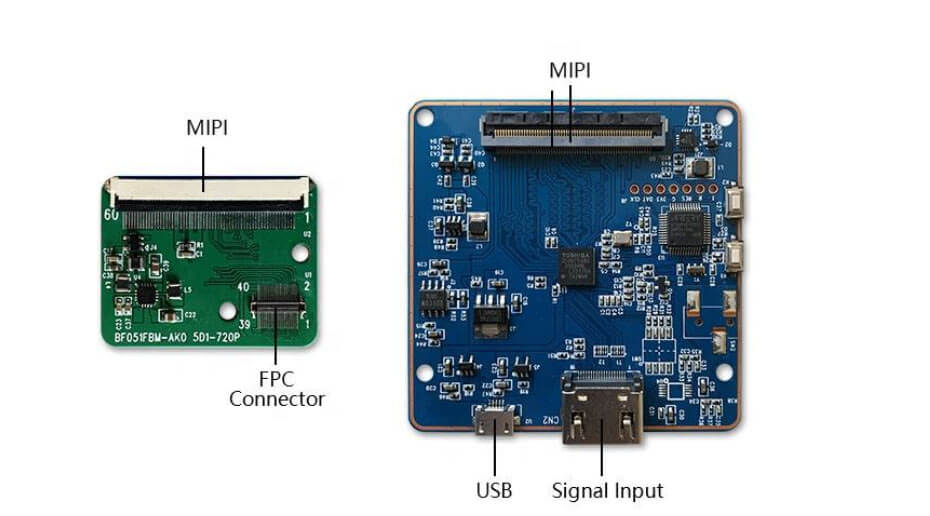

BF051FBM-AK0-7D00 5.1 Inch Flexible AMOLED Display 720x1520 Touch OLED Display With Driver Board

5.1 Inch LCD Display Overview

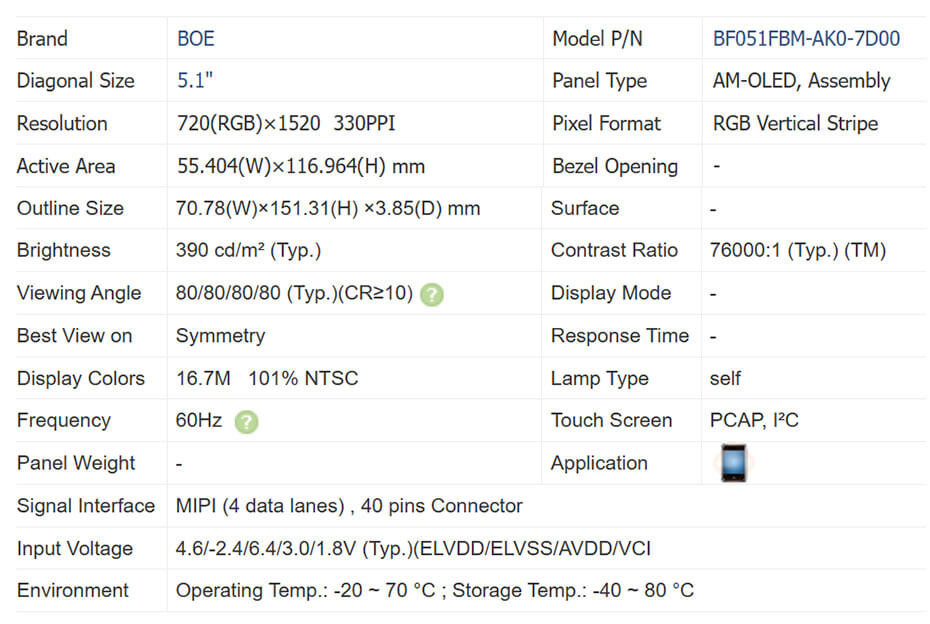

BF051FBM-AK0-7D00 is a 5.1 inch diagonal AM-OLED display screen, it self emiting, touchscreen PCAP. BF051FBM-AK0-7D00 supports display 720(RGB)×1520 with aspect ratio of 1:2 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 330 PPI. As for mechanical detail, it features active area of 55.404(W)×116.964(H) mm, outline size of 70.78(W)×151.31(H)×3.85(D) mm. BF051FBM-AK0-7D00 can provides 390 cd/m² display brightness 76000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry . Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 101% (NTSC). This product emiting itself . BF051FBM-AK0-7D00 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 4.6/-2.4/6.4/3.0/1.8V (Typ.)(ELVDD/ELVSS/AVDD/VCI. It's typical vertical frame rate (Fv) is 60Hz.

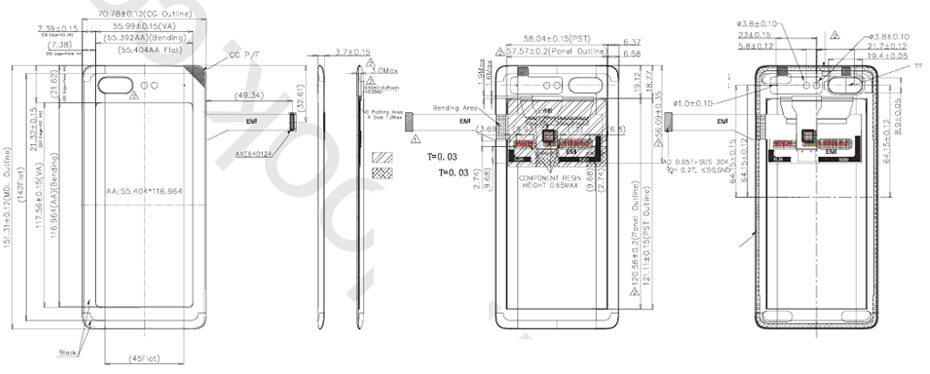

5.1 Inch LCD Display Drawing

PRODUCTION AND MANUFACTURING
