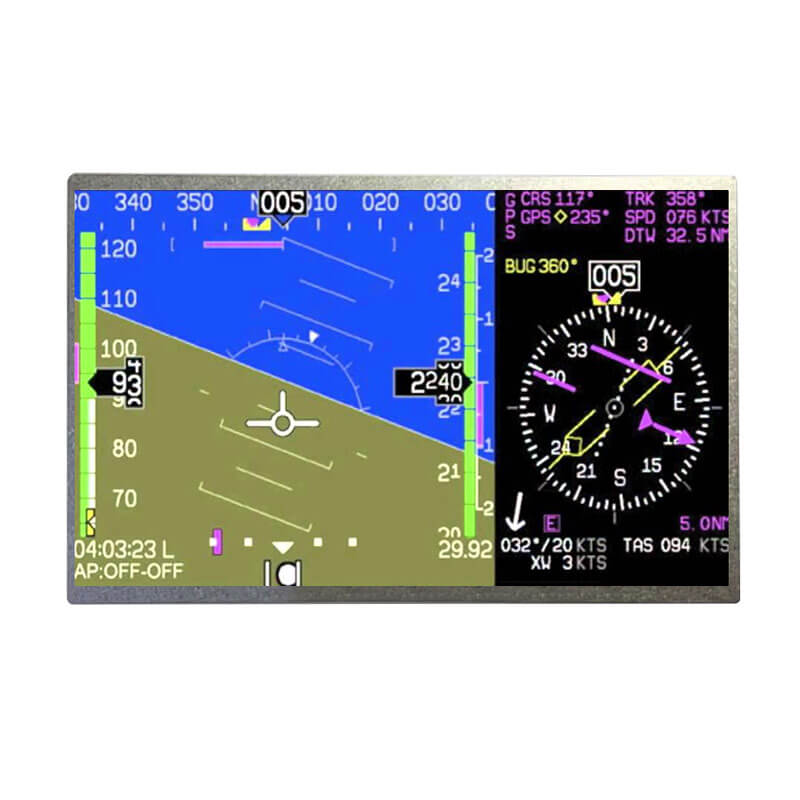

9 Inch TFT LCD Display 800×480 LVDS High Brightness Wide Temperature Display For Aerospace Display

9 Inch Aerospace Display Overview

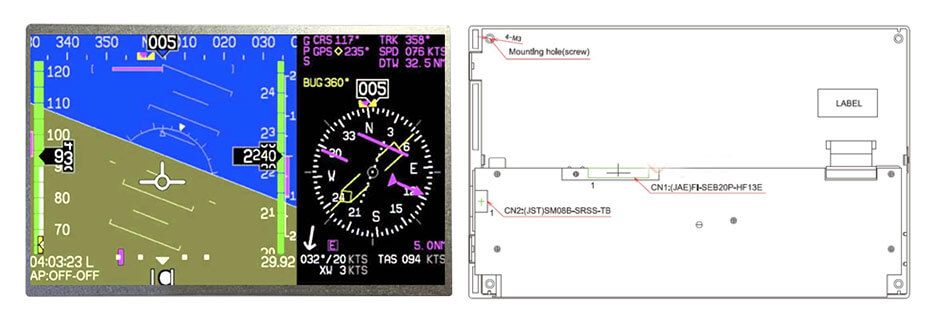

TX23D203VM0BAA supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 196.8(W)×118.08(H) mm, outline size of 218(W)×135(H)×11.45(D) mm, viewing area size of 200(W)×121.28(H) mm, net weight of 330g (Typ.). As a IPS, Normally Black, Transmissive LCM product, TX23D203VM0BAA can provides 1000 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours, With LED Driver. TX23D203VM0BAA utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

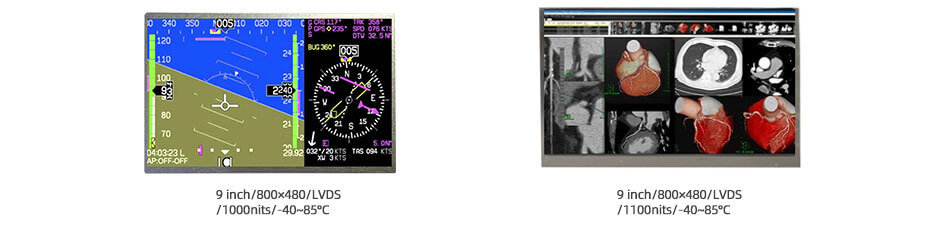

More 9 Inch Aerospace Display For Reference
TX23D203VM0BAA (800×480, LVDS, 1000nits, -40~85°C, 218×135mm)
TM090JDKP01 (1280×720, LVDS, 1100nits, -40~85°C, 211.5×128.08mm)

Key Features of Aerospace, Cockpit and Flight Displays

Advanced Super View Display Technology:
-Superior brightness and contrast
-Wide viewing angles, high resolution, anti-reflective/anti-glare coatings
-High resolution for clear visibility in all conditions

Durability and Longevity:
-Resistant to shock, vibration, and moisture
-Built to meet IP67, Operates in extreme temperatures (e.g., -55°C to +85°C)

Custom Integration:
-Tailored solutions for specific application needs
-Custom sizes, shapes, and interface options
-Seamless integration with existing systems

Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance

Regulatory Compliance:
-Adherence to stringent aerospace and automotive standards
-Certifications ensuring safety and reliability

High Reliability:
-All Industrial-grade components for consistent performance
-Rigorous testing to meet industry demands

Applications For Aerospace Displays

Commercial Aviation
-Primary Flight Displays (PFD)
-Navigation Displays
-Engine Indication and Crew Alerting System (EICAS)
-Interactive touchscreens for flight management and Electronic Flight Bag (EFB) functions

Military & Defense
-Mission computers
-Tactical moving maps
-Sensor feeds (radar/FLIR)
-Flight data in fighters
-Helicopters
-Transport aircraft

Business & General Aviation
-"Glass cockpit" retrofits that replace old CRT screens and analog gauges, moving maps
-Terrain awareness systems (SVS)
-Flight management systems
