7.1"-10.1" LCD Display (8")

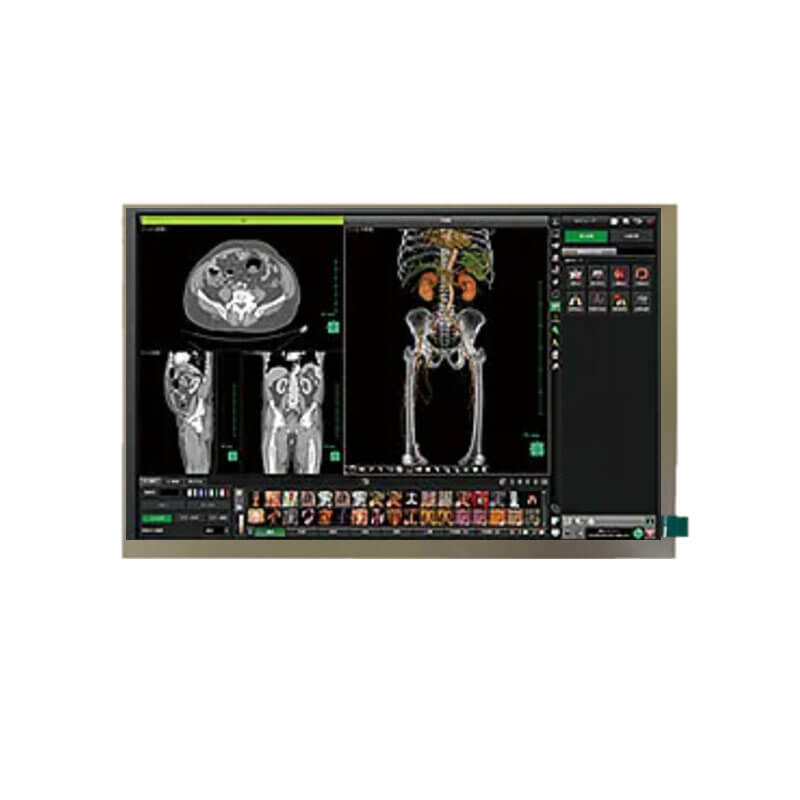

8 Inch Wide Temperature LCD Display 1280×720 LVDS -30°C to 85°C High Brightness 800nits TFT LCD Display

  • Part No.:ET080HD01-XF
  • Size:8″ inch
  • Resolution:1280x720
  • Panel Interface:LVDS
  • Display mode:Transmissive

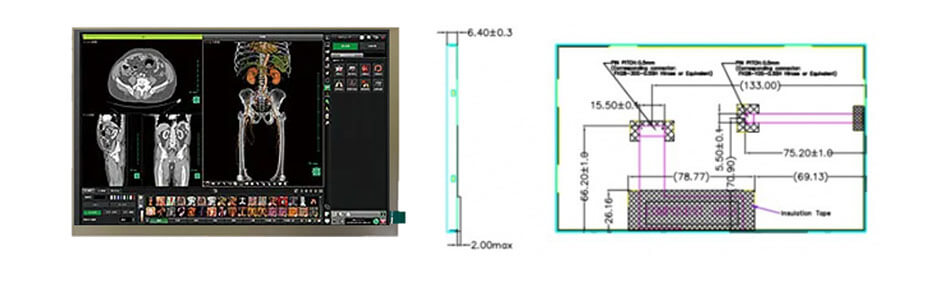

  • Outline Dimension:192.8x116.9mm
  • Active Area:176.64x99.36mm
  • Viewing Angle L/R/U/D:85/85/85/85
  • Brightness(cd/m2):800nits
  • Operation / Storage Temp:-30~85°C / -40~90°C
  • Touch:no


8 Inch Wide Temperature LCD Display Overview
8 Inch Wide Temperature LCD Display 1280×720 LVDS -30°C to 85°C High Brightness 800nits TFT LCD Display.


More 8 Inch Wide Temperature Displays For Reference
ET080WX12-T (LCD
, 1024×768, LVDS, IPS, 300nits, -30~80°C, 174×136mm)
ET080WX01-A (LCD, 800×1280, MIPI, IPS, 500nits, -30~80°C, 114.66×184.16mm)
ET080HD01-XF (LCD, 1280×720, LVDS, IPS, 800nits, -30~85°C, 192.8×116.9mm)
ET080WV01-W (LCD, 800×480, LVDS, IPS, 900nits, -30~85°C, 187.4×118mm)
ET080WU01-RCTT (LCD, 1920×1200, LVDS, IPS, 1700nits, -30~85°C, 191.32×129.24mm, CTP)
ET080WWV-R1 (LCD, 1920×1200, LVDS, IPS, 2000nits, -30~85°C, 179×119mm)
ET080WS01-Z1 (LCD, 1024×600, LVDS, IPS, 1500nits, -30~80°C, 192.8×116.9mm)


Wide Temperature Displays Technology


YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options


Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
