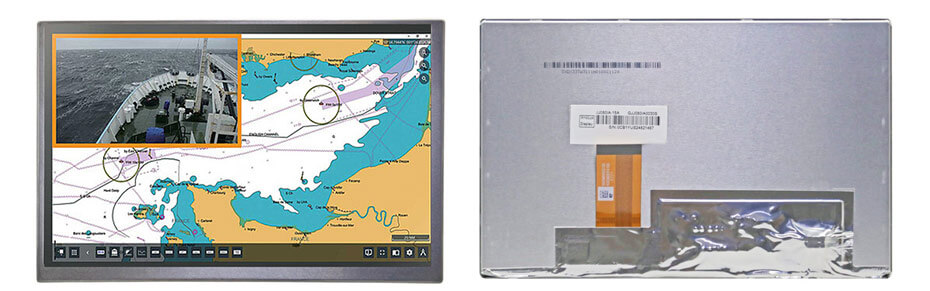

JJ080IA-15A is a 8.0 inch diagonal a-Si TFT-LCD display screen product from Innolux, with a built-in WLED backlight, without backlight driver, without touch screen. JJ080IA-15A supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 174(W)×104.4(H) mm, outline size of 187.4(W)×118(H)×10.2(D) mm, viewing area size of 177.2(W)×107.4(H) mm, with surface treament of Antiglare, net weight of 205g (Typ.). As a AAS, Normally Black, Transmissive LCM product, JJ080IA-15A can provides 920 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 8S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. JJ080IA-15A utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
More 8 Inch Marine Display For Reference
TX20D200VM5BAA (800×480, LVDS, 1000nits, -30~80°C, 189×122mm)
JJ080IA-15A (800×480, LVDS, 920nits, -30~85°C, 187.4×118mm)
P0800WVF1MA00 (800×480, LVDS, 1000nits, -30~80°C, 192×122mm)
DJ080IA-10A (1024×600, LVDS, 750nits, -30~85°C, 192.8×116.9mm)
TX20D207VM0AAA (1280×768, LVDS, 1200nits, -40~85°C, 189.5×119.4mm)
AV080HDM-N19 (1280×720, LVDS, 800nits, -30~85°C, 192.8×116.9mm)
TM080JDKP96 (1280×720, LVDS, 800nits, -30~85°C, 192.8×116.9mm)
ET070WX15-TT (800×1280, MIPI, 800nits, -20~70°C, 121.8×194mm)
ET080WWV-R1 (1920×1200, LVDS, 2000nits, -30~85°C, 179×119mm)
ET080WU11-TT (1920×1200, LVDS, 1000nits, -20~70°C, 181.7×119.8mm)
High Visibility & Optical Performance:
-Optical Bonding, reduce reflections and prevent internal fogging
-High Brightness, ranges from 500 to over 3000 cd/m² for direct sunlight readability
-Wide Dimming Range, adjust down to as low as 0.05 cd/m² for safe night operation on the bridge
Corrosion & Environmental Protection:
-Typically IP65 (dust-tight and protected against water jets) or IP67 (temporarily submersible)
-Salt Fog Resistance, built to resist corrosion from salt-laden air
Night Vision Compatibility (NVIS):
-NVIS Mode, LED backlighting compatible with MIL-STD-3009, switching to specific low-intensity green or red light
-Ultra-Low Luminance, dim to extremely low levels (0.05 cd/m²) to preserve natural night vision
Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance
Rugged & Reliable Design:
-Shock & Vibration Resistance, built to withstand constant engine vibration and wave impacts (MIL-STD-810)
-Wide Temperature Range: Operates in extreme cold (-40°C or lower) to intense heat (85°C+)
Navigation & Chartplotting
-ECDIS (Electronic Chart Display and Information System)
-Radar display
-Chartplotters
-Route monitoring and planning
Integrated Bridge Systems (IBS)
-Centralized multi-function workstations combining radar
-ECDIS
-Conning information
-Alarm management
-Engine monitoring
Fishfinding & Sonar
-Commercial fishing
-Recreational fishfinding
-Underwater structure and bottom mapping
Mission & Combat Systems (Naval)
-Combat Management Systems (CMS)
-Tactical moving maps
-Sensor (radar/EO/IR) integration
-AI-powered target tracking
Performance Monitoring (Racing/High-End)
-True wind speed/direction (Boat speed, heel angle, polar performance, start-line timing)
Entertainment & Lifestyle
-Satellite TV, DVD/multimedia, audio distribution, onboard ambiance control
Security & Surveillance
-CCTV camera monitoring (engine room, deck, dock)
-Man-overboard (MOB) systems
-Remote vessel monitoring via satellite/web
Integrated Vessel Control
-Lighting (CZone), HVAC, tank monitoring, power management, engine diagnostics and control
Corrosion & Environmental Protection:
-Typically IP65 (dust-tight and protected against water jets) or IP67 (temporarily submersible)
-Salt Fog Resistance, built to resist corrosion from salt-laden air
Night Vision Compatibility (NVIS):
-NVIS Mode, LED backlighting compatible with MIL-STD-3009, switching to specific low-intensity green or red light
-Ultra-Low Luminance, dim to extremely low levels (0.05 cd/m²) to preserve natural night vision
Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance
Rugged & Reliable Design:
-Shock & Vibration Resistance, built to withstand constant engine vibration and wave impacts (MIL-STD-810)
-Wide Temperature Range: Operates in extreme cold (-40°C or lower) to intense heat (85°C+)
