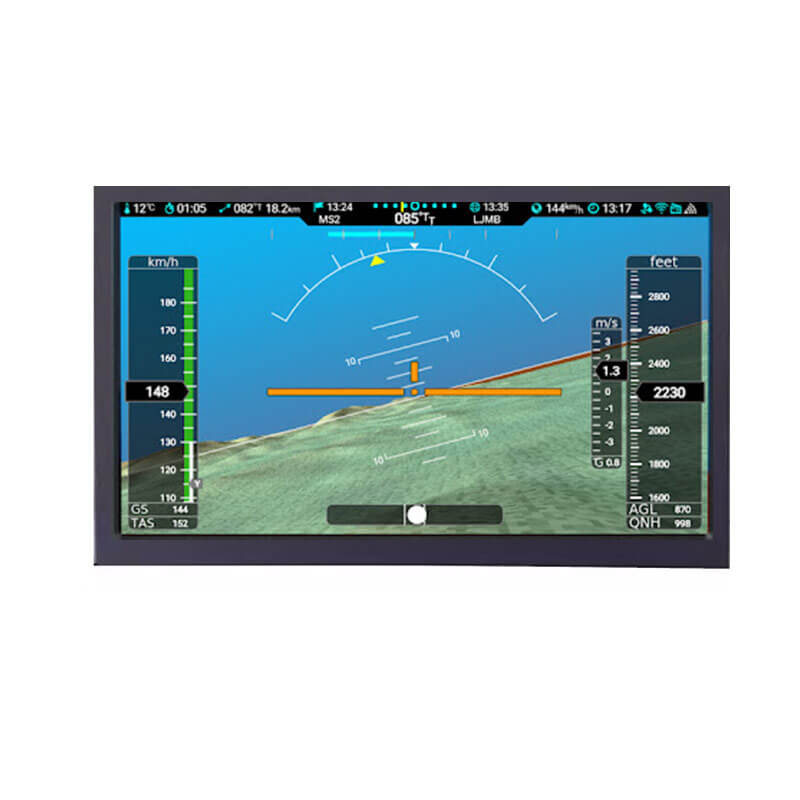

8 Inch TFT LCD Display 1280×720 LVDS High Brightness Wide Temperature Display For Aerospace Display

8 Inch Aerospace Display Overview

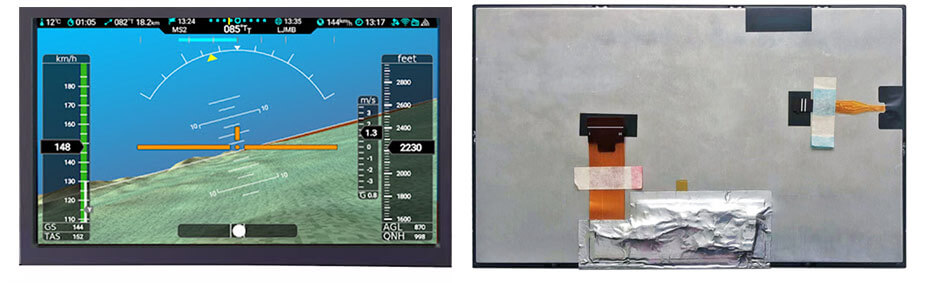

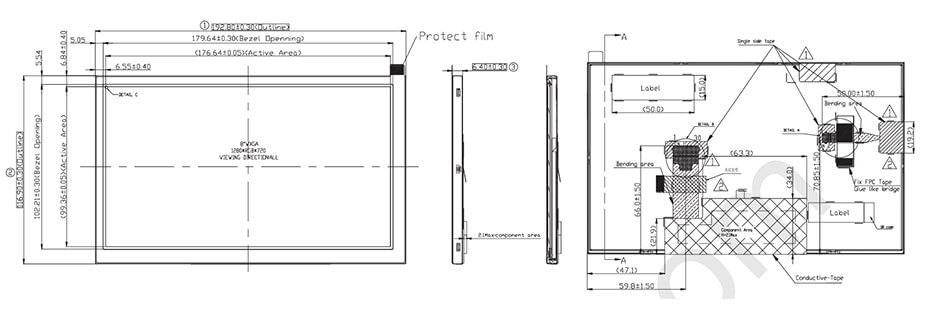

A0800WXF1MB00 supports display 1280(RGB)×720 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 176.64(W)×99.36(H) mm, outline size of 192.8(W)×116.9(H)×8.5(D) mm, viewing area size of 179.64(W)×102.21(H) mm, with surface treament of Hard coating, net weight of 186±9g. As a SFT, Normally Black, Transmissive LCM product, A0800WXF1MB00 can provides 1200 cd/m² display brightness 1300:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 73% (NTSC). This product adopted 6S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. A0800WXF1MB00 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3V (Typ.).

More 8 Inch Aerospace Display For Reference
DJ080IA-10A (1024×600, LVDS, 750nits, -30~85°C, 192.8×116.9mm)
A0800WXF1MB00 (1280×720, LVDS, 1200nits, -30~85°C, 192.8×116.9mm)
TX20D207VM0AAA (1280×768, LVDS, 1200nits, -40~85°C, 189.5×119.4mm)
ET080WWV-R1 (1920×1200, LVDS, 2000nits, -30~85°C, 179×119mm)
TX20D208VM0BAA (800×480, LVDS, 1200nits, -40~85°C, 190.8×120.5mm)
P0800WVF1MA00 (800×480, LVDS, 1000nits, -30~80°C, 192×122mm

Key Features of Aerospace, Cockpit and Flight Displays

Advanced Super View Display Technology:
-Superior brightness and contrast
-Wide viewing angles, high resolution, anti-reflective/anti-glare coatings
-High resolution for clear visibility in all conditions

Durability and Longevity:
-Resistant to shock, vibration, and moisture
-Built to meet IP67, Operates in extreme temperatures (e.g., -55°C to +85°C)

Custom Integration:
-Tailored solutions for specific application needs
-Custom sizes, shapes, and interface options
-Seamless integration with existing systems

Touchscreen Solutions:
-Ruggedized for gloved operation, Multiple touch technologies (resistive, capacitive, optical)
-Configurations tailored to operational requirements
-Reliable and responsive touch performance

Regulatory Compliance:
-Adherence to stringent aerospace and automotive standards
-Certifications ensuring safety and reliability

High Reliability:
-All Industrial-grade components for consistent performance
-Rigorous testing to meet industry demands

Applications For Aerospace Displays

Commercial Aviation
-Primary Flight Displays (PFD)
-Navigation Displays
-Engine Indication and Crew Alerting System (EICAS)
-Interactive touchscreens for flight management and Electronic Flight Bag (EFB) functions

Military & Defense
-Mission computers
-Tactical moving maps
-Sensor feeds (radar/FLIR)
-Flight data in fighters
-Helicopters
-Transport aircraft

Business & General Aviation
-"Glass cockpit" retrofits that replace old CRT screens and analog gauges, moving maps
-Terrain awareness systems (SVS)
-Flight management systems
